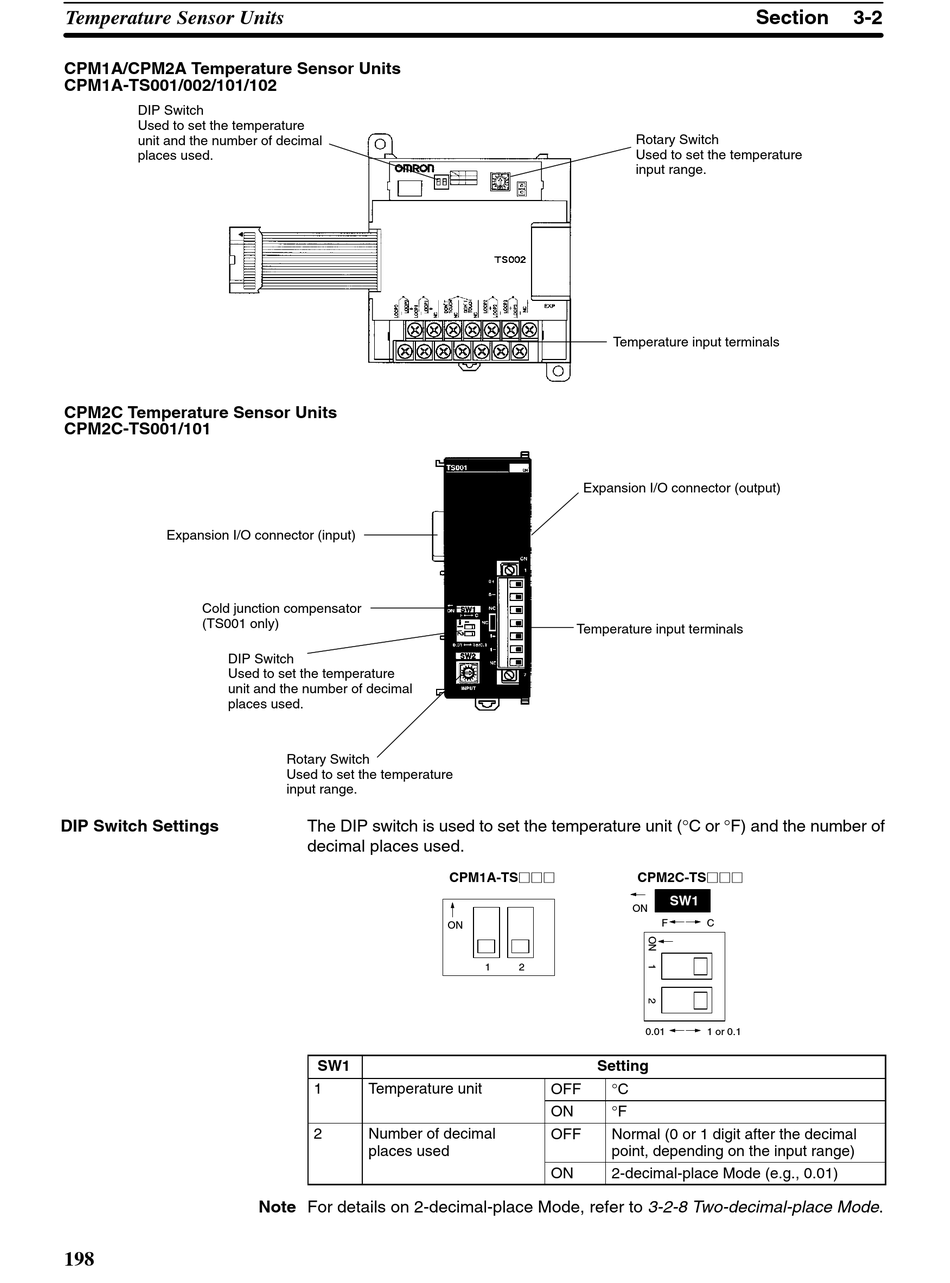

Omron CPM1 - PROGRAMING MANUAL 02-2001 Programming Manual page 218

Temperature Sensor Units
CPM1A/CPM2A Temperature Sensor Units
CPM1A-TS001/002/101/102
DIP Switch
Used to set the temperature
unit and the number of decimal
places used.
CPM2C Temperature Sensor Units
CPM2C-TS001/101
Expansion I/O connector (input)
Cold junction compensator
(TS001 only)
DIP Switch
Used to set the temperature
unit and the number of decimal
places used.
DIP Switch Settings
198
Rotary Switch
Used to set the temperature
input range.
The DIP switch is used to set the temperature unit ( C or F) and the number of
decimal places used.
SW1
1 Temperature unit p
2 Number of decimal
p aces used places used
Note For details on 2-decimal-place Mode, refer to 3-2-8 Two-decimal-place Mode.
Temperature input terminals
Expansion I/O connector (output)
Temperature input terminals
CPM1A-TSjjj
ON
1 2
Setting
OFF C
ON F
OFF Normal (0 or 1 digit after the decimal
point, depending on the input range)
ON 2-decimal-place Mode (e.g., 0.01)
Section
Rotary Switch
Used to set the temperature
input range.
CPM2C-TSjjj
SW1
ON
F C
0.01 1 or 0.1
3-2
