CPM2A/CPM2C High-speed Counters
Up/Down Pulse Input Mode

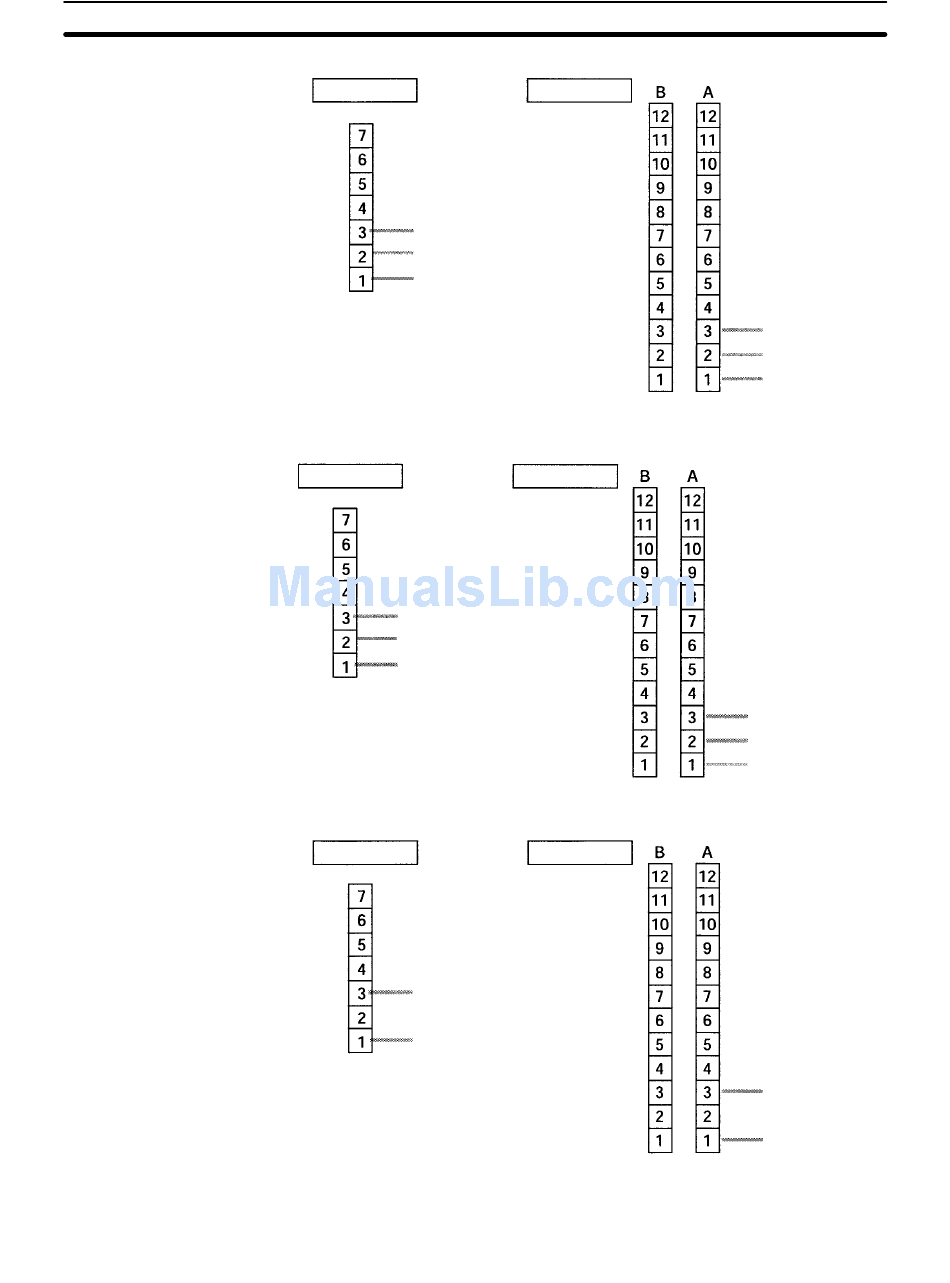

Input terminals
00002: Reset input
00001: CCW input
00000: CW input
Pulse + Direction Input Mode
Input terminals
00002: Reset input
00001: Direction input
00000: Pulse input
Increment Mode
Input terminals
00002: Reset input
00000: Pulse input
When phase-Z and reset inputs are not used, 00002 can be used as an ordinary
input.
Input connector
(See above note.)
Input connector
(See above note.)
Input connector
(See above note.)
Section 2-2
00002: Reset input
00001: CCW input
00000: CW input
00002: Reset input
00001: Direction input
00000: Pulse input
00002: Reset input
00000: Pulse input
55
