CPM2A/CPM2C Pulse Output Functions
100

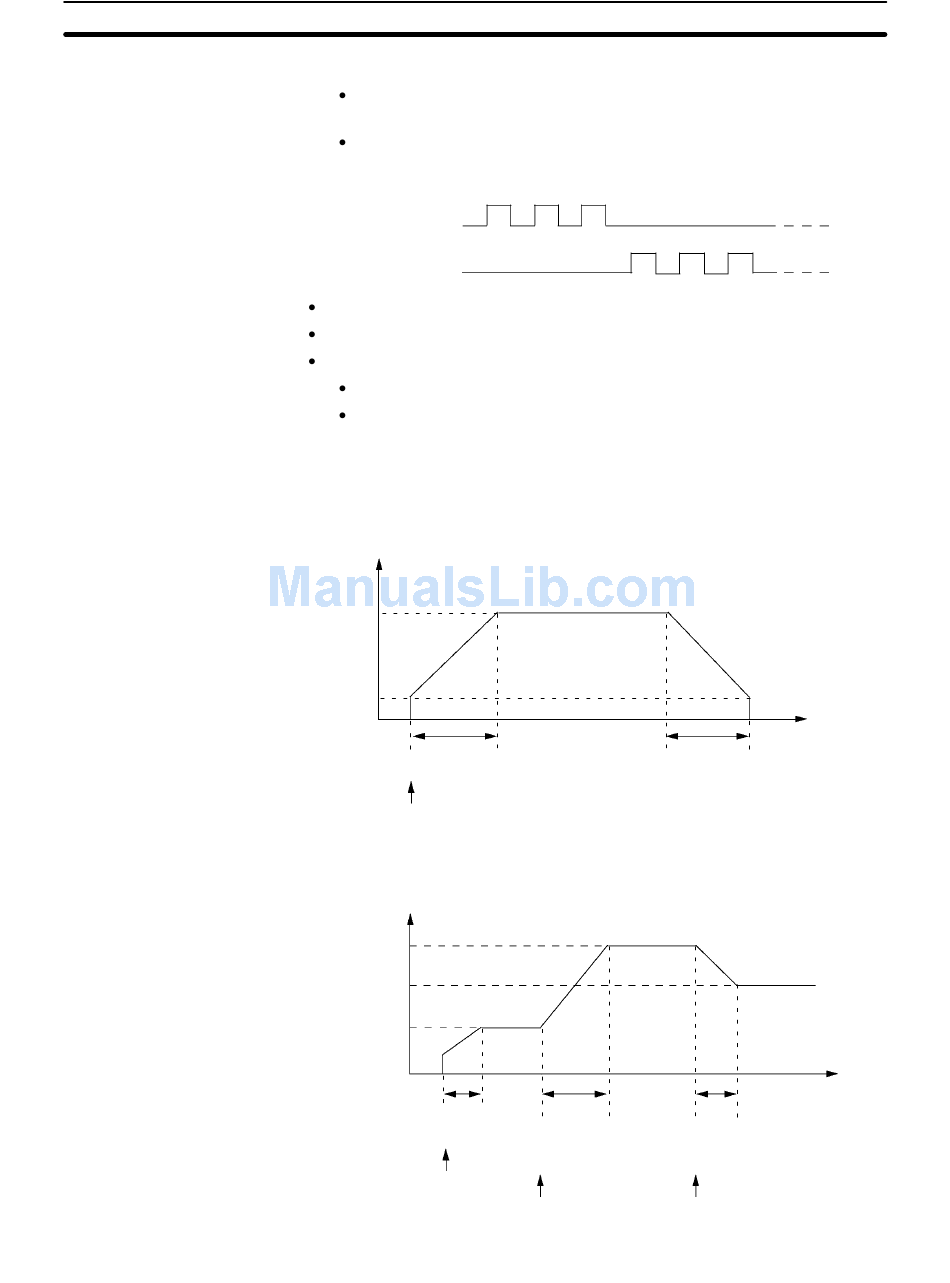

Up/Down Pulse Outputs
For CW output:
Pulses output from output number 01000 (Word 010, bit 00).
For CCW output:
Pulses output from output number 01001 (Word 010, bit 01).
01000
CW operation
01001
CCW operation
Output mode: Continuous and Independent
Number of pulses: 1 to 16,777,215
Instructions: PULS(65) and ACC(––)
With PULS(65), the number of pulses is set (in independent mode only).
With ACC(––), the output mode, starting frequency, target frequency, and
acceleration/deceleration rate are set, and the pulse outputs are started.
From when the pulse outputs are started until they are stopped, they are
controlled at a constant-ratio frequency change.
Independent Mode
Pulse output frequency
Target
frequency
Starting
frequency
0 Hz
Acceleration
Start
ACC(––)
Continuous Mode
Pulse output frequency
Target
frequency 2
Target
frequency 3
Target
frequency 1
0 Hz
Acceleration/
deceleration
Start
ACC(––)
Instruction execution: PULS(65) + ACC(––) (Independent mode)
In independent mode, deceleration is
carried out at the acceleration/
deceleration rate in effect at the start.
Deceleration
Instruction execution: ACC(––) (Continuous mode)
Acceleration/deceleration Acceleration/deceleration
Acceleration or Acceleration or
deceleration deceleration
ACC(––) ACC(––)
Section 2-5
Time
Time
