CPM2A/CPM2C Pulse Output Functions

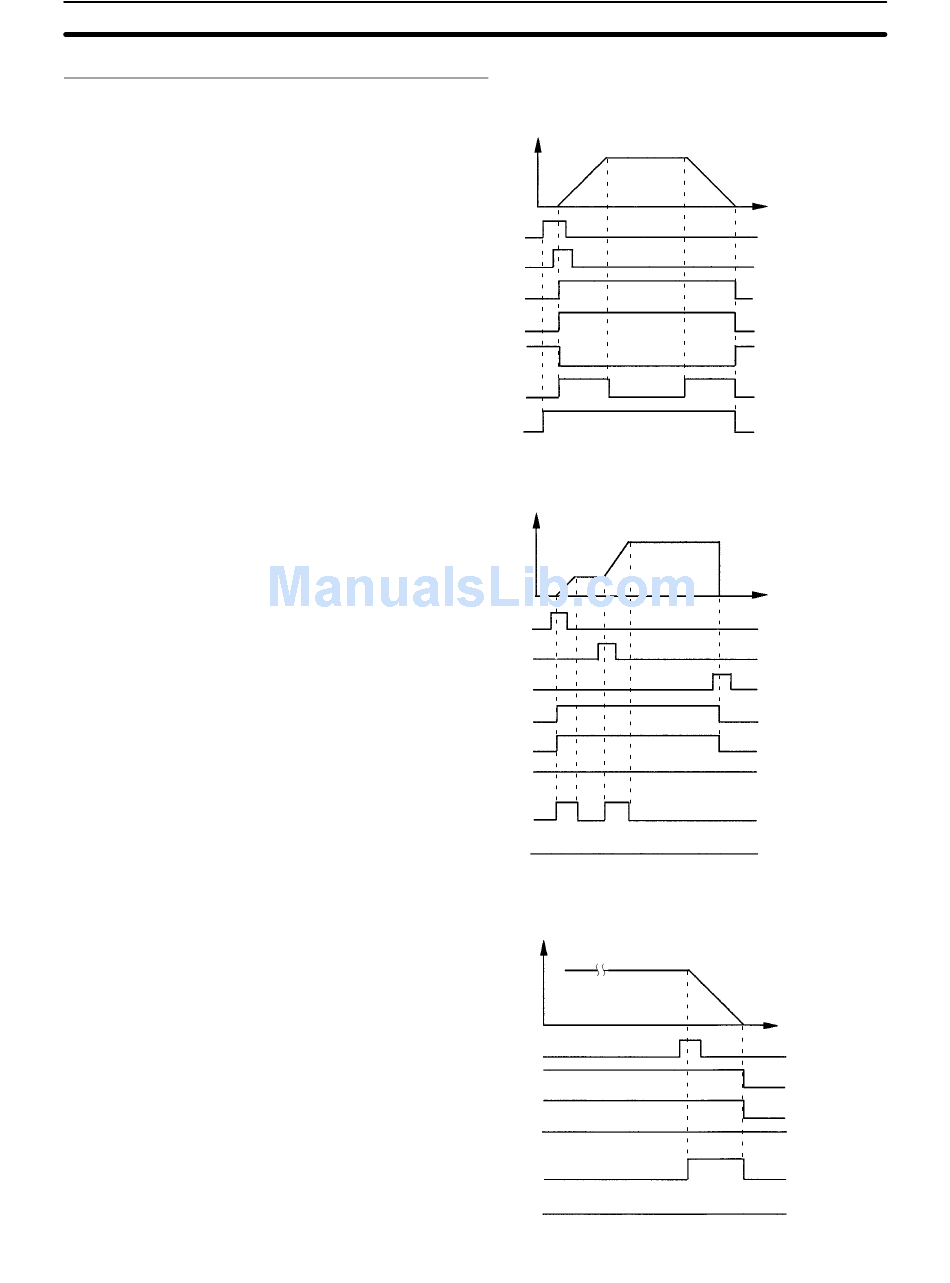

Relationship Between Status and Operation
Independent Mode with Acceleration and Deceleration
PULS(65) execution
ACC(––) execution
Output 0 in progress
Output 1 in progress
Output completion
Output status
Set number of pulses
Continuous Mode with Acceleration and Deceleration 1
ACC(––) execution (1)
ACC(––) execution (2)
INI(61) execution
Output 0 in progress
Output 1 in progress
Output completion
Output status
Set number of pulses
Continuous Mode with Acceleration and Deceleration 2
ACC(––) execution (Stop)
Output 0 in progress
Output 1 in progress
Output completion
Output status
Set number of pulses
Frequency
Frequency
Frequency
Section
2-5
Time
Time
Time
125
