Omron CPM1 - PROGRAMING MANUAL 02-2001 Programming Manual page 164

Synchronized Pulse Control (CPM2A/CPM2C Only)

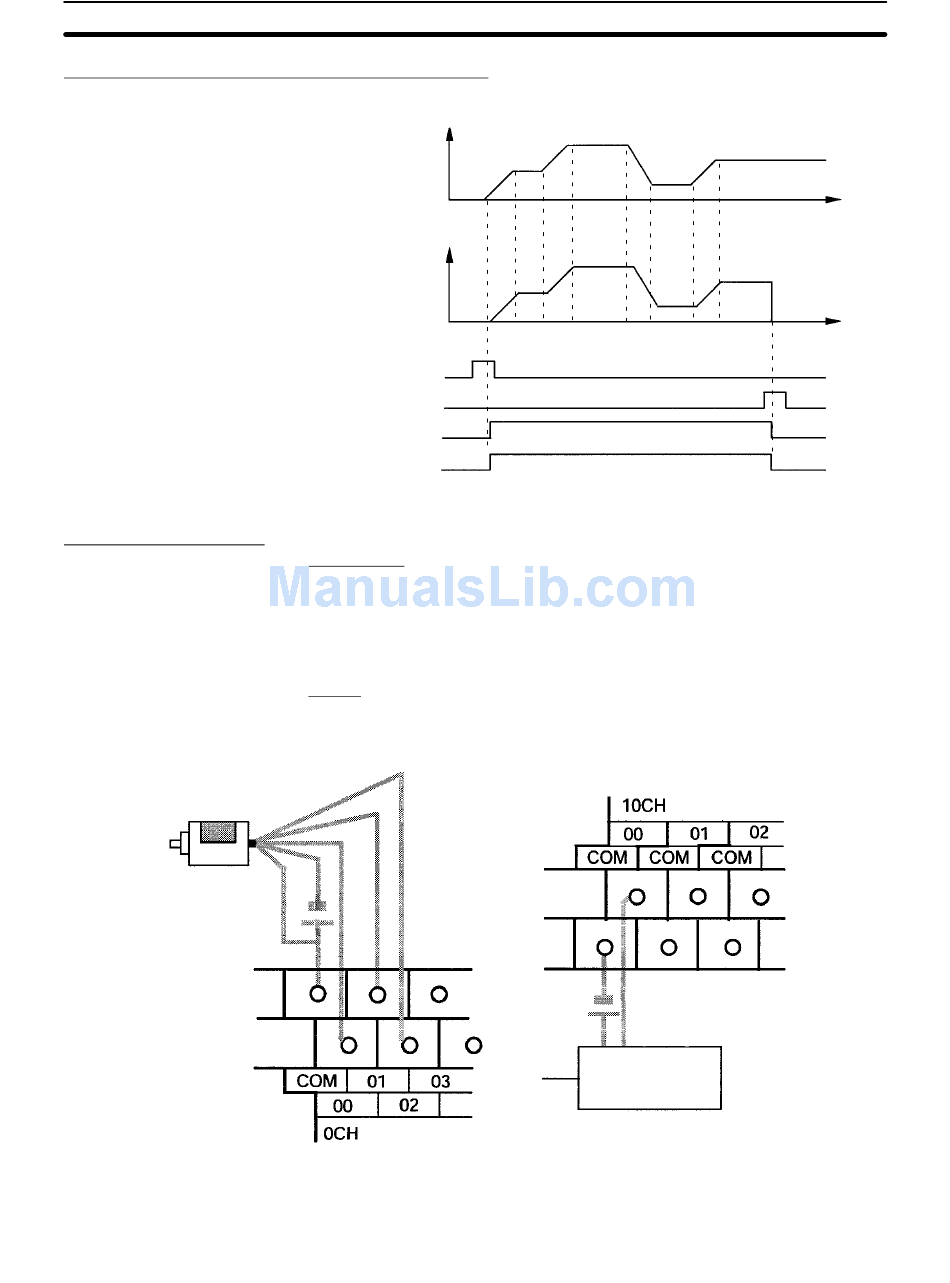

Relationship Between Status and Operation
Application Example
Rotary encoder
Brown
Frequency
Input pulses
Frequency
Output pulses
SYNC(––) execution
INI(61) execution
Output 0 in progress
Output 1 in progress
Explanation
In this example, when the execution condition (00005) turns ON, synchronized
pulse control is started and pulses are output from output 01000 (pulse output 0)
according to the pulses input by the high-speed counter. At this time, the fre-
quency scaling factor can be changed by means of analog control 0. When the
execution condition (00005) turns OFF, synchronized pulse control is stopped.
Wiring
Wire the CPM2A as shown in the following illustration.
Orange
White
Black
Blue
Wire the CPM2C as shown in the following illustration. In this case, a CPU Unit
with sinking transistor outputs is used.
Section
Motor driver
2-7
Time
Time
143
