Omron CPM1 - PROGRAMING MANUAL 02-2001 Programming Manual page 151

CPM2A/CPM2C Pulse Output Functions

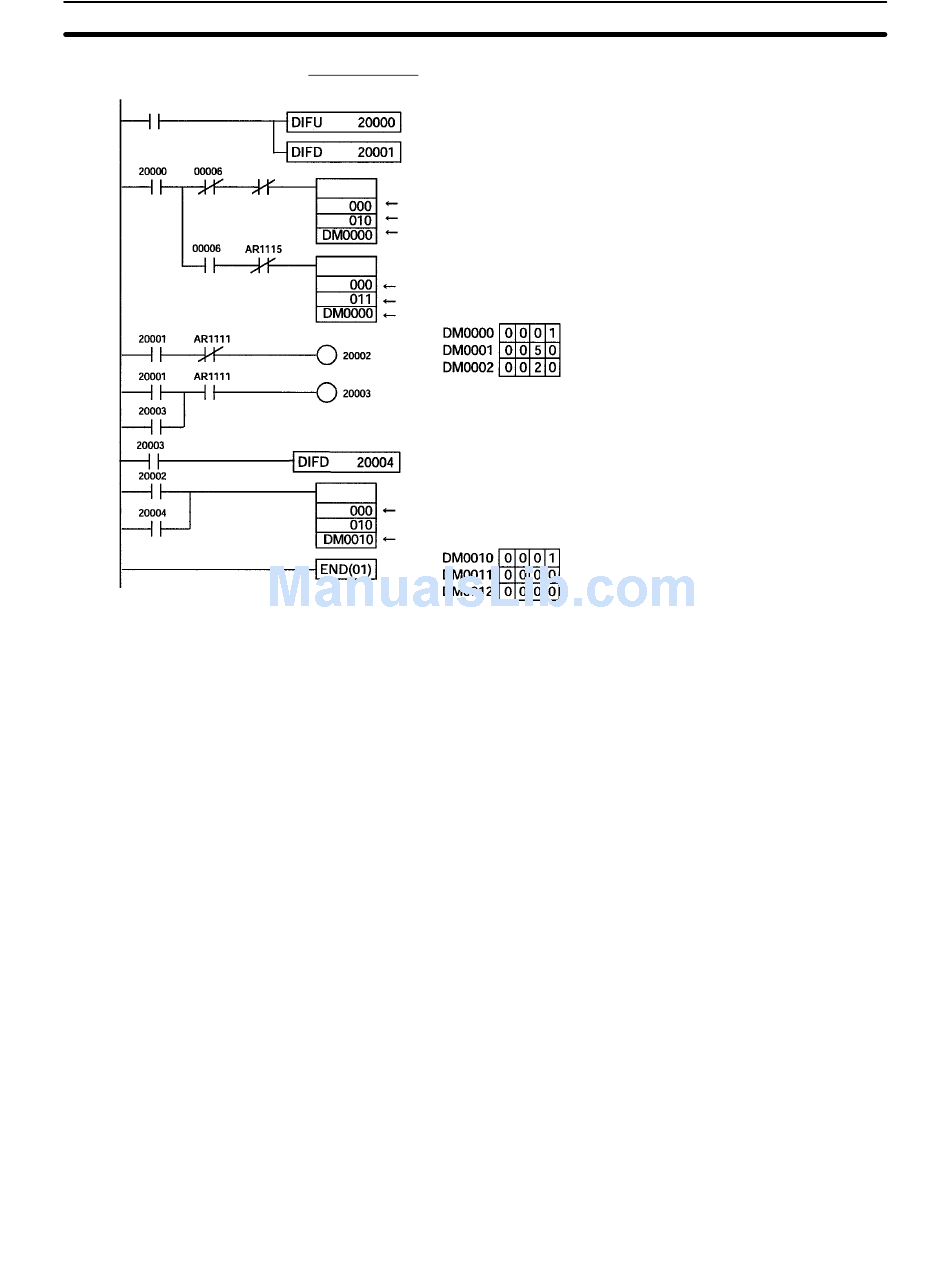

00005 (Execution condition)
(Direction designator)
(Direction designator)
130
Programming
(13) Detects turning ON of execution condition.
(14)
Detects turning OFF of execution condition.
AR1115
Output in CW direction
ACC(––)
Pulse output 0
Continuous mode, up/down pulses, CW direction
Beginning word of settings table
ACC(––)
Output in CCW direction
Pulse output 0
Continuous mode, up/down pulses, CCW direction
Beginning word of settings table
(14)
ACC(––)
Deceleration stop
Pulse output 0
Beginning word of settings table
Acceleration/deceleration rate: 10 Hz/10 ms
Target frequency: 500 Hz
Starting frequency: 200 Hz
Acceleration/deceleration rate: 10 Hz/10 ms
Target frequency: 0 Hz
Section 2-5
