Conversion Instructions
Flags
Example
00000
S: DM 0020
DM 0020 00
DM 0020 01
DM 0020 02
DM 0020 03
DM 0020 04 1
DM 0020 05 1
DM 0020 06 1
DM 0020 07 1
DM 0020 08 0
DM 0020 09 1
DM 0020 10 1
DM 0020 11 0
DM 0020 12 0
DM 0020 13 0
DM 0020 14 0
DM 0020 15 0
Some example Di values and the digit-to-word conversions that they produce
are shown below.
Di: 0010
S
0
1
2
3
Di: 0031
S
0
1
2
3
ER: Undefined digit designator, or R plus number of digits exceeds a data
area.
Indirectly addressed DM word is non-existent. (Content of *DM word is
not BCD or the DM area boundary has been exceeded.)

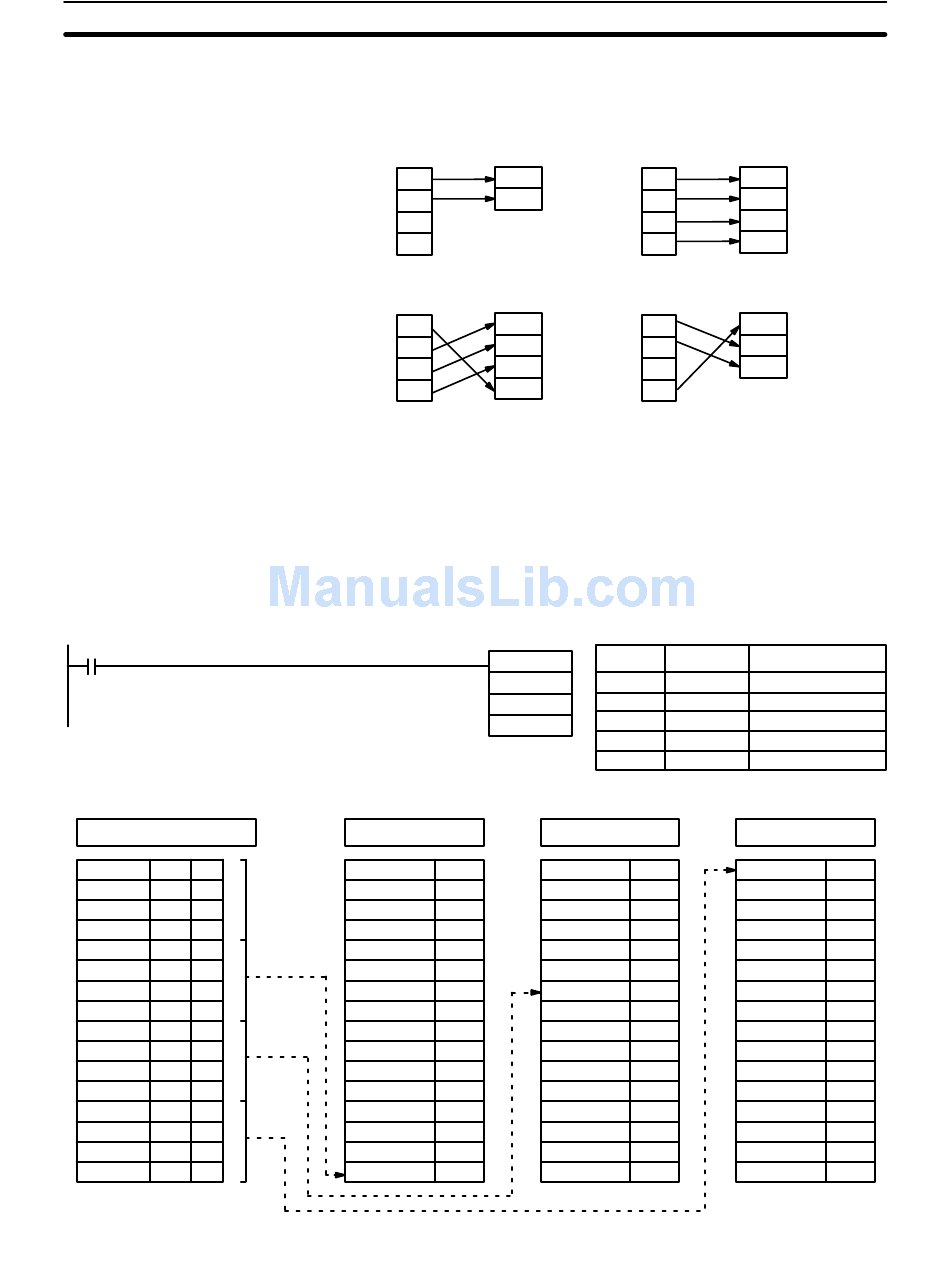

The following program converts digits 1 to 3 of data from DM 0020 to bit positions
and turns ON the corresponding bits in three consecutive words starting with HR
10. Digit 0 is not converted.
R: HR 10
HR 1000
Not HR 1001
Converted
HR 1002
HR 1003
HR 1004
15
HR 1005
HR 1006
HR 1007
HR 1008
6
HR 1009
HR 1010
HR 1011
HR 1012
0
HR 1013
HR 1014
HR 1015
R
R + 1
R
R + 1
R + 2
R + 3
Address
MLPX(76)
00000
DM 0020
00001
#0021
HR 10
R+1: HR 11
0 HR 1100
0 HR 1101
0 HR 1102
0 HR 1103
0 HR 1104
0 HR 1105
0 HR 1106
0 HR 1107
0 HR 1108
0 HR 1109
0 HR 1110
0 HR 1111
0 HR 1112
0 HR 1113
0 HR 1114
1 HR 1115
Section
Di: 0030
S
R
0
R + 1
1
R + 2
2
R + 3
3
Di: 0023
S
R
0
R + 1
1
R + 2
2
3
Instruction Operands
LD
MLPX(76)
DM
#
HR
R+2: HR 12
0 HR 1200
0 HR 1201
0 HR 1202
0 HR 1203
0 HR 1204
0 HR 1205
1 HR 1206
0 HR 1207
0 HR 1208
0 HR 1209
0 HR 1210
0 HR 1211
0 HR 1212
0 HR 1213
0 HR 1214
0 HR 1215
7-20
00000
0020
0021
10
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
