SRM1(-V2) Communications Functions
Write data
Read data
Limitations of 1:1 PC Links
with a SRM1(-V2)
Cable Connections
PC Setup Settings
Word Bit
DM 6645 00 to 03 Port settings
00: Standard (1 start bit, 7-bit data, 2 stop bits, even parity, 9,600 bps)
01: Settings in DM 6651
04 to 07 CTS Control settings
0: Disable
1: Set
08 to 11 When using a 1:1 PC Link: Sets the link words for 1:1 PC Link.
When using a 1:N NT Link: Sets the maximum PT node number.
12 to 15 Communications mode
0: Host Link; 1: No-protocol; 2: 1:1 PC Link Slave; 3: 1:1 PC Link Master; 4:
1:1 NT Link; 5: 1:N NT Link
280

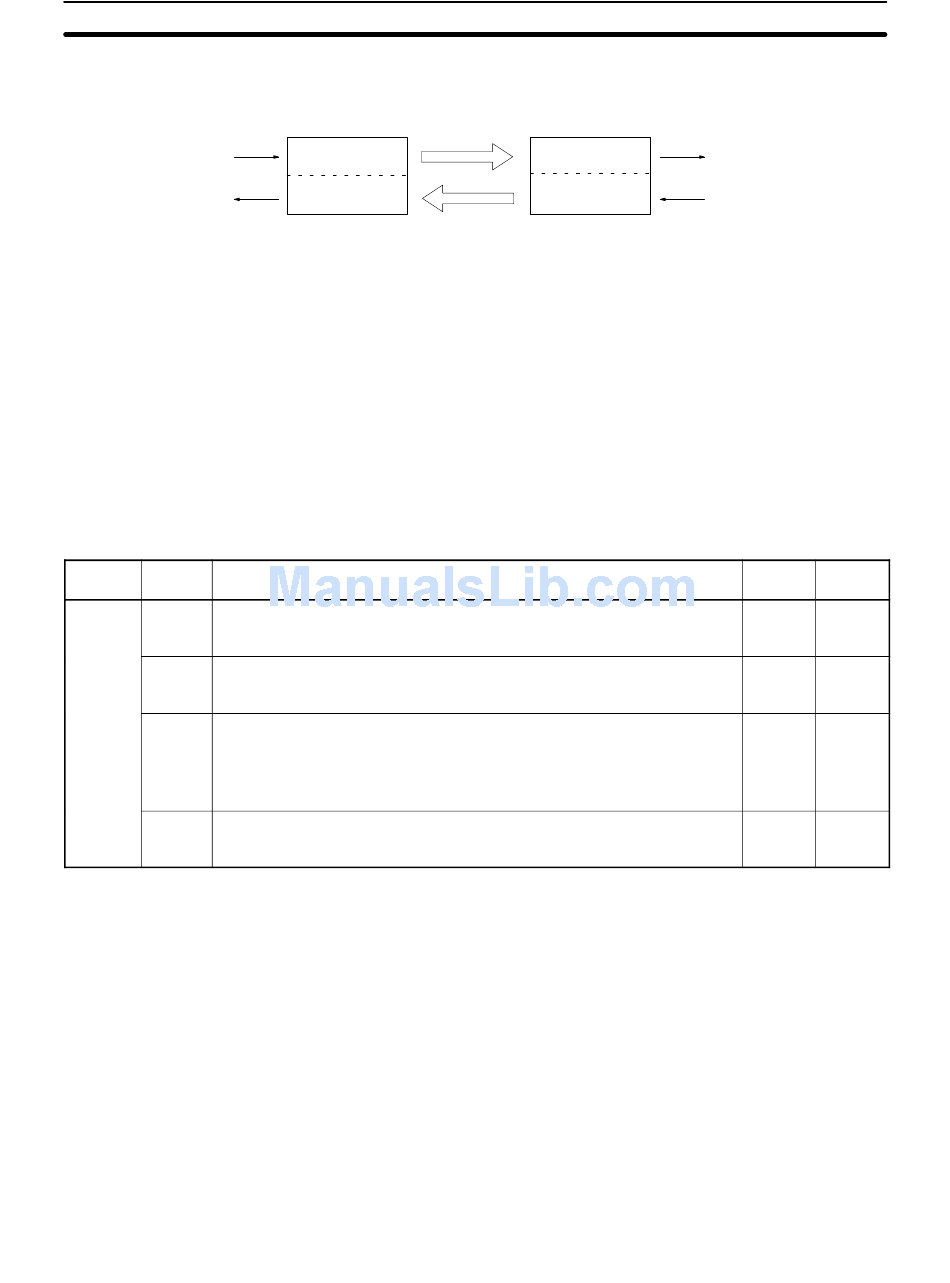

The words used for the 1:1 PC Link are as shown below.
Master
LR00
Area for writing
LR07
LR08
Area for reading
LR15
A 1:1 PC Link is possible only with the SRM1-C02-V1/V2 PCs, which are
equipped with an RS-232C port.
Only the 16 LR words from LR 00 to LR 15 can be linked in the SRM1, so use only
those 16 words in the CQM1 or C200HS when making a 1:1 PC Link with one of
those PCs. A 1:1 PC Link cannot be made to an SRM1 PC using LR 16 through
LR 63 in the CQM1 or C200HS.
Refer to the SRM1 Master Control Units Operation Manual for information on
cable connections in a 1:1 PC Link.
When an SRM1(-V2) is used in a 1:1 PC Link, make the following PC Setup set-
tings from a Programming Device.
1
0: LR 00 to LR 15
Not 0: Disable
1 to 7
1
Note 1. If an improper setting is used, a non-fatal error will occur, AR 1302 will be
turned ON, and the default setting (0 or 00) will be used.
2. For information on the 1:1 PC Link settings for another OMRON PC, refer to
that PC's Operation Manual.
3. If an out-of-range value is set, the following communications conditions will
result. In that case, reset the value so that it is within the permissible range.
Communications mode:
Communications format:
Transmission delay:
Node number:
Slave
Area for reading
Area for writing
Function
Host Link
Standard settings
(1 start bit, 7-bit data; 2 stop bits, even parity,
9,600 bps)
No
00
Section
LR00
Read data
LR07
LR08
Write data
LR15
Setting Setting
(Master) (Slave)
00 or 01 00 or 01
0 0
0 0
3 2
4-4
