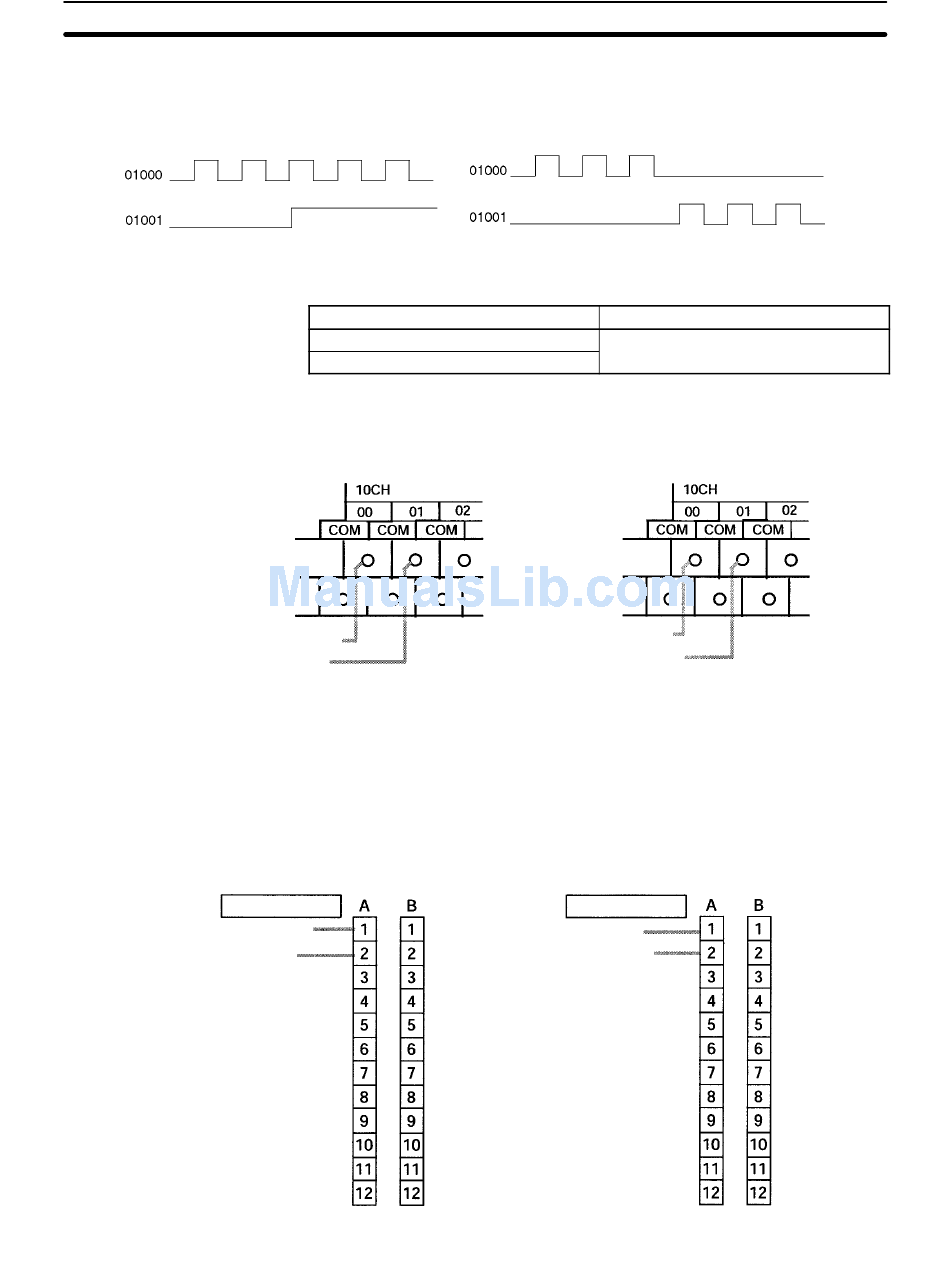

CPM2A/CPM2C Pulse Output Functions
Selecting the Direction
Control Method
Pulse + Direction Outputs
Selecting the Pulse
Output Number
Wiring the Outputs
Pulse + Direction Outputs
Output 01000: Pulse output
Output 01001: Direction output
Pulse + Direction Outputs
Output connector
01000: Pulse output
01001: Direction output
118
Select the pulse output direction control method according to the type of signal
used.
Select pulse output 0.
Output number
01000
01001
Wire the CPM2A outputs as shown in the following illustration.
Wire the CPM2C outputs as shown in the following illustration.
Note The following examples are for Fujitsu-compatible connectors. Output bit ad-
dresses and connector pin numbers depend on the models. Refer to the CPM2C
Operation Manual (W356) or the CPM2C-S Operation Manual (W377) for de-
tails.
(See above note.)
Up/down Pulse Outputs
Pulse output number
0
Up/down Pulse Outputs
Output 01000: CW output
Output 01001: CCW output
Up/down Pulse Outputs
Output connector
01000: CW output
01001: CCW output
Section 2-5
(See above note.)
