CPM2A/CPM2C Pulse Output Functions
Execution condition
20000
116

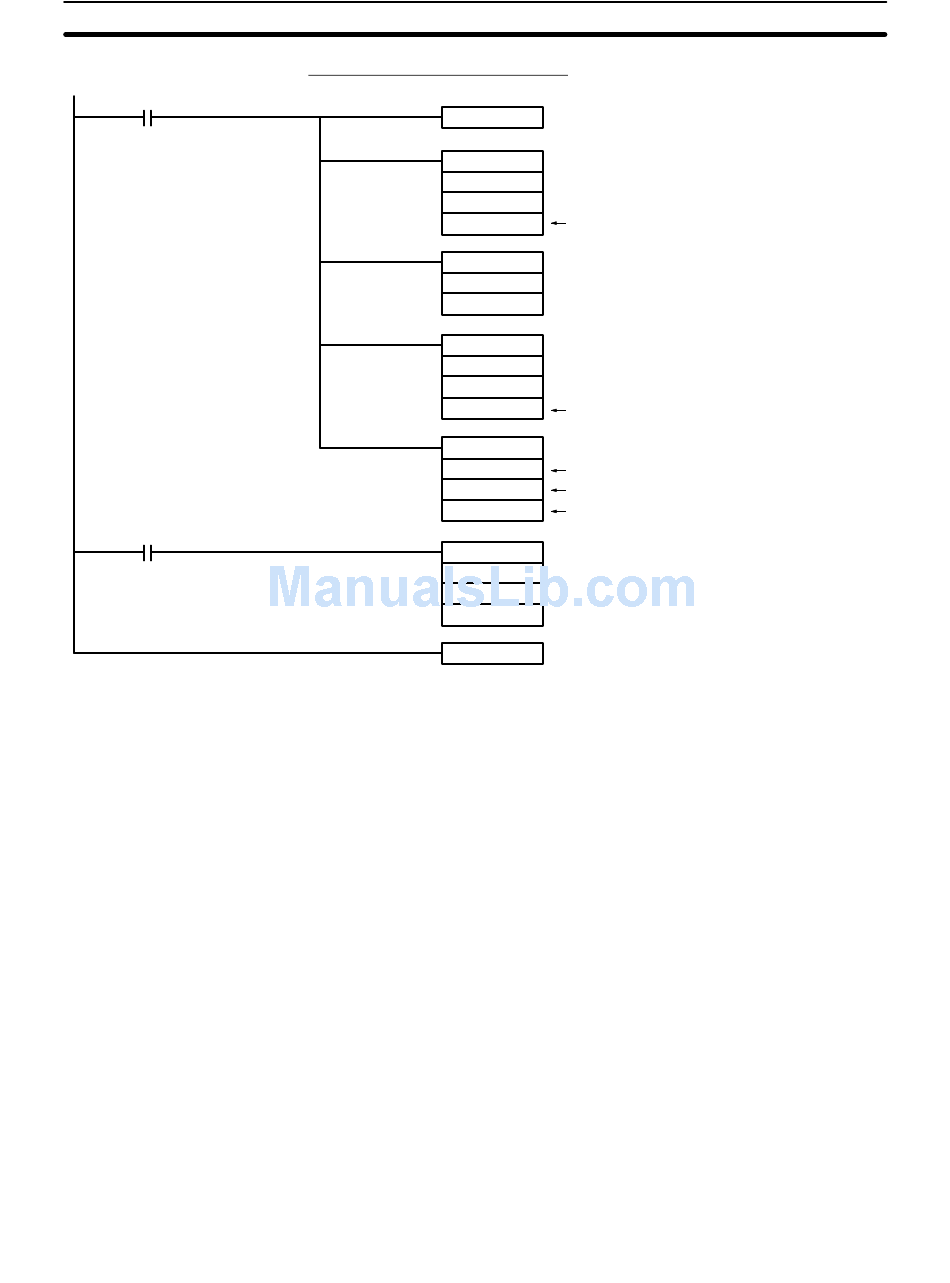

Programming (CPM2C Example)
DIFD (14)
ANDW (34)
BCD (24)
MUL (32)
PWM (––)
INI(61)
END (01)
20000
Detects OFF to ON transition in execution condition.
Reads the value from the thumb rotary switch.
000
#000F
Value from the thumb rotary switch
DM0100
DM0100
DM0101
DM0101
#0010
DM0102
Duty ratio setting
Variable duty pulse output
Pulse output 0
000
Output frequency: 100 Hz
#1000
Duty ratio setting
DM0102
Stops pulse output 0
000
003
000
Section
2-5
