Recommendations
5.7. Recommendations
5.7.1. I&M Data
Identification & Maintenance data may be used by the engineering tool to assist in resolving mismatching
configurations. By comparing the OrderID from the expected GSD module with the OrderID from the I&M data
of the actual, plugged module, the user can adapt the configuration to match the real identification. To ease
integration and tracking of assets it is highly recommended to implement transparent I&M data for modules.
When implementing I&M0 data for modules, one of the submodules in each module must be selected as a
module representative. This submodule shall be listed as I&M0 Carrier and Module Representative in the I&M0
Filter Data of the IM_Options command.

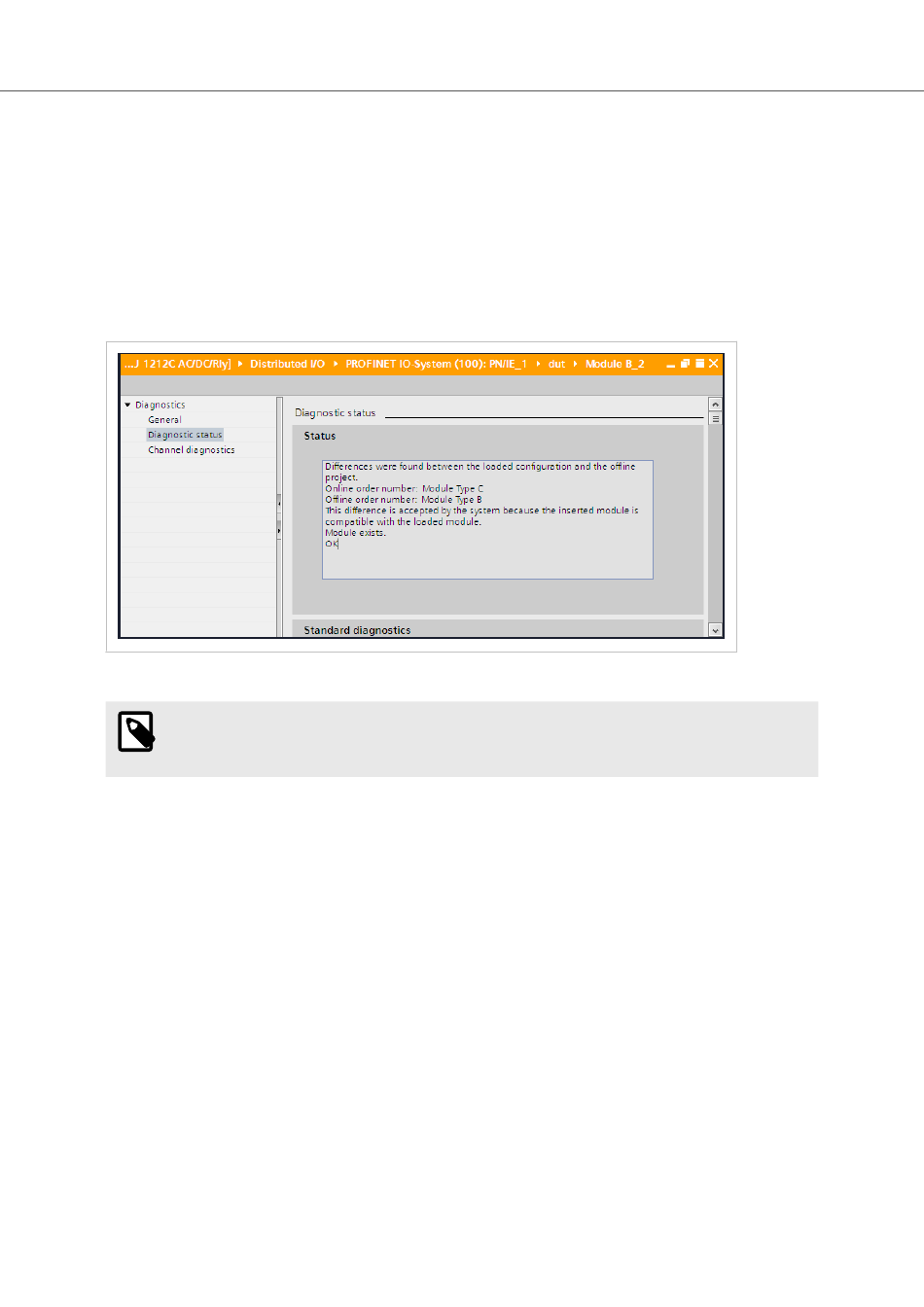

Figure 4.
NOTE
After a successful process data remap the entire RI is regenerated and any I&M0 Filter Data must be
reconfigured. Refer to the Expected_Ident_Ind command for finding out the new RI.
