Flowcharts
Appendix C. Flowcharts

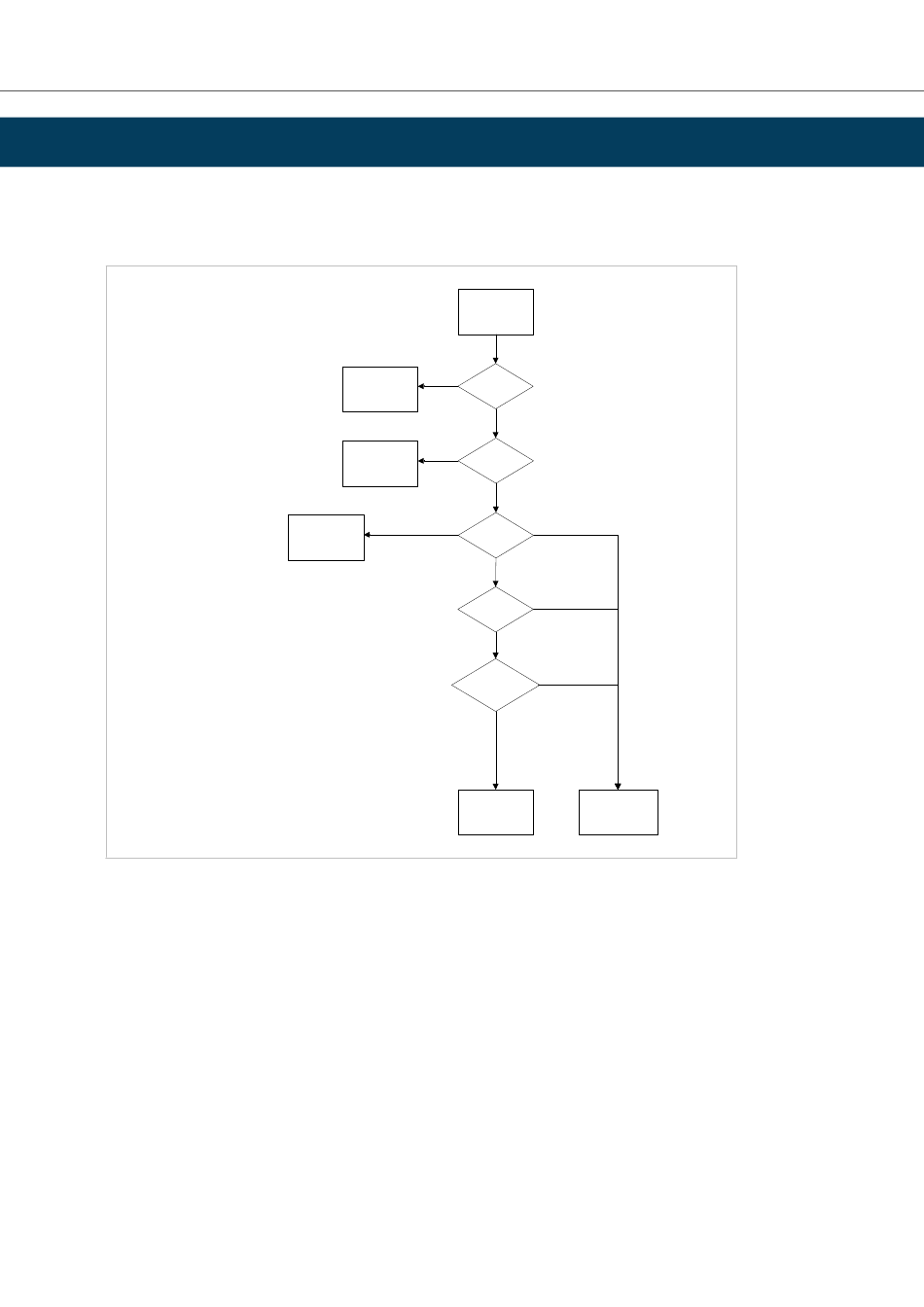

1. Flowchart — Record Data Access
This flowchart illustrates how Record Data requests are handled by the Anybus module.
Figure C.1.
See also...
• Application Data Instances (ADIs) (page 10)
• PROFINET IO Object (F6h) (page 112)
• Details for command Get_Record in the
• Details for command Set_Record in the
SCM-1202-021 Version 2.6
Record Data
Reject
No
Api/Slot/Subslot
Record Data
request
Yes
PROFIsafe
Safety module?
handler
Range: AFF0h... AFFFh
I&M handler Index Range?
I&M Indexes
Transparent Mode
(0000h... 7FFFh)
Get/Set_Attribute
(Application Data
PROFINET IO Object (F6h) (page 112)
PROFINET IO Object (F6h) (page 112)
® ™
Anybus CompactCom 40 - PROFINET IRT Transparent
Incoming
Request
inserted?
Yes
No
Range: Profile Specific
Range: 0000h... 7FFFh
User specific indexes
Unknown AP
API?
Default AP (Zero)
Yes
?
No
Get/Set_Record
(PROFINET IO
Object) Object)
Ethernet
