Technical Specification
Appendix E. Technical Specification

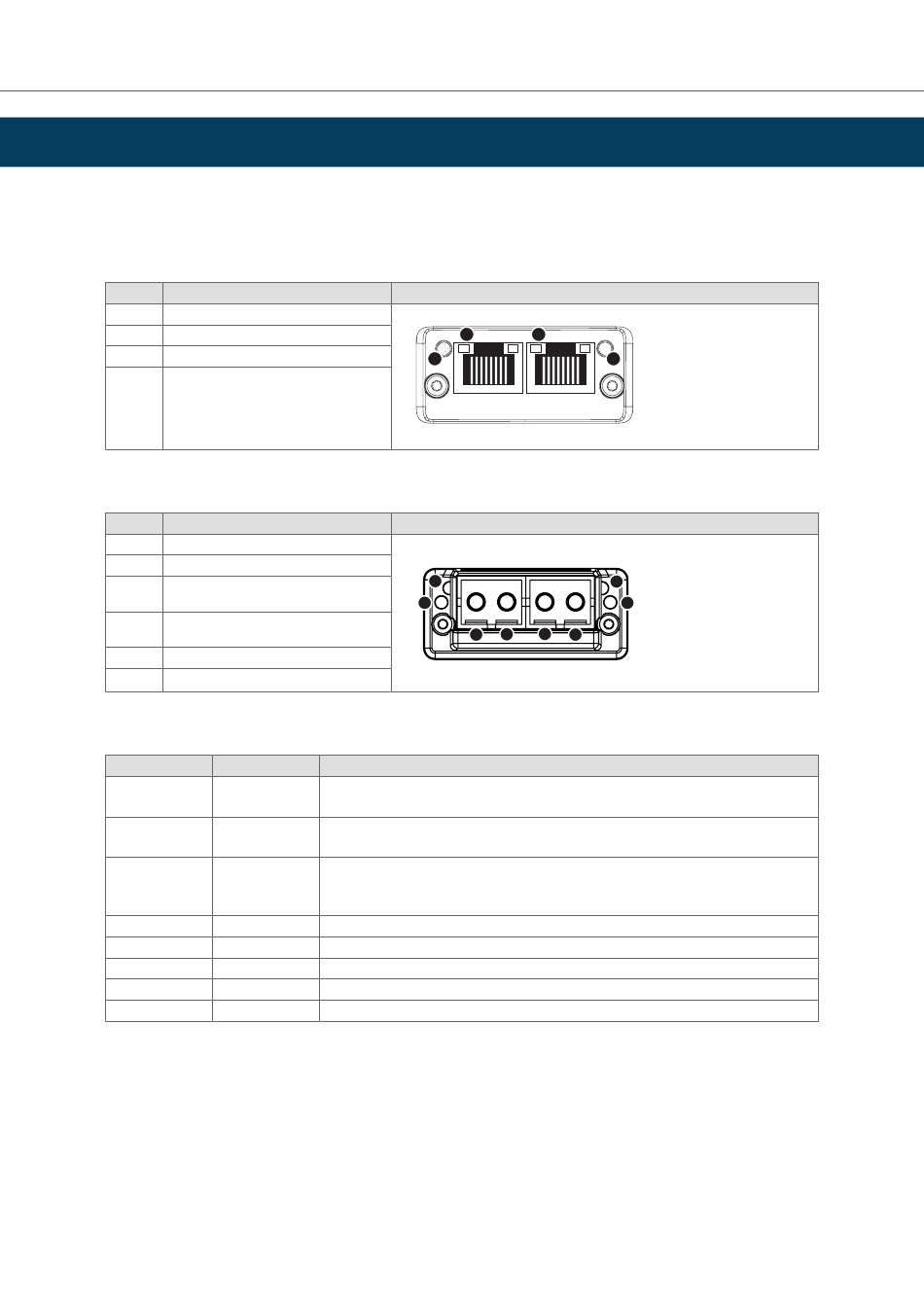

1. Front View
1.1. Front View (PROFINET IRT, Ethernet Connectors)
# Item
1 Network Status LED
2 Module Status LED
3 Link/Activity LED (port 1)
4 Link/Activity LED (port 2)
1.2. Front View (Fiber Optics Connectors)
# Item
1 Network Status LED
2 Module Status LED
3 Optical signal from the Anybus CompactCom
module
4 Optical signal to the Anybus CompactCom
module
5 Link/Activity LED (port 1)
6 Link/Activity LED (port 2)
1.3. Network Status LED
LED State Description
Off Offline
Green Online (RUN)
Green, 1 flash Online (STOP)
Green, blinking Blink
Red Fatal event
Red, 1 flash Station Name error
Red, 2 flashes IP address error
Red, 3 flashes Configuration error
SCM-1202-021 Version 2.6
3
1
1
5
3
Comments
• No power
• No connection with IO Controller
• Connection with IO Controller established
• IO Controller in RUN state
• Connection with IO Controller established
• IO Controller in STOP state or IO data bad
• IRT synchronization not finished
Used by engineering tools to identify the node on the network
Major internal error (this indication is combined with a red module status LED)
Station Name not set
IP address not set
Expected Identification differs from Real Identification
® ™
Anybus CompactCom 40 - PROFINET IRT Transparent
4
2
2
6
4 3
4
Ethernet
