Anybus CompactCom 40 - PROFINET IRT Transparent
Ethernet
5.6.3. Device Layout
Modular Device – API 0
Slot 0 – Head node (ADI 1..256)
- Module ident: 0xA0000001
Subslot 1 – DAP
- Submod ident: 0x00000001
Slot 1 – ADI 257..512
- Module ident: 0xB0000002
Subslot 1 – ADI 257
- 8 UINT8 write
- Submod ident: 0x00000800
Slot 2 – ADI 513..768
- Module ident: 0xC0000003
Subslot 1 – ADI 513
- 4 UINT8 read
- Submod ident: 0x10000400
Slot 3 – ADI 769..1024
- Module ident: 0xB0000002
Subslot 1 – ADI 769
- 8 UINT8 write
- Submod ident: 0x00000800

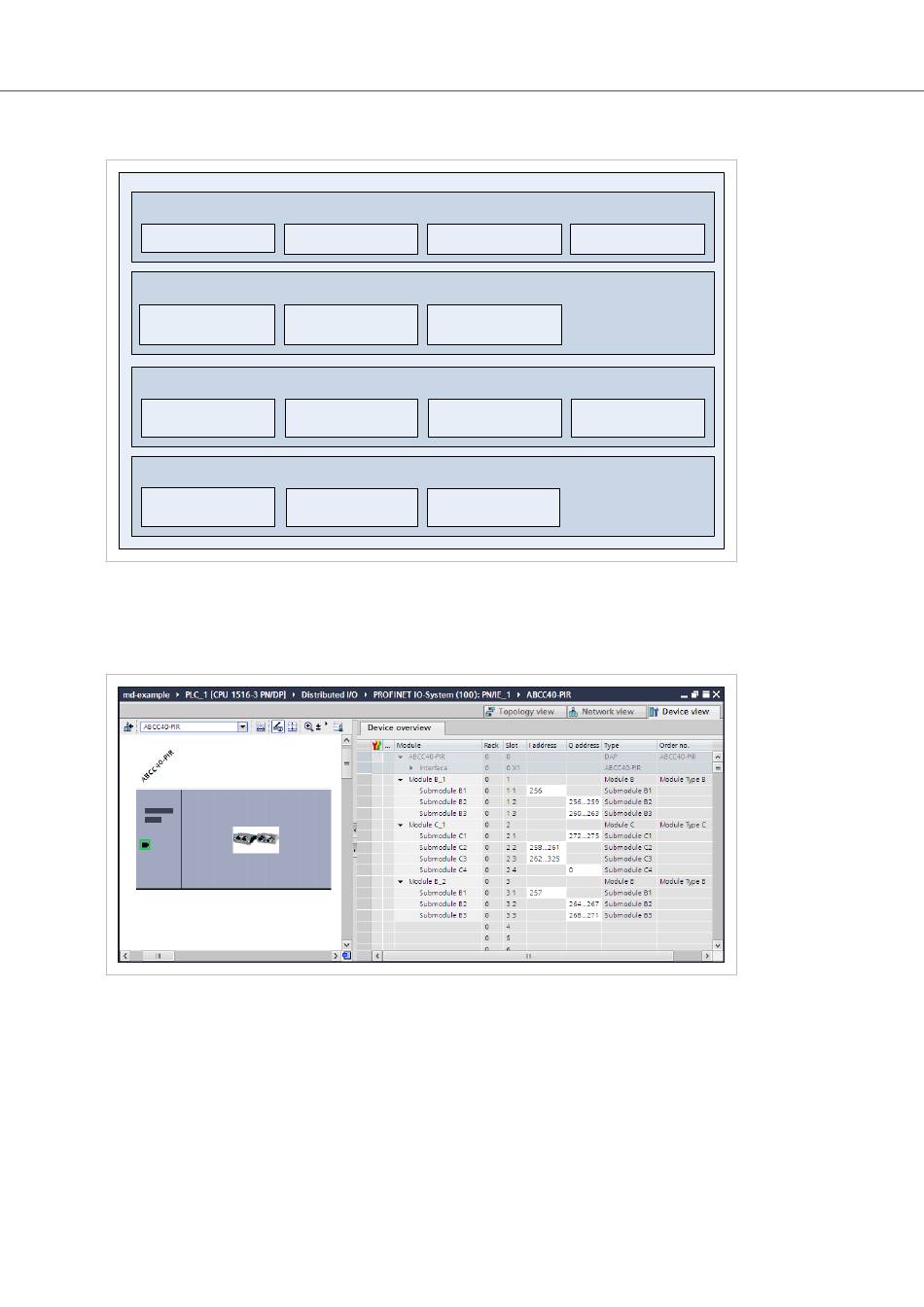

Figure 2.
5.6.4. Example View in TIA Portal
Note that the GSD instantiates the same module, Module Type B in both slot 1 and slot 3.
Figure 3.
Page 30 of 177
Subslot 0x8000 – Interface Subslot 0x8001 – Port 1
- Submod ident: 0x00000002 - Submod ident: 0x00000003
Subslot 2 – ADI 300 Subslot 3 – ADI 304
- 2 UINT16 read (at offset 3) - 1 INT32 read
- Submod ident: 0x102B0203 - Submod ident: 0x102F0100
Subslot 2 – ADI 700 Subslot 3 – ADI 708
- 2 UINT16 write - 16 UINT32 write
- Submod ident: 0x00BB0200 - Submod ident: 0x00C31000
Subslot 2 – ADI 812 Subslot 3 – ADI 816
- 2 UINT16 read (at offset 3) - 1 INT32 read
- Submod ident: 0x102B0203 - Submod ident: 0x102F0100
Modular Device Example
Subslot 0x8001 – Port 1
- Submod ident: 0x00000003
Subslot 4 – ADI 760
- BIT4+PAD2+BIT2 read
- Submod ident: 0x10F70300
