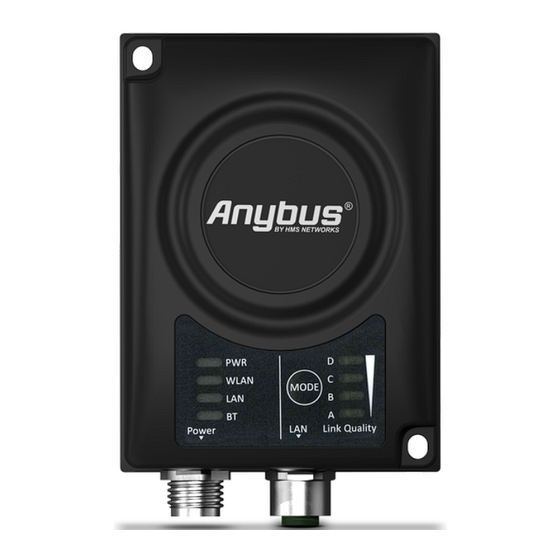

HMS Networks Anybus Wireless Bridge II CAN AWB3006 Startup Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ENGLISH
®
™
Anybus
Wireless Bridge II CAN
STARTUP GUIDE
SP2965
Version 1.4
Publication date 2022-02-23

Advertisement

loading
Need help?

Need help?

Do you have a question about the Anybus Wireless Bridge II CAN AWB3006 and is the answer not in the manual?

Questions and answers

Related Manuals for HMS Networks Anybus Wireless Bridge II CAN AWB3006

Summary of Contents for HMS Networks Anybus Wireless Bridge II CAN AWB3006

  • Page 1 ENGLISH ® ™ Anybus Wireless Bridge II CAN STARTUP GUIDE SP2965 Version 1.4 Publication date 2022-02-23...
  • Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.

  • Page 3: About This Document

    ® ™ Preface Anybus Wireless Bridge II CAN 1. Preface 1.1. About This Document ® ™ This document describes how to install Anybus Wireless Bridge II CAN For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. 1.2.

  • Page 4: Information Symbols

    ® ™ Anybus Wireless Bridge II CAN Trademarks Information Symbols NOTE Additional information which may facilitate installation and/or operation. Helpful advice and suggestions. 1.3. Trademarks ® ™ Anybus is a registered trademark and Wireless Bridge II CAN is a trademark of HMS Networks AB.

  • Page 5: General Safety

    ® ™ Safety Anybus Wireless Bridge II CAN 2. Safety 2.1. General Safety CAUTION This equipment emits RF energy in the ISM (Industrial, Scientific, Medical) band. Make sure that all medical devices used in proximity to this equipment meet appropriate susceptibility specifications for this type of RF energy.

  • Page 6: Intended Use

    ® ™ Anybus Wireless Bridge II CAN Intended Use 2.3. Intended Use The intended use of this equipment is as a communication interface and gateway. The equipment receives and transmits data on various physical levels and connection types. If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

  • Page 7: Optional Equipment

    ® ™ Preparation Anybus Wireless Bridge II CAN 3. Preparation 3.1. Support and Resources For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Have the product article number available, to search for the product specific support web page.

  • Page 8: Antenna Considerations

    ® ™ Anybus Wireless Bridge II CAN Placement 3.4. Placement Antenna Considerations For models with internal antenna the characteristics of the antenna should be considered when choosing the placement and orientation of the Bridge II CAN. Required Distance Between Devices For optimal reception, wireless devices require a zone between them clear of objects that could otherwise obstruct or reflect the signal.

  • Page 9: Bluetooth Limitations

    ® ™ Bluetooth Limitations Anybus Wireless Bridge II CAN 3.6. Bluetooth Limitations Due to different implementations of Bluetooth by different manufacturers, Bluetooth PAN (Personal Area Network) may not work with some devices. WLAN 5 GHz cannot be used at the same time as WLAN 2.4 GHz or Bluetooth. SP2965 1.4 Page 7 of 28...

  • Page 10: Installation Drawing

    ® ™ Anybus Wireless Bridge II CAN Installation 4. Installation 4.1. Installation Drawing All measurements are in mm. Figure 2. Bridge II CAN Installation drawing Page 8 of 28 SP2965 1.4...

  • Page 11: Surface Mounting

    ® ™ Surface Mounting Anybus Wireless Bridge II CAN 4.2. Surface Mounting Bridge II CAN can be screw-mounted directly onto a flat surface. Before You Begin NOTE To avoid signal interference, a minimum distance of 50 cm between the devices should be observed. See also Wireless Technology Basics.

  • Page 12: Din Rail Mounting

    ® ™ Anybus Wireless Bridge II CAN DIN Rail Mounting 4.3. DIN Rail Mounting Using the optional DIN mounting kit, Bridge II CAN can be mounted on a standard DIN rail. Optional Equipment (page Before You Begin NOTE To avoid signal interference, a minimum distance of 50 cm between the devices should be observed.
  • Page 13 ® ™ DIN Rail Mounting Anybus Wireless Bridge II CAN Push the bottom of the DIN rail clip into the DIN rail. Figure 5. Attach Bridge II CANon DIN rail SP2965 1.4 Page 11 of 28...
  • Page 14 ® ™ Anybus Wireless Bridge II CAN Connect to LAN, CAN and Power 4.4. Connect to LAN, CAN and Power Before You Begin CAUTION This equipment is recommended for use in both industrial and domestic environments. For industrial environments it is mandatory to use the functional earth connection to comply with immunity requirements.
  • Page 15 ® ™ Connect to LAN, CAN and Power Anybus Wireless Bridge II CAN Connect the Bridge II CAN to LAN network. Table 1. LAN connector pinout LAN Connector Function Transmit + Receive + Transmit - Receive - Connect the Bridge II CAN to a CAN network and Power. Table 2.
  • Page 16 ® ™ Anybus Wireless Bridge II CAN Configuration 5. Configuration 5.1. Required IP Address Settings To be able to access the Bridge II CAN built-in web interface you may need to adjust the IP settings, choose one of the following methods. The Bridge II CAN default IP address is 192.168.0.99.
  • Page 17 ® ™ Required IP Address Settings Anybus Wireless Bridge II CAN Option 2 - Change the IP Address on the Bridge II CAN Ethernet port Use the software application HMS IPconfig to find and change the IP address on the Bridge II CAN Ethernet port, to one within the same IP address range as the PC accessing the Bridge II CAN built-in web interface.
  • Page 18 ® ™ Anybus Wireless Bridge II CAN Bridge II CAN Built-In Web Interface 5.2. Bridge II CAN Built-In Web Interface The Bridge II CAN built-in web interface is used to configure, maintain and troubleshoot the Bridge II CAN. Parameters can be set individually or using pre-configured Easy Config modes.

  • Page 19: Configuration Methods

    ® ™ Configuration Methods Anybus Wireless Bridge II CAN 5.3. Configuration Methods There are different methods available for configuring the Bridge II CAN. Built-In Web Interface Settings Bridge II CAN can be configured via the settings in the built-in web interface. Easy Config Modes Bridge II CAN can be configured using one of the pre-configured Easy Config modes.
  • Page 20 ® ™ Anybus Wireless Bridge II CAN Easy Config Using the MODE Button 5.4. Easy Config Using the MODE Button Figure 7. Easy Config Using the MODE Button Power on the unit and wait for the Link Quality LEDs to light up and go out again, then immediately press and release the MODE button.
  • Page 21 ® ™ Available Easy Config Modes Anybus Wireless Bridge II CAN 5.5. Available Easy Config Modes Bridge II CAN may be configured using one of the pre-configured Easy Config modes. NOTE By default, the unit starts in Easy Config Mode 4. The unit awaits automatic configuration during 120 seconds or until receiving a configuration.

  • Page 22: Reset To Factory Default

    ® ™ Anybus Wireless Bridge II CAN Reset to Factory Default 5.6. Reset to Factory Default Any one of these actions will restore the factory default settings: • On the System Settings page, click Factory Restore. • Execute Easy Config Mode 2. •...

  • Page 23: Recovery Mode

    ® ™ Recovery Mode Anybus Wireless Bridge II CAN 5.7. Recovery Mode If the built-in web interface cannot be accessed, the unit can be reset by starting in Recovery Mode and reinstalling the firmware. Before You Begin IMPORTANT Use Recovery Mode only when the unit is unresponsive and the built-in web interface cannot be accessed.
  • Page 24 ® ™ Anybus Wireless Bridge II CAN Recovery Mode To Reinstalling the Firmware To reinstalling the firmware, you need Anybus Firmware Manager II. Download Anybus Firmware Manager II from www.anybus.com/support. Install Anybus Firmware Manager II on your PC. Launch Anybus Firmware Manager II and follow the instructions to reinstall the firmware.

  • Page 25: Factory Default Settings

    ® ™ Factory Default Settings Anybus Wireless Bridge II CAN 6. Factory Default Settings The Bridge II CAN comes with the following factory default settings. Default Network Settings IP Assignment Static IP Address 192.168.0.99 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.99 Internal DHCP Server Disabled DHCP Interfaces...

  • Page 26: Led Indicators

    ® ™ Anybus Wireless Bridge II CAN LED Indicators 7. LED Indicators Status Indicators Figure 9. Status LED indicators LED Indication Description No power Green Normal operation WLAN WLAN disabled or no power Blue, blinking Access Point: No clients, awaiting connections Blue Access Point: Connected to at least one Client Client: Connected to Access Point...
  • Page 27 ® ™ Link Quality/Mode Indicators Anybus Wireless Bridge II CAN Link Quality/Mode Indicators The Link Quality/Mode Indicators are used to indicate Bluetooth quality, selected Easy Config mode and update status in Recovery Mode. Figure 10. Link Quality/Mode indicators Table 5. RSSI (WLAN Client) / Link Quality (Bluetooth PANU) Description LED is off LED is off...

  • Page 28: Technical Specifications

    ® ™ Anybus Wireless Bridge II CAN Technical Specifications 8. Technical Specifications Order Code AWB3006 AWB3016 Serial interface CAN 2.0A/B (11/29 bit identifier). CAN Bitrate 10 kbps to 1000 kbps freely selectable. Up to 28 freely customizable CAN receive pass-through filters. Advanced settings for Prescaler, Time Seg 1+2, SJW.
  • Page 29 ® ™ Technical Specifications Anybus Wireless Bridge II CAN Order Code AWB3006 AWB3016 Power supply 9-30 VDC (-5% +20%), Cranking 12 V (ISO 7637-2:2011 pulse 4). Reverse polarity protection. Power consumption 0.7 W idle, 1.7 W max (54mA@24VDC with Wireless LAN and 36mA@24VDC with Bluetooth) Enclosure material Plastic PC/ABS (Bayblend FR3010) Mechanical rating...
  • Page 30 This page is intentionally left blank.
