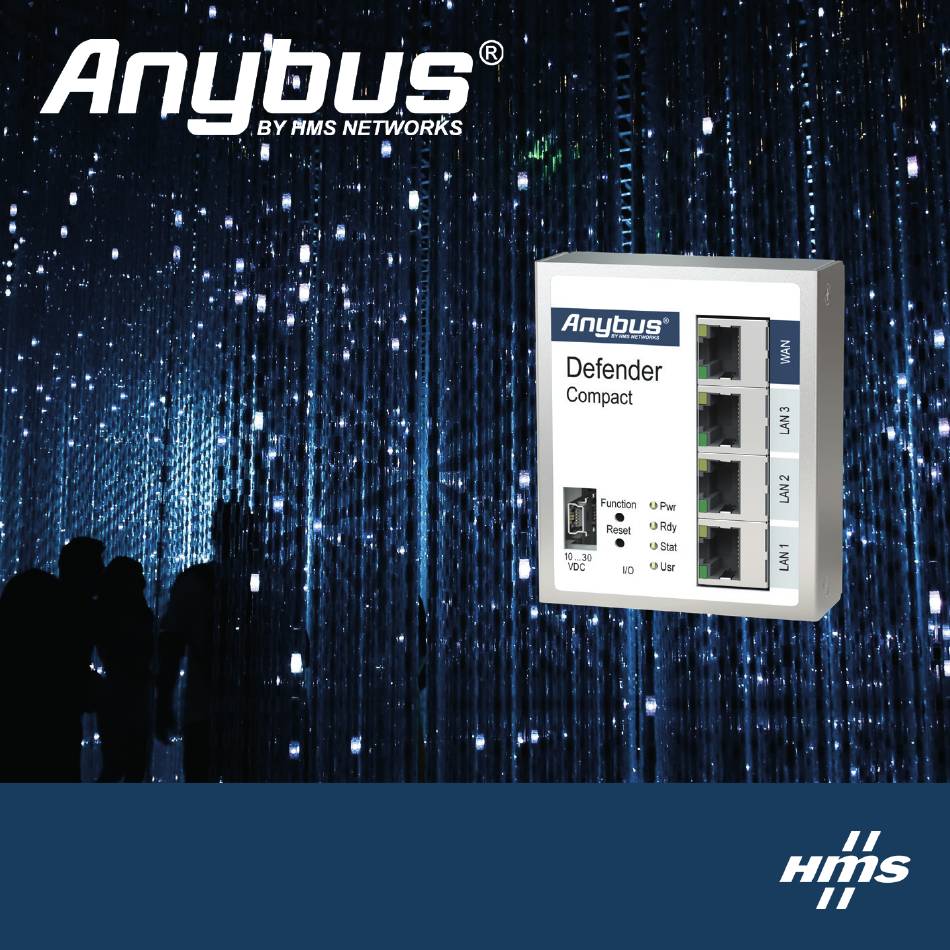

NFH100
Anybus Defender Compact
Quick start-up guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Anybus Defender Compact and is the answer not in the manual?

Questions and answers

Related Manuals for HMS Networks Anybus Defender Compact

Summary of Contents for HMS Networks Anybus Defender Compact

  • Page 1 NFH100 Anybus Defender Compact Quick start-up guide...

  • Page 2: Table Of Contents

    Include in delivery ��������������������������������������������������������������������������������������������������������������������������������  7 Displays, controls and connections �����������������������������������������������������������������������������������������������������  8 Getting started �����������������������������������������������������������������������������������������������������������������������������������  10 Using the Anybus Defender Compact in bridge mode ����������������������������������������������������������������������  12 Using the Anybus Defender Compact in gateway mode �������������������������������������������������������������������  13 Configuration of theAnybus Defender Compact �������������������������������������������������������������������������������  14 Factory settings on delivery ���������������������������������������������������������������������������������������������������������������...

  • Page 3: Safety Instructions

    Safety instructions • Only qualified specialist personnel may install, start • The router may only be connected to devices, which up, and operate the router. The national safety and meet the requirements of EN 60950� accident prevention regulations must be observed� • The router is for indoor use only� • The device is built to the latest technological stan- • Never open the router chassis. Unauthorized dards and recognized safety standards (see Declara- opening and improper repair can pose a danger to tion of Conformity)� the user. Unauthorized modifications are not cover- • The device is only intended for operation in the con- ed by the manufacturer’s warranty� trol cabinet and with SELV according to IEC 60950/ EN 60950/VDE 0805� Opening up the device voids the warranty! NOTE: Electrostatic Discharge! Observe the necessary safety precautions when handling components that are vulnerable to electrostatic discharge (EN 61340-5-1 and IEC 61340-5-1)! Maintenance...

  • Page 4: Using Open Source Software

    Using Open Source Software 3.1 General Information Our products contain, amongst others, so-called open-source software that is provided by third parties and has been published for free public use. The open-source software is subject to special open-source software licenses and the copyright of third parties. Basically, each customer can use the open-source soft-ware fre- ely in compliance with the licensing terms of the respective producers. The rights of the customer to use the open-source software beyond the purpose of our products are regulated in detail by the respective concerned open-source software licenses. The customer use the open-source software freely, as provided in the respective effective license, beyond the purpose that the open-source software gets in our products. In case there is a contradiction between the licensing terms for one of our products and the respective open-source software license, the respective relevant open-source software license takes priority over our licensing terms, as far as the respective open-source software is concerned by this.

  • Page 5: Special Liability Regulations

    Requests must be directed to the following address, if possible under specification of the serial number: HMS Networks AB Tel. +46 35 17 29 56 Stationsgatan 37, Box 4126 sales@hms.se 300 04 Halmstad SWEDEN Special Liability Regulations We do not assume any warranty or liability, if the open-source software programs contained in our product are used by the customer in a manner that does not com-ply any more with the purpose of the contract, which is the basis of the acquisition of our product. This concerns in particular any use of the open-source software programs outside of our product. The warranty and liability regulations that are pro-vided by the respective effective open-source software license for the respective open-source software as listed in the following are effective for the use of the open-source software beyond the purpose of the contract. In parti- cular, we are not liable, if the open-source software in our product or the complete software configu-ration in our product is changed. The warranty granted with the contract, which is the basis of the acquisition of our product, is only effective for the unchanged open-source software and the unchanged software confi- guration in our product. Used Open-Source Software For a list of the open-source software used in this product see www.hms-networks.com - 5 -...

  • Page 6: Brief Description

    Brief description The Anybus Defender Compact is a „self-learning“ easy-to-configure industrial firewall. It can be used in both bridge mode and gateway mode. Bridge mode Gateway mode Network A Network A Network A Network B 0 1 0 192.168.0x/24 192.168.0x/24 192.168.0x/24 172.16.0x/24 The configuration is made via the USB interface using the software Anybus Defender Compact nbNETFIXManager (not included in delivery). The software can be downloaded for free at https://goo.gl/g6FQDV Performance characteristics • Protects the machines in the network from attacks from the Internet. • Easy network segmentation with controlled routing and NAT. • Convenient learning mode makes creation of filter tables simple & easy. • Integration into existing networks.

  • Page 7: Include In Delivery

    Include in delivery Please check that your delivery is complete: 1 x Plug-in bridge 1 x Anybus Defender 1 x cabel USB A - USB-mini B 1 x Quick start-up quide Compact; ABD1004-NATFW Should any of these parts are missing or damaged, please contact the following address: HMS Networks AB Tel.: +46 35 17 29 56 Stationsgatan 37, Box 4126 www.hms-networks.com 300 04 Halmstad SWEDEN Please keep the original box and the original packaging in case you need to send the device for repair at a later date. - 7 -...

  • Page 8: Displays, Controls And Connections

    3 x LAN interface 1 x USB slave 2.0 mini – 0V DC connection Power source connection 10 - 30 V DC Functional earth Prog Prog Function Digital input (10-30 V DC) (Low 0 – 3,2 V DC, High 8 – 30 V DC) Reset Stat Stat Digital input (10-30V DC) 10...30 10...30 (Low 0 – 3,2 V DC, High 8 – 30 V DC) - Function in preparation - * Input 1 can be used during initial startup to activate the Bridge mode with the packet filter switched off. The input is only evaluated until the Anybus Defender Compact has been configured once, then the state of input 1 is ignored. Designation Status Description Prog USB interface mini-B for connecting to the configuration PC. – (Programming) Button - function in preparation. Function – Button - performing a device restart (cold start). Reset – - 8 -...
  • Page 9 Designation Status Description Device power source is switched off or device is not connected to power source / LED off power pack� (Power) LED on Power source is connected to terminal block and switched on� LED After the system has been checked and started, the LED flashes for the duration of flashing the starting up process. (Ready) LED on The device is ready for operation� LED on The packet filter is active in both directions (WAN > LAN, LAN > WAN). Stat LED off The packet filter is INACTIVE in both directions (WAN > LAN, LAN > WAN). (Status) LED The packet filter is INACTIVE in at least one direction (WAN > LAN, flashing LAN > WAN). LED on The device is not configured. Usr (User) LED off The device was configured by the software mbNETFIX Manager. WAN connection (customer network, DSL router). orange LED Network data transfer active. flashing green Transfer rate = 100 MBit/s WAN LED LED on green Transfer rate = 10 MBit/s LED off...

  • Page 10: Getting Started

    10...30 After booting, the packet filter is functional earth (FE). INACTIVE. 2. Connect the terminals I/O 1 and + (=> I1 = high). That is, the WAN > LAN and LAN > WAN To do this, use the supplied Plug-in transitions are open. All pending connection bridge. attempts / connections are detected. 3. Connect the device to a power supply This mode is only active until the device – + FE (DC 10 – 30 V)� has been configured for the first time. Make sure the polarity is correct! NOTICE Input 1 is only evaluated until the Anybus Defender Compact has been configured once, then the state of input 1 is ignored. - 10 -...
  • Page 11 Function Reset Reset Stat Stat Stat Stat 10...30 10...30 Bridge mode with active 1. Connect equipotential bonding to the 10...30 10...30 packet filter (Security by default): functional earth (FE). After booting, both the packet filter and the learning mode are active. 2. Connect the device to a power supply (DC 10 – 30 V). That is, the WAN > LAN and Make sure the polarity is correct! LAN > WAN transitions are blocked. All pending connection attempts are detected� –...

  • Page 12: Using The Anybus Defender Compact In Bridge Mode

    Using the Anybus Defender Compact in bridge mode Network A Network A 0 1 0 192.168.0x/24 192.168.0x/24 If you use the Anybus Defender Compact in bridge mode and install it unconfigured in your network environment, start the device in bridge mode with packet filter INACTIVE (input 1 = HIGH). After booting, the packet filter is inactive and the learning mode is active. That is, the WAN > LAN and LAN > WAN transitions are open. All pending connection attempts / connections are detected. Input 1 is only evaluated until the Anybus Defender Compact has been configured once, then the state of input 1 is ignored. Use bridge mode if your network is on the LAN and WAN side of Anybus Defender Compact in the same network segment (see graphic above for example IP addresses). - 12 -...

  • Page 13: Using The Anybus Defender Compact In Gateway Mode

    10 Using the Anybus Defender Compact in gateway mode Network A Network B 192.168.0x/24 172.16.0x/24 If you use the Anybus Defender Compact in gateway mode, start the device in Bridge mode with active packet filter. After booting, both the packet filter and the learning mode are active. That is, the WAN > LAN and LAN > WAN transitions are blocked. All pending connection attempts are detected. Use gateway mode if your network is on the LAN and WAN side of the Anybus Defender Compact in different network segments (see graphic above with the IP example addresses). - 13 -...

  • Page 14: Configuration Of Theanybus Defender Compact

    11 Configuration of the Anybus Defender Compact The configuration of the firewall is made via the USB interface using the software Anybus Defender Compact nbNETFIXManager (not included in delivery). In addition to a convenient graphical user interface (GUI) and public-key authentication, the „Anybus Defender Compact nbNETFIXManager “ offers all the functions that an automation engineer knows from his PLC programming environment (eg export, import, duplicate, online comparison, online functions, etc.). Download the configuration software „Anybus Defender Compact nbNETFIXManager “ for free under the following address: https://goo.gl/g6FQDV After the installation, you can configure the Anybus Defender Compact for the respective purpose using 12 Factory settings on delivery Default settings Anybus Defender Compact: IP address (USB port): 169.254.0.1 Subnet Mask: 255.255.0.0 User 1:...

  • Page 15: Technical Data

    14 Technical data Voltage V (DC) 10 - 30 V DC (SELV and Limited Energy circuit) Power consumption max. 250 mA @ 24 V Operating temperature -40 – 75 °C Dimensions 69 mm x 33,5 mm x 92,5 mm (W x D x H) Mounting DIN rail mounting (based on DIN EN 50022) Extract from the technical data sheet. Find the complete technical data in our download portal at www.hms-networks.com. 15 Technical support For technical support (FAQ, troubleshooting, most recent information, etc.) see our website www.hms-networks.com. For support enquiries, always give the serial number of your Anybus Defender Compact� E-mail: sales@hms.se Tel.: +46 35 17 29 56 - 15 -...

  • Page 16: Disposal

    In the interests of environmental protection, final holders must collect old devices separately from unsorted municipal waste at the end of their service life. Old batteries and accumulators that are not enclosed by the old device, as well as lamps that can be removed from the old device without destroying them, must be separated from the old device in a non-destructive manner before they are handed over to a collection point. The final holder is responsible for deleting personal data on the old devices to be disposed of. Red Lion offers the possibility of returning and disposing of old devices. Details can be found at www.mbconnectline.com/disposal. Do not despose of old devices into household waste! Only for EU countries: Dispose of the device in accordance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU - WEEE. Simplified CE Declaration of Conformity Hereby, HMS Networks AB acknowledges that the device Anybus Defender Compact is in complies with the essential requirements and other relevant provisions of directive 2014/30/EU. The declaration of conformity can be found at: https://hms-networks.com. HMS Networks AB Stationsgatan 37, Box 4126 Tel.: +46 35 17 29 56 300 04 Halmstad sales@hms.se SWEDEN www.hms-networks.com PROG. CNTLR. E482663 - 16 -...
