4.2.2 Displaying running-state parameters

FWD running
Running frequency:
Set frequency:
Bus voltage:
PRG
ESC
QUICK
JOG
RUN

4.2.3 Displaying fault information

Fault code: 23
23: Braking unit fault (bCE)
PRG
ESC
QUICK
JOG
RUN

4.2.4 Keypad setting and function menu selection

Press and hold the SHIFT and DOWN keys for 3 seconds when the keypad is powered on. The keypad then enters the
function menu selection mode.
1. Hardware test: used to check the keys, displays and indicators.
2. Flash date program: used only when the FLASH configuration table is updated.
3. Language select: used to select the language (English).
4. Keypad SW ver: used to check the MCU and Flash software versions.
5. Converter Type Select: VFD series selection. Option 1: GD3000; Other: reserved.
Goodrive3000 series English mode is selected by default.

4.2.5 Editing function codes

You can press the PRG/ESC key to enter the editing mode in stopped, running, or fault alarm state (if a user password is
used, see the description of P07.00 for both VFD rectifier and inverter). You can press the DATA/ENT key to enter the
function parameter display interface. In the function parameter display interface, you can press the DATA/ENT key to save
parameter settings or press the PRG/ESC key to exit the parameter display interface.

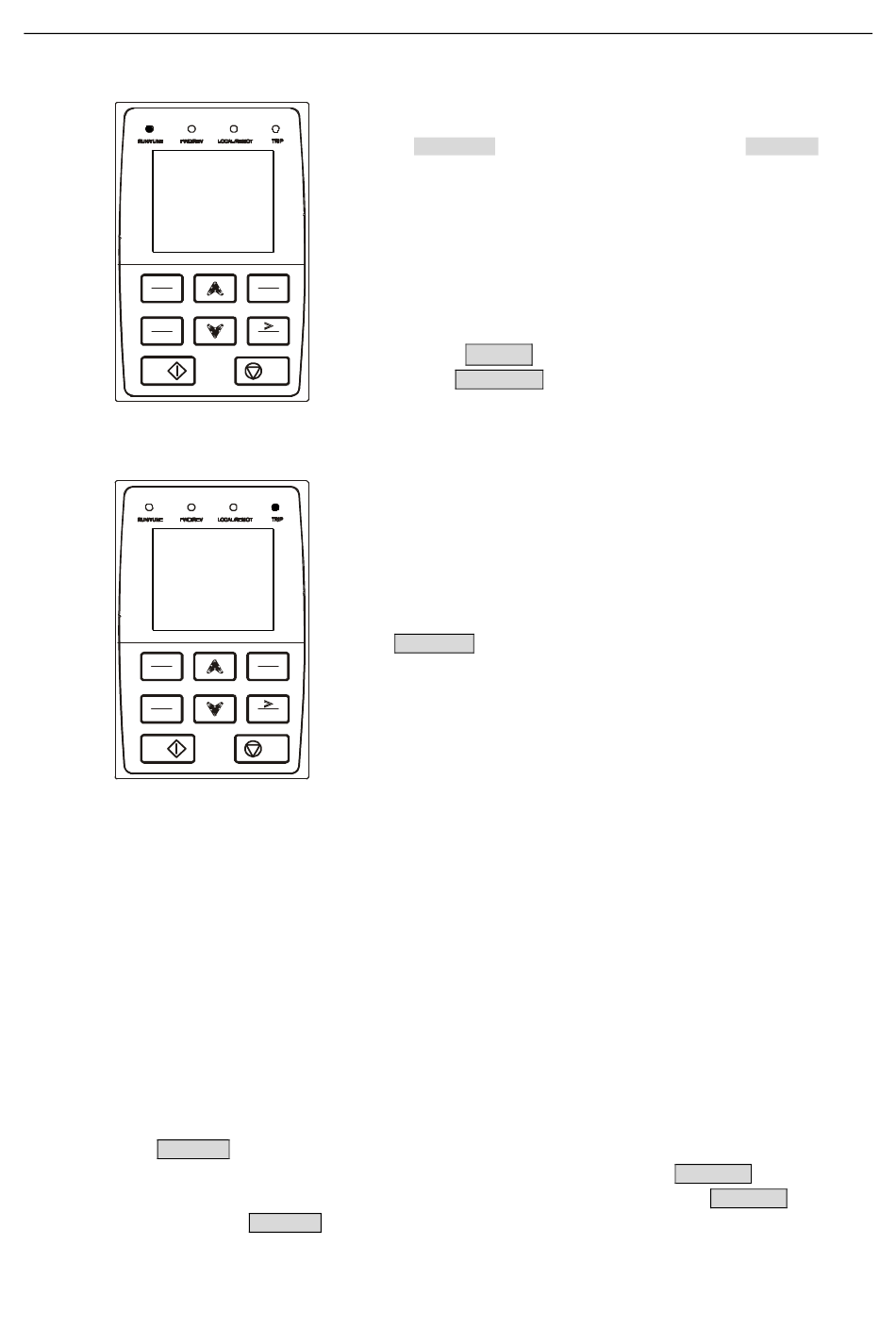

After receiving a valid running command, the VFD enters the
running state, and the keypad displays running-state parameters,
with the RUN/TUNE indicator on. The on/off state of the FWD/REV
indicator is determined by the actual running direction. See the
50.00Hz
figure.
50.00Hz
950V
In the running state, various kinds of parameters can be displayed.
You can determine which parameters are displayed by setting the
binary bits of P07.05, P07.05. For definitions of the bits, see the
DATA
ENT
description of P07.05 in Chapter 5 and the description of P07.05
and P07.06 in Chapter 6.
SHIFT
You can press 》/SHIFT to shift selected parameters from left to
STOP
RST
right or press QUICK/JOG to shift selected parameters from right
to left.
In fault
After detecting a fault signal, the VFD enters the fault alarm state
immediately, and the keypad displays fault information. The TRIP
indicator on the keypad is on. You can perform fault reset by using
the
DATA
commands.
ENT
If the fault persists, the fault code is continuously displayed.
SHIFT
STOP
RST
STOP/RST key, control terminals, or communication
