Goodrive3000 series medium voltage VFD

4.1 Keypad display

The LCD keypad is a standard configuration for Goodrive3000 series VFD. The following figures show the keypad
appearances.
Programming key

4.1.1 Function of keys

Key
Confirmation key
Stop/Reset key
Quick key
Run key
Table 4-1 Function of keys
Name
Programming
Press it to enter or exit level-1 menus or delete a parameter.
key
Press it to enter menus in cascading mode or confirm the setting of a
parameter.
UP key Press it to increase data or move upward.
Down key Press it to decrease data or move downward.
Press it to select display parameters in the interface for the VFD in
Shifting key stopped or running state or to select digits to change during parameter
setting.
Run key Press it to run the VFD when using the keypad for control.
When the VFD is in running state, this key is used to stop the VFD and the
function of this key is restricted by P07.04. When the VFD is in faulty state,
this key can be used to reset faults and it is not restricted by P07.04.
The function is determined by P07.03.
Multifunction 0: Jogging (only apply to keypad control)
shortcut key 1: Switch between forward and reverse rotations (only apply to keypad
control)

4 HMI

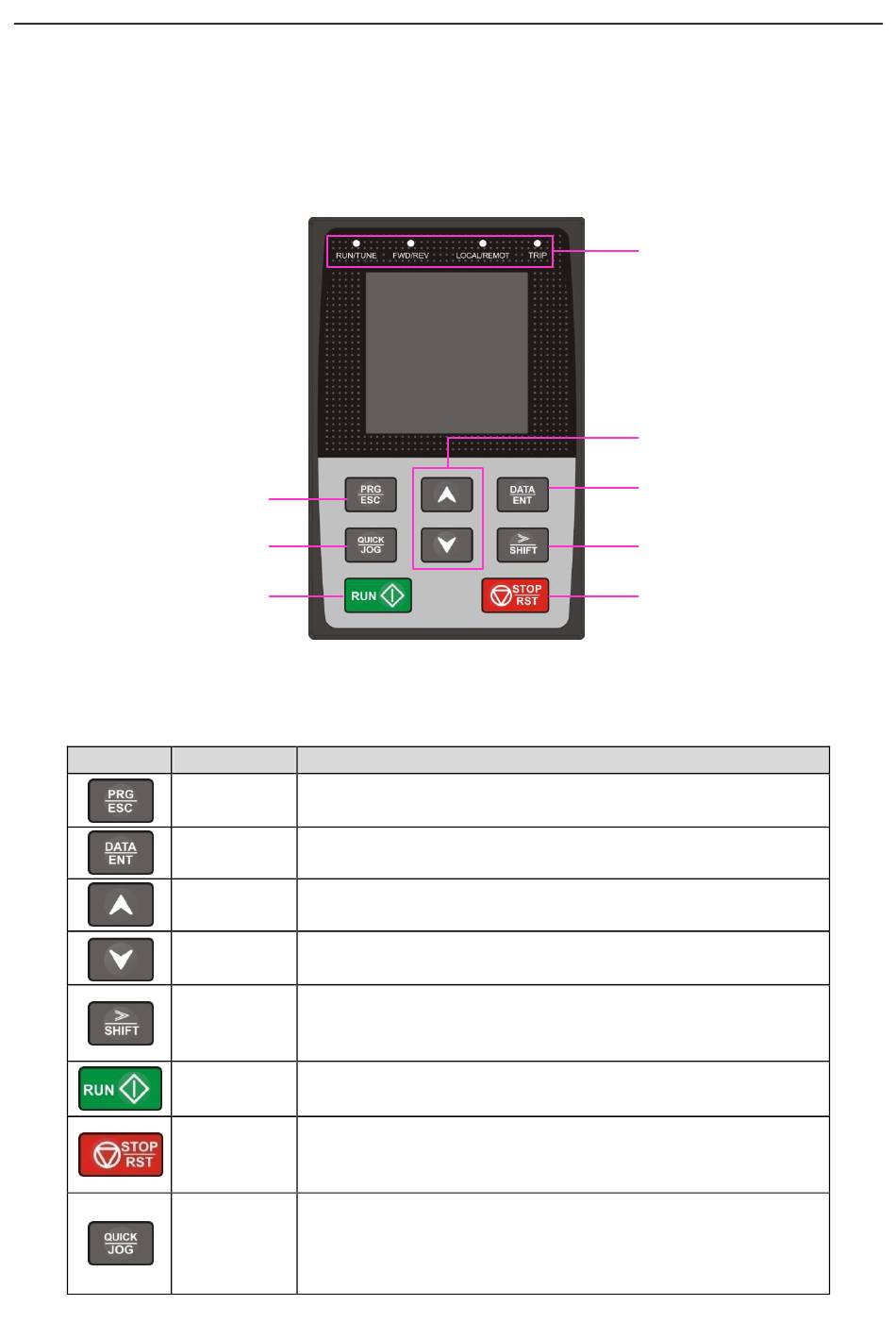

Figure 4-1 Keypad
Function
-17-
State LED
UP key/
DOWN key
Entry key
Right-shift key
Stop/Reset key
HMI
