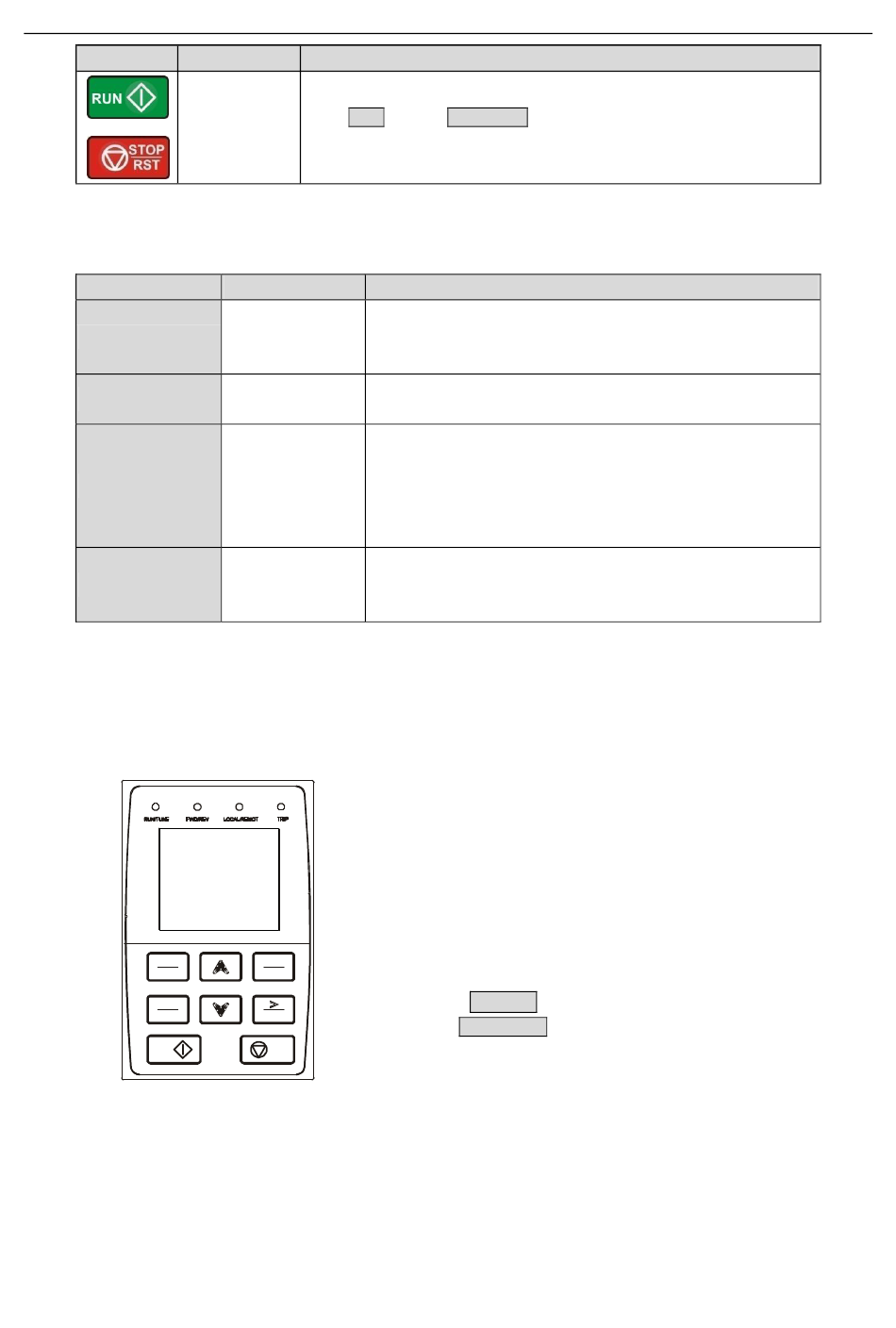

4.1.2 Indicator instruction

Indicator
RUN/TUNE
FWD/REV
LOCAL/REMOT
TRIP

4.2 Keypad display

The keypad displays information such as the stopped-state parameters, running-state parameters, and fault status,
and allows you to modify function codes.

4.2.1 Displaying stopped-state parameters

Stopping state
Set frequency:
Bus voltage:
Input terminal state:
PRG
ESC
QUICK
JOG
RUN
Name
When RUN key and STOP/RST key are pressed simultaneously, the VFD
will coast to stop
Table 4-2 Indicators
Name
Off: The VFD is stopped
State indicator Blinking: The VFD is in parameter autotuning
On: The VFD is running
Forward or reverse Off: The VFD is running forward
running indicator On: The VFD is running reversely
Indicates whether the VFD is controlled through the keypad,
terminals, or communication.
Control mode Off: The VFD is controlled through the keypad
Blinking: The VFD is controlled through terminals
On: The VFD is controlled through remote communication
Off: The VFD is in normal state
Fault indicator Blinking: The VFD is in pre-alarm state
On: The VFD is in faulty state
When the VFD is in stopped state, the keypad displays
stopped-state parameters.
50.00Hz
In the stopped state, various kinds of parameters can be
950V
00
displayed. You can determine which parameters are displayed by
setting the binary bits of P07.05. For definitions of the bits, see the
description of P07.05 in Chapter 5 and the description of P07.07
DATA
in Chapter 6.
ENT
You can press 》/SHIFT to shift selected parameters from left to
SHIFT
right or press QUICK/JOG to shift selected parameters from right
STOP
to left.
RST
Function
Indicator instruction
