9.2.3 Deliverables for EC-TX103 communication card

The packaging box of EC-TX103 communication card includes:
1. EC-TX103 communication card
2. Three screws (M3×10)
3. Communication card manual
If any omission is found, please contact us or the supplier. Manual information may be subject to change without prior
notice.

9.3 Card installation

9.3.1 Mechanical installation

Installation environment
1. Ambient temperature: 0° C–+40° C
2. Relative humidity: 5%–95%
3. Other weather conditions: No condensation, ice, rain, snow, or hail; solar radiation < 700W/m
4. Salt spray and corrosive gas content: Pollution degree 2
5. Dust and solid particle content: Pollution degree 2
6. Vibration and impact: 5.9m/s
Assembly procedure
Step 1 Insert the EC-TX103 communication card to the target position on the control board, and fasten it.
Step 2 Place the bus terminator of EC-TX103 communication card to the required position.
Note:
Before installation, disconnect power to the equipment and wait at least 3 minutes to ensure that the capacitor

discharging is completed. Cut off dangerous voltages from external control circuits to unit inputs and inputs.
Some electronic components on the communication card circuit board are sensitive to electrostatic discharge. Do

not touch the circuit board with hands. If operating the electronic board is unavoidable, wear grounded wrist straps
when handling the board.
EC-TX103
communication
card
VFD

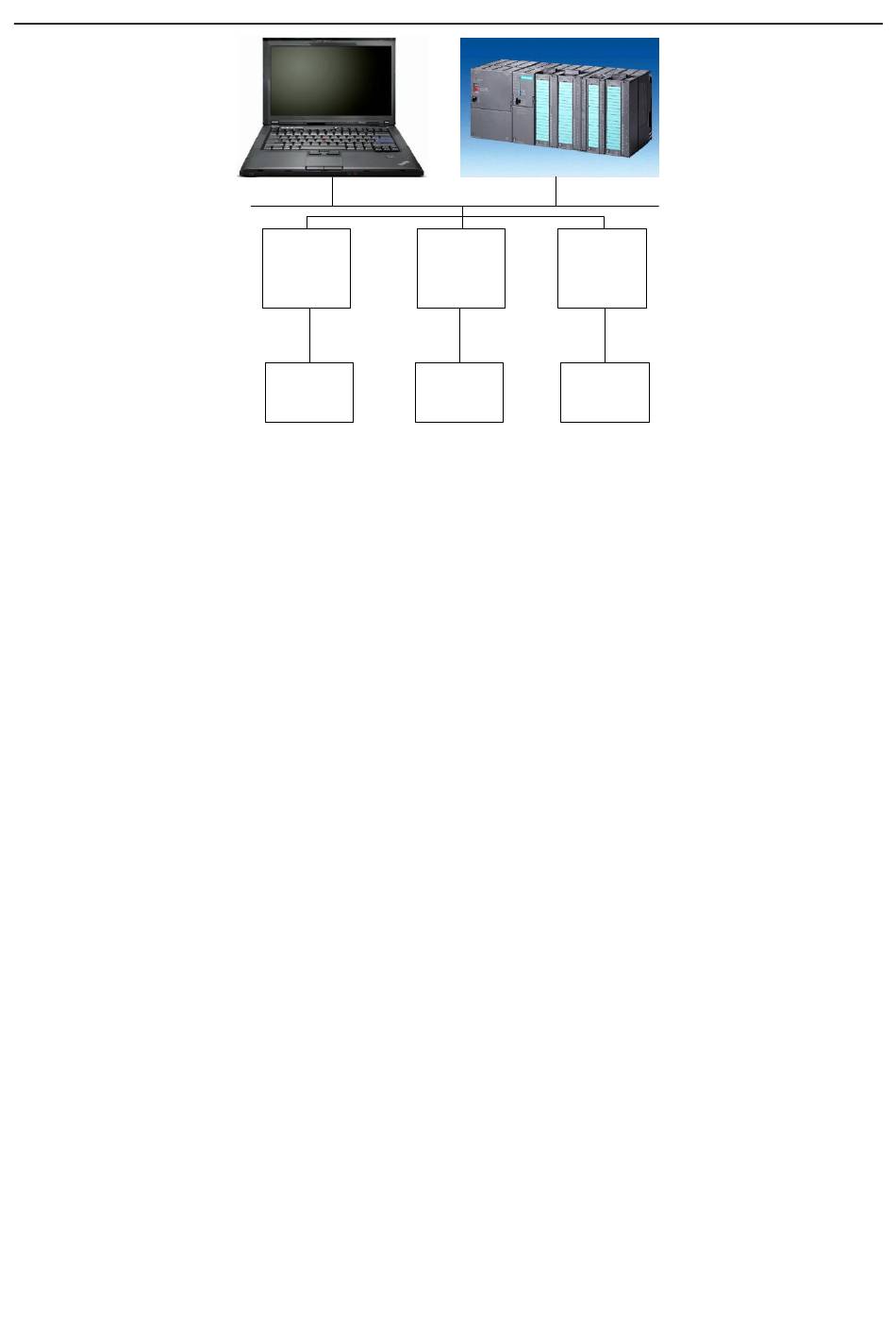

Figure 9-2 PROFIBUS communication structure
2
(0.6g) at the sine vibration of 9–200Hz
PLC
EC-TX103 EC-TX103
communication communication
card card
VFD VFD
-212-
PROFIBUS communication
2
; air pressure: 70–106kPa
