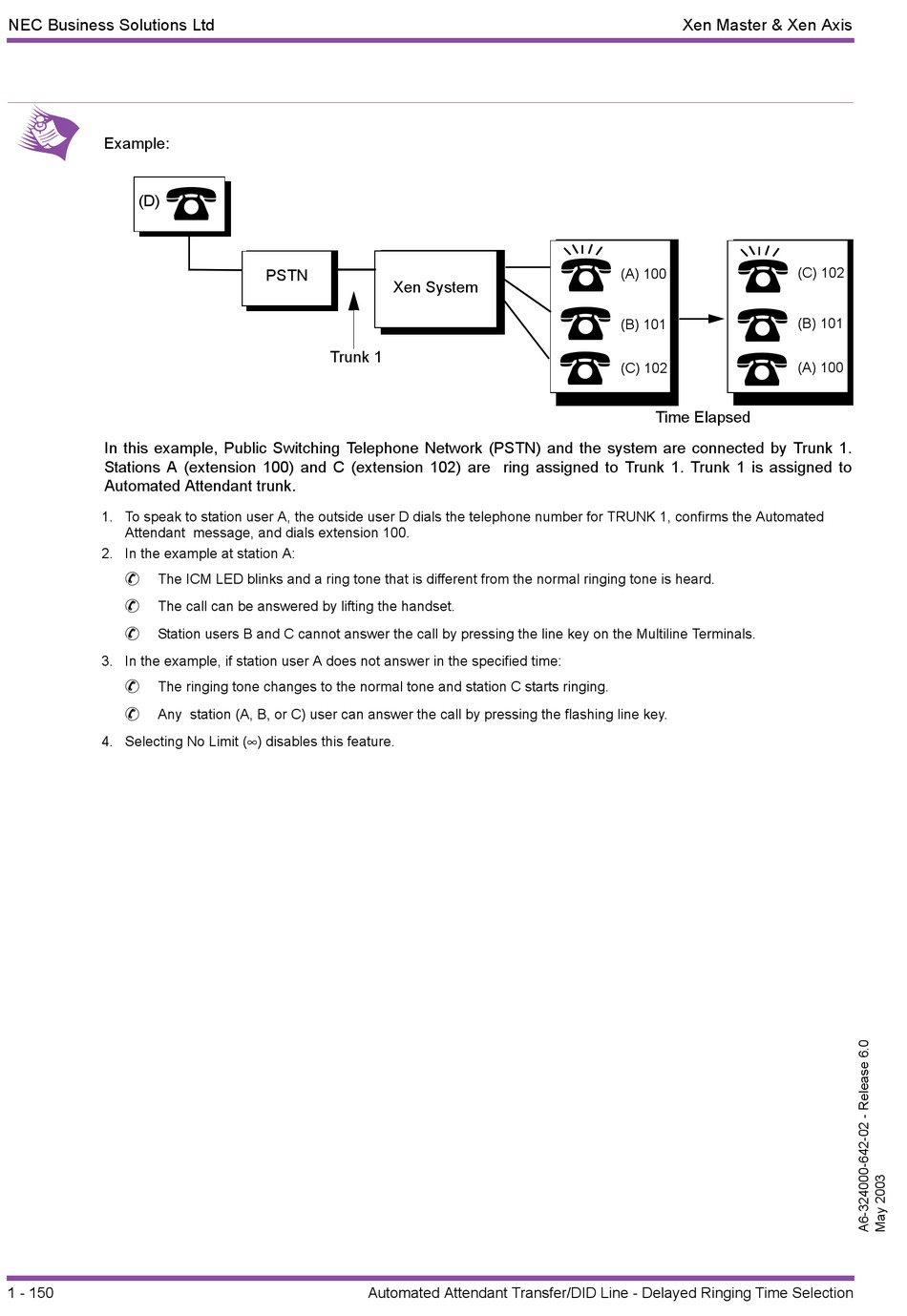

Example:
(D)
In this example, Public Switching Telephone Network (PSTN) and the system are connected by Trunk 1.
Stations A (extension 100) and C (extension 102) are ring assigned to Trunk 1. Trunk 1 is assigned to
Automated Attendant trunk.
1. To speak to station user A, the outside user D dials the telephone number for TRUNK 1, confirms the Automated
Attendant message, and dials extension 100.
2. In the example at station A:
The ICM LED blinks and a ring tone that is different from the normal ringing tone is heard.
The call can be answered by lifting the handset.
Station users B and C cannot answer the call by pressing the line key on the Multiline Terminals.
3. In the example, if station user A does not answer in the specified time:
The ringing tone changes to the normal tone and station C starts ringing.
Any station (A, B, or C) user can answer the call by pressing the flashing line key.
4. Selecting No Limit (∞) disables this feature.
1 - 150
PSTN
Xen System
Trunk 1
Automated Attendant Transfer/DID Line - Delayed Ringing Time Selection
Xen Master & Xen Axis
(A) 100
(B) 101
(C) 102
Time Elapsed
(C) 102
(B) 101
(A) 100
