QSHT 5700 Inverter Safe Torque-off Function
Hardwired Safe Torque-off

Safe Torque-off Wiring Requirements

The safe torque-off (STO) connector uses spring tension to secure the wire. Depress the num-
bered tab along side each pin to insert or release each wire. Two rows of pins are provided for
inverter-to-inverter connections. Wire must be copper with 75 °C (167 °F) minimum rating.
NOTICE
IMPORTANT Stranded wires must terminate with ferrules to prevent short
Safety (STO) Connector Plug
Safe Torque-off (STO)
Connector Pin
1
2 10
3 11
4 12
5 13
6 14
7 15
8 16
9
* This connector uses spring tension to hold wires in place.
276
The National Electrical Code and local electrical codes take
precedence over the values and methods provided.
circuits, per table D7 of ISO 13849.

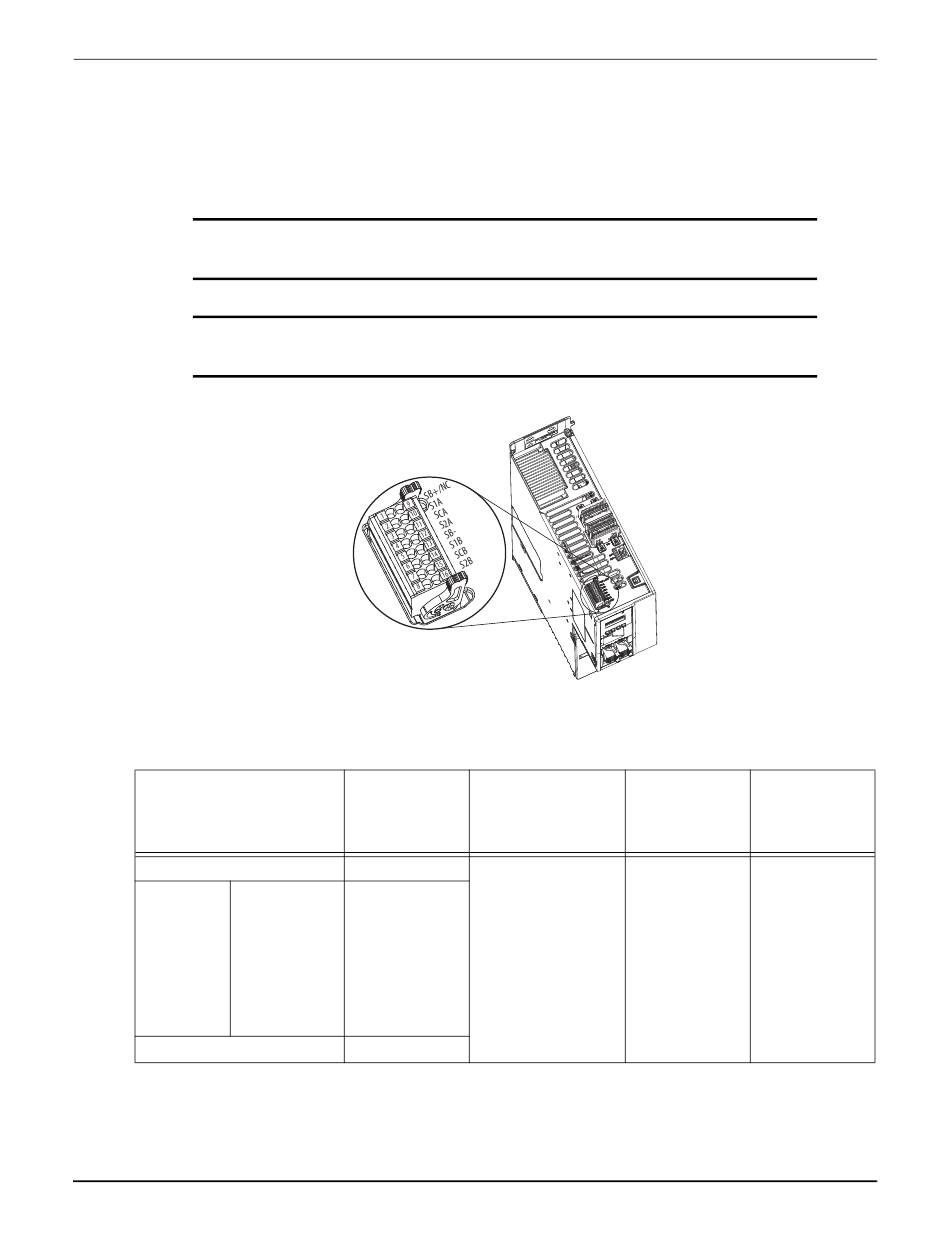

Figure 7-7: Safe Torque-off (STO) Terminal Plug
Table 7-5: Safe Torque-off (STO) Connector Plug Wiring
Signal
SB+
S1A
SCA
S2A
SB-
S1B
SCB
S2B
NC
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
QSHT 5700 Inverter, Top View
(MMI-HT-C2198-D032)
Recommended
Wire Size Length
2
mm (AWG) mm (in.)
0.14...1.5
10 (0.39)
(26...16)
Strip Torque
Value
N•m (lb•in)
*
—
MagneMotion
