QSMC Motor Controller

The QSMC motor controller is the external motor drive for the 1 m QSHT motors and the
1/2 m QSHT double-wide motors. One controller is required for each motor.
700-1563-00
Weight: 3.6 kg [7.9 lb]

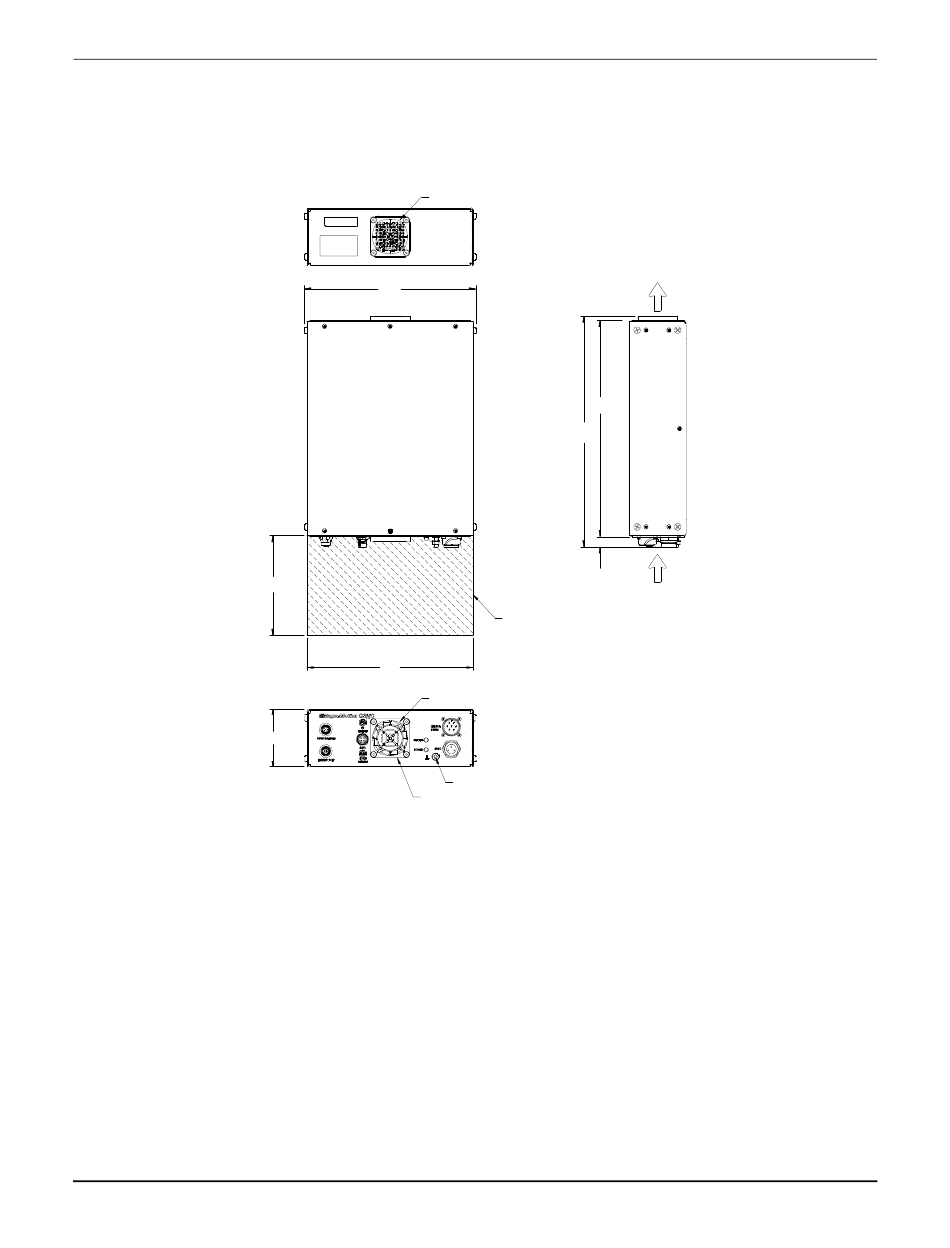

Figure 4-4: QSMC Motor Controller Mechanical Drawing
NOTE: Each vent must be clear for unobstructed airflow.
Mounting kit available for standard 19 in electronics rack.
Ingress Protection Rating: IP20.
See QSMC Motor Controller on page 142
Contact ICT Customer Support for current detail drawings.
Exposed Materials
The motor controller provides openings for airflow and must not be installed where harsh con-
ditions exist.
QuickStick HT User Manual
KEEP AREA FREE
FOR AIRFLOW
[10.3]
261
[6.0]
152
[9.98]
253.5
KEEP AREA FREE
FOR AIRFLOW
[3.44]
87.3
CUSTOMER SERVICEABLE
FAN FILTER MEDIA
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Specifications and Site Requirements
[12.99]
330.0
[13.87]
352.3
[0.65]
16.5
CABLE / CONNECTOR
EXCLUSION AREA
M6 GND STUD
All Dimensions in Millimeters [Inches]
for the electrical specifications.
Mechanical Specifications
AIR FLOW
AIR FLOW
