QuickStick HT 5700 Inverter Connectors

Pinouts for all connectors on the QSHT 5700 inverter are provided. The mating connectors are
supplied as part of the inverter module connector set (2198-KITCON-D032-L).

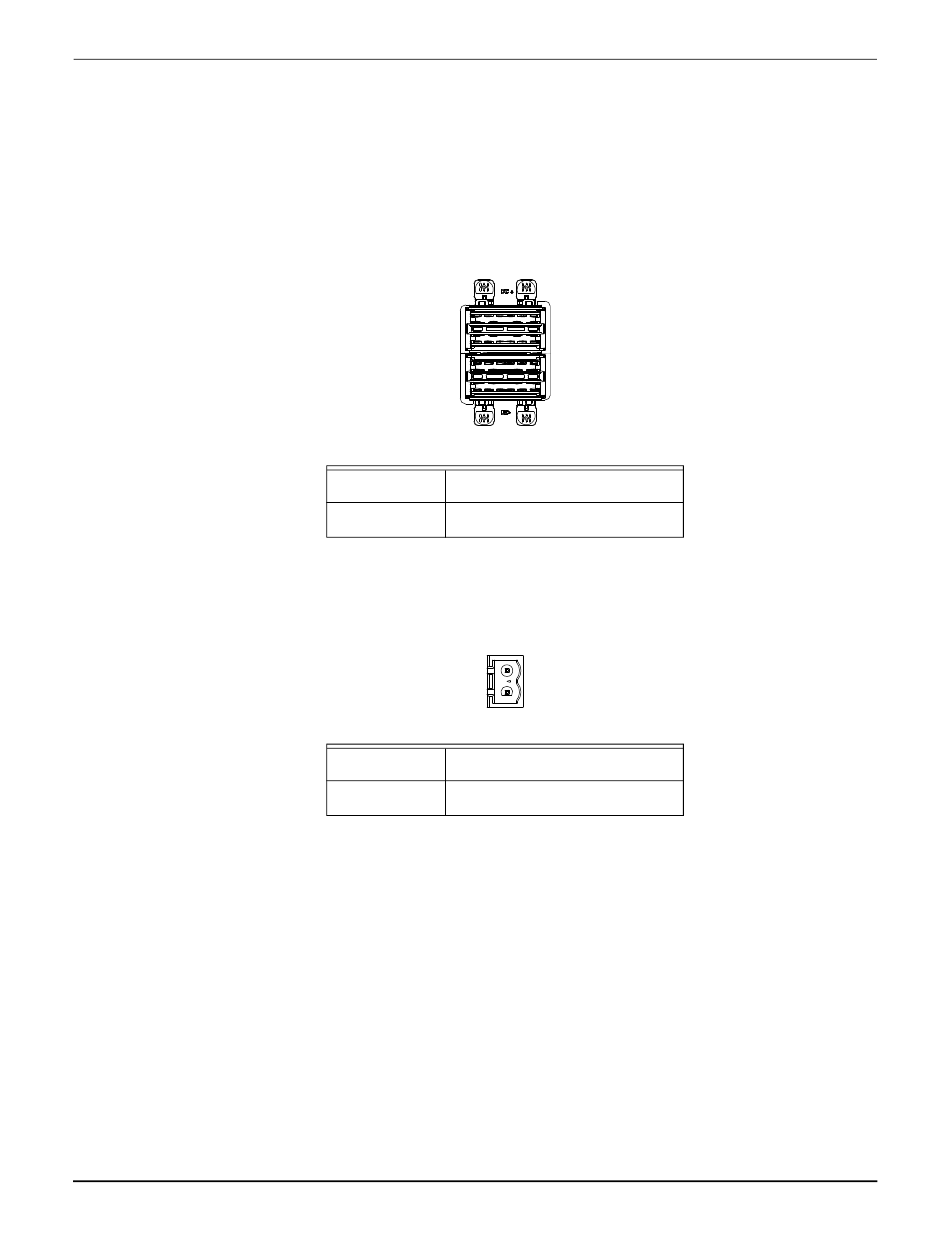

Table 4-37: QSHT 5700 Inverter 24V DC Control Power Connector Pinout
QuickStick HT User Manual
Table 4-36: QSHT 5700 Inverter DC Power Bus Pinout
DC+
DC-
24V-
24V+
24V-
24V+
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Specifications and Site Requirements
Electrical Specifications
458–747V DC
DC Return
DC Return
24V DC
