QSMC HVDC Power Cable

A 2 m long HVDC Power cable is available for the QSMC motor controllers, which provides
stator power to the motor controller. Contact MagneMotion for replacement cables. The
HVDC Power cable connects directly to the HVDC power bus. Each wire in the cable is
color-coded for identification.
100-2384-00
Motor Controller
GND/SHIELD
PWR RTN
PWR HI
152

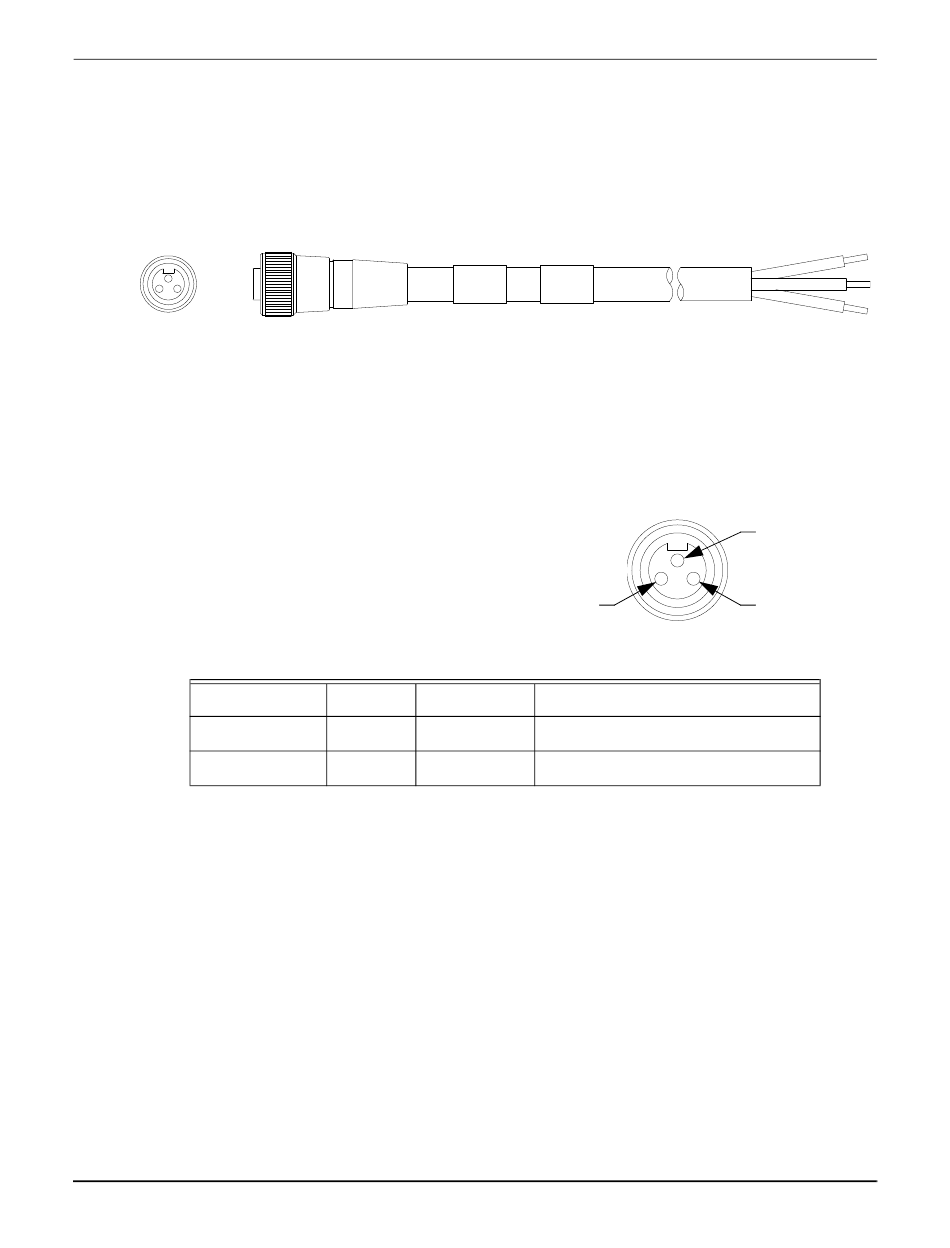

Figure 4-18: QSMC HVDC Power Cable
Table 4-30: QSMC HVDC Power Cable Pinouts
Wire Individual
Gauge Terminals
14 AWG Grn
14 AWG Blk
14 AWG Wht
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Power Distribution
3
Powerfast, 3-Pin, Female
1
2
3
1
2
MagneMotion
