QSMC Rack Mounting Bracket

The rack mounting bracket can be used for mounting the QSMC motor controllers in a stan-
dard 19 in electronics rack.
700-2029-xx
Exposed Materials
Carbon Steel.
1018 Steel.
Anodized Aluminum.
QuickStick HT User Manual
114.5
[4.51]
[0.13]

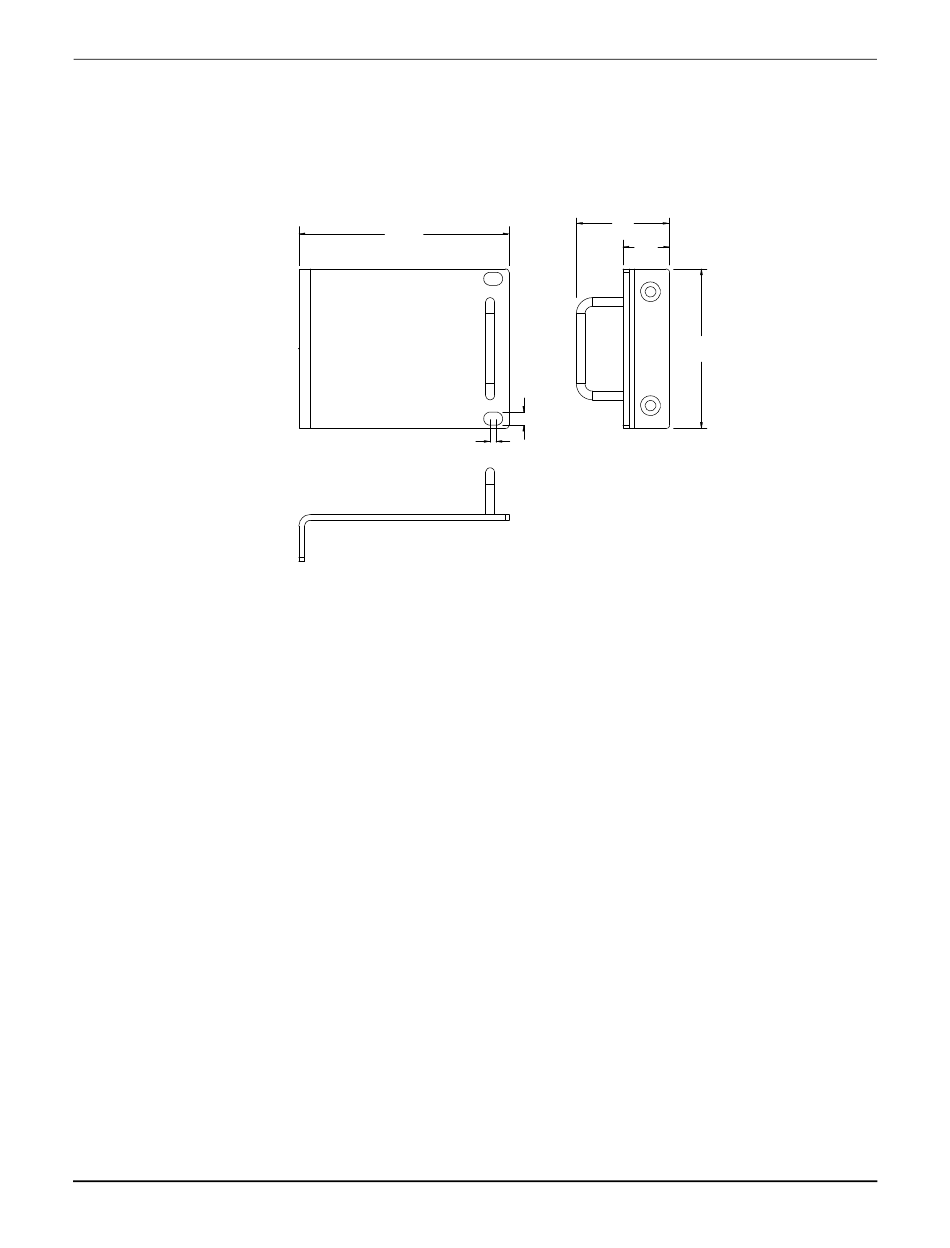

Figure 4-6: Rack Mounting Bracket Mechanical Drawing
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Specifications and Site Requirements
50.8
[2.00]
[1.00]
7.1
[0.28]
3.3
All Dimensions in Millimeters [Inches]
Mechanical Specifications
25.4
86.9
[3.42]
129
