Stator Drive Connector Pinout; Stator Sense Connector Pinout - Rockwell Automation MagneMotion QuickStick HT User Manual

Specifications and Site Requirements
Electrical Specifications
NOTICE
134
Hot-plugging of either connector to the motor is not sup-
ported and can damage internal components.

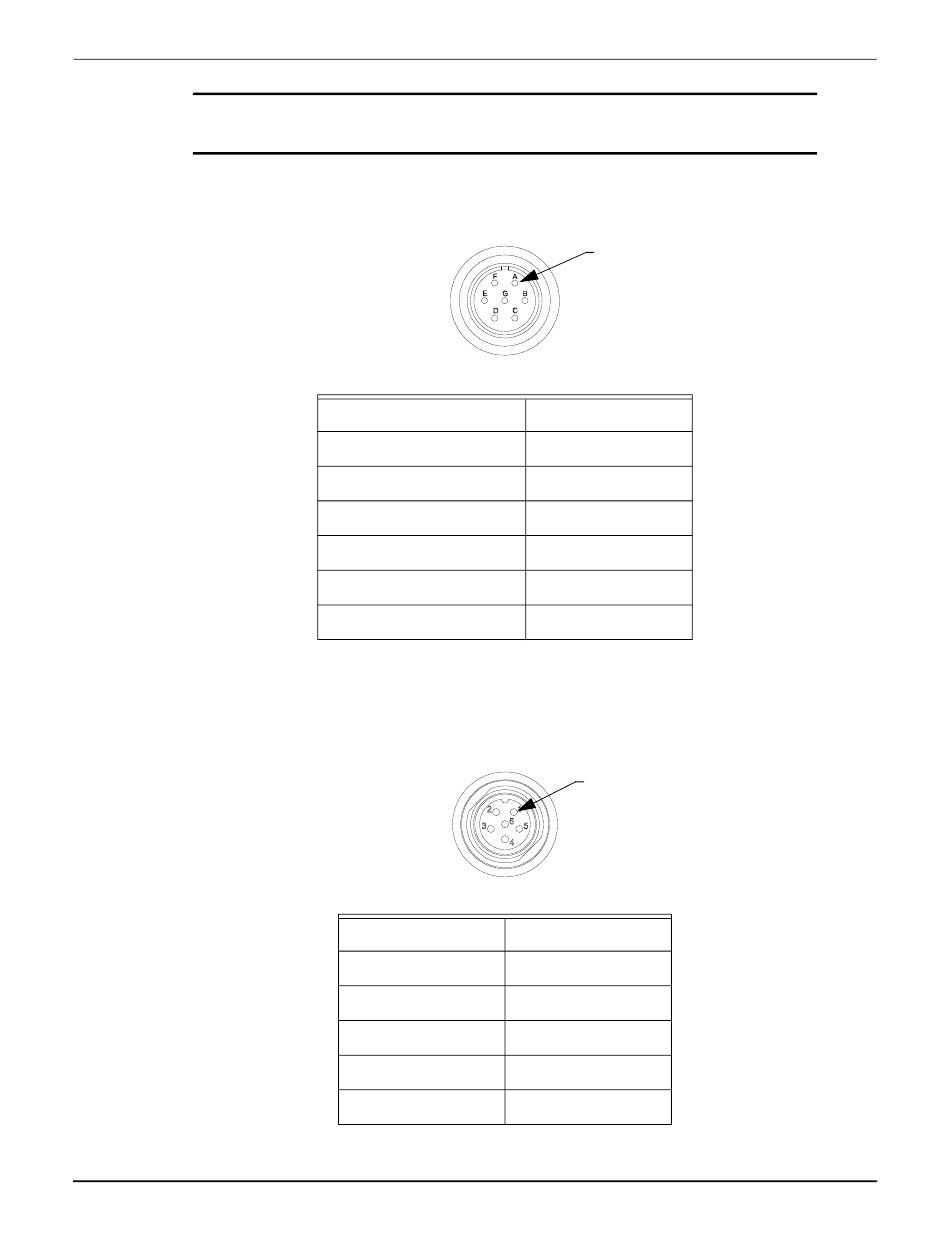

Table 4-3: Stator Drive Connector Pinout
3-Pt Bayonet, Size 16S, 7-Pin, Male
Stator Block 1, Phase A
Stator Block 1, Phase B
Stator Block 1, Phase C
Stator Block 2, Phase A
Stator Block 2, Phase B
Stator Block 2, Phase C
GND
* 1/2 m motor uses only Stator 1.
Table 4-4: Stator Sense Connector Pinout
M12 Eurofast, 6-Pin, Male
+V
GND
RxD-
RxD+
TxD+
TxD-
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
A
*
A
B
C
D
E
F
G
1
1
2
3
4
5
6
MagneMotion
