Installation
Transport System Installation
Cable Jacket
12.0 (0.5)
IMPORTANT The drain wire from the 2090-Series motor cable must be
Install the Connector Kit
To install the connector kit, see
202
Cable Shield
Drain Wire
97 (3.8)
110 (4.3)

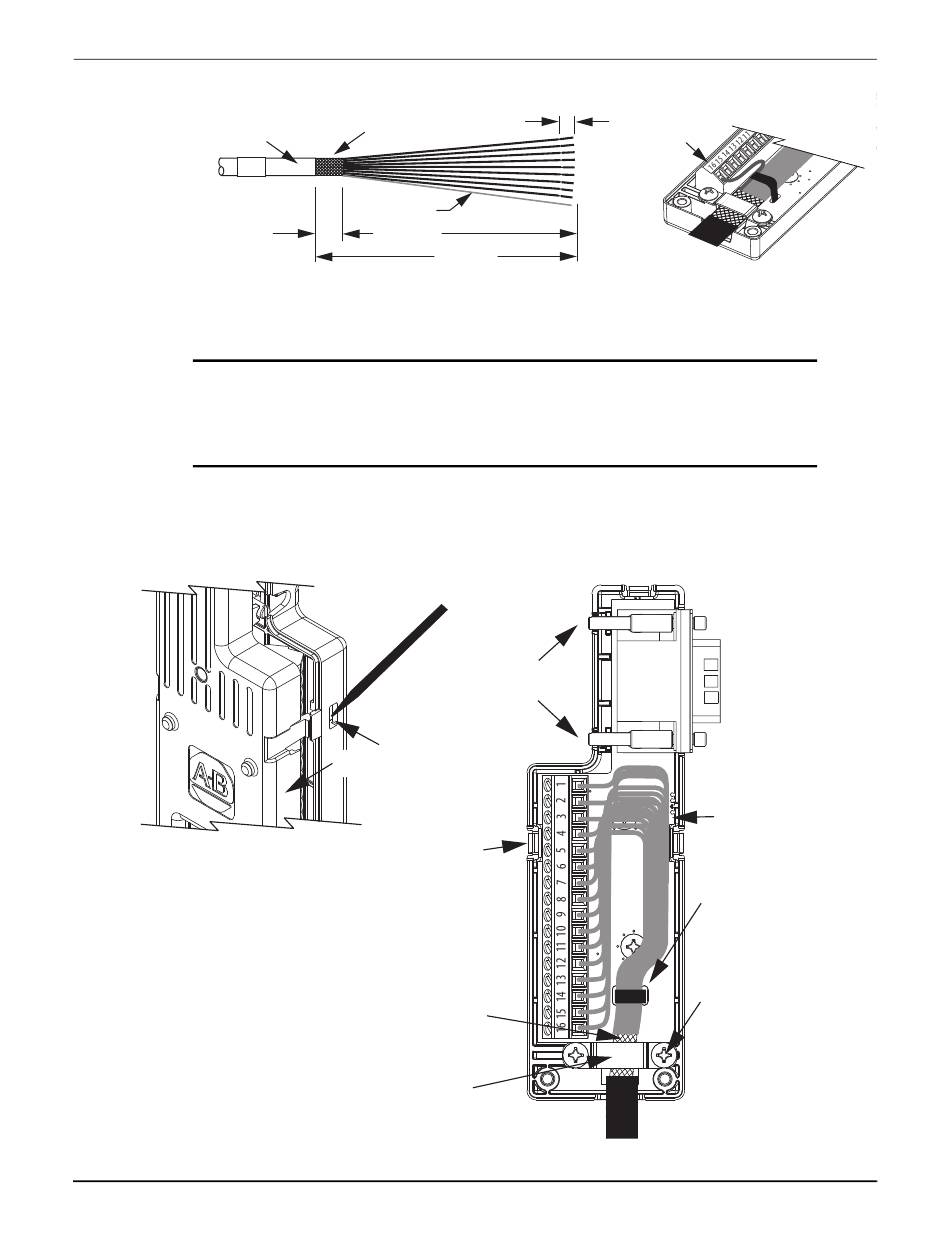

Figure 5-12: Feedback Cable
connected to pin 16. If the cable does not include a drain
wire, create one from the overall shield during wire prepara-
tion and connect it to pin 16.
Figure 5-13,
Depress
Snap-fit
Pull
Snap-fits
(3x)
Exposed Shield Aligned
Under the Shield Clamp
Shield Clamp
Figure 5-13: Wiring the Connector Kit
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
5.0 (0.2)
Drain Wire
All Dimensions in Millimeters [Inches]
Figure 5-14, and Table
Mounting
Screws
5-5.
15-pin D-sub to
Universal (UFB)
Connector
Service Loops
Tie Wrap
(Recommended for
Stress Relief and
Wire Management)
Clamp Screws
(2X)
MagneMotion
