Transport System Configuration

All examples that are provided are for horizontal track layouts unless otherwise specified. The
guideway is shown in cross-section in

Straight Track Configuration

• Node types at the beginning of a path: Simple, Relay, Terminus, Gateway.
• Node types at the end of a path: Relay, Terminus, Gateway.
• Keep the Motor Gaps consistent over the length of the path and over the entire system
if possible to make creation of the Node Controller Configuration File simpler.
NOTE: Different size gaps between motors must be identified in the Node Controller
QuickStick HT User Manual
Figure
Guideway
Motor Gap
Top View

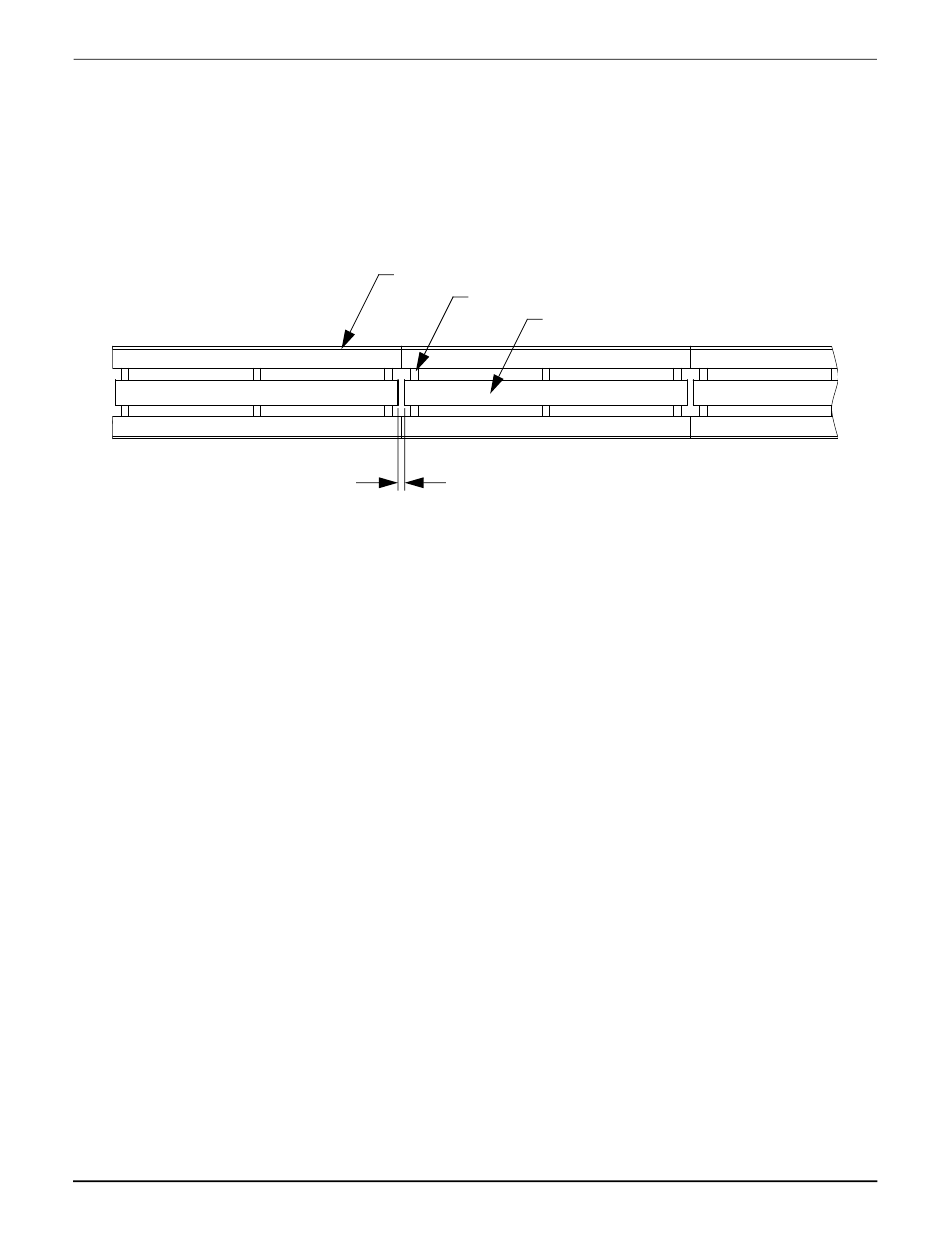

Figure 3-43: Straight Track Configuration
Configuration File (see the QuickStick Configurator User Manual,
MMI-UM009).
