Specifications and Site Requirements
Mechanical Specifications

QSMC-2 Motor Controller

The QSMC-2 motor controller is the external motor drive for the 1/2 m QSHT motors. One
controller is required for every two consecutive 1/2 m motors.
700-1384-01
Weight: 3.6 kg [7.9 lb]

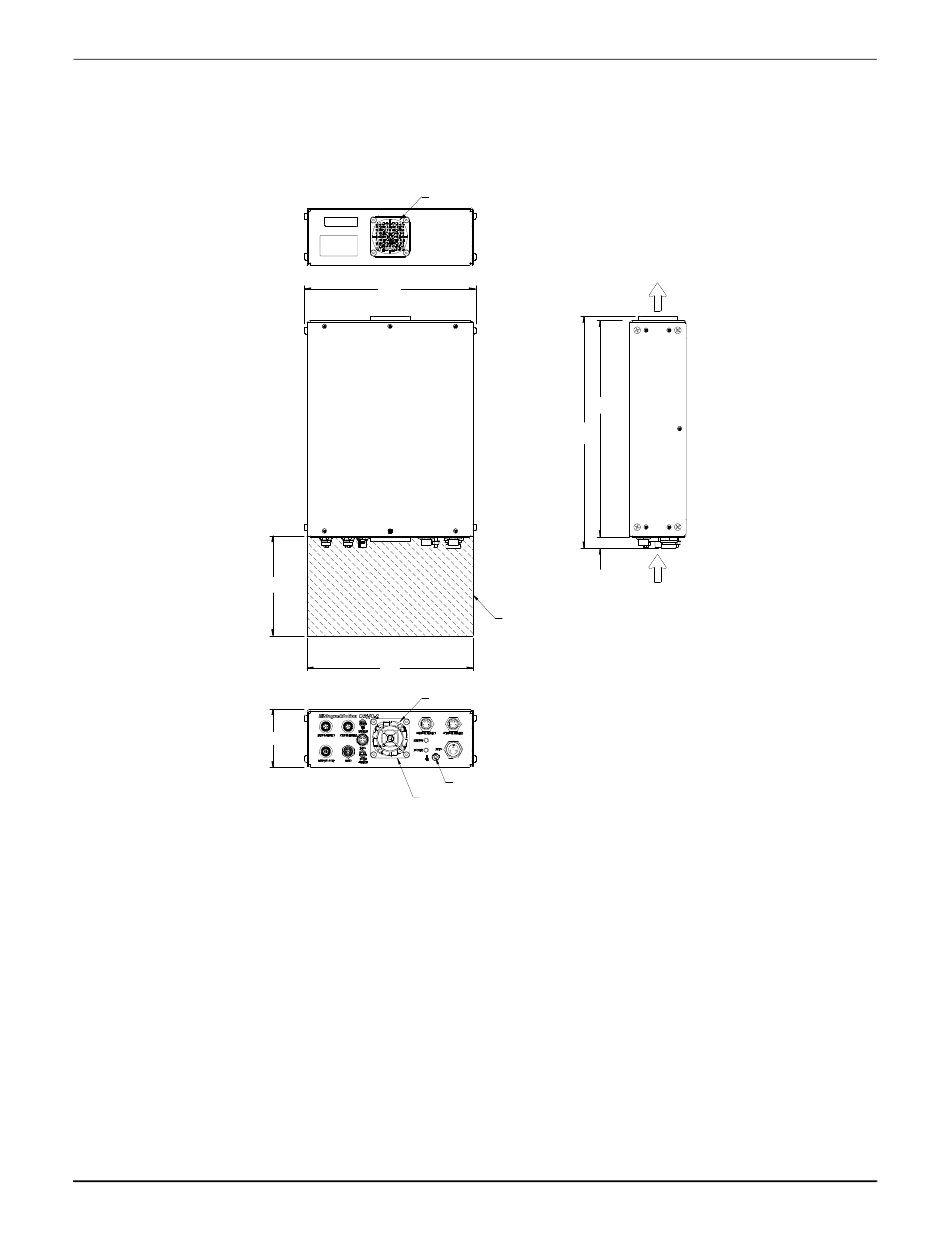

Figure 4-5: QSMC-2 Motor Controller Mechanical Drawing
NOTE: Each vent must be clear for unobstructed airflow.
Mounting kit available for standard 19 in electronics rack.
Ingress Protection Rating: IP20.
See QSMC-2 Motor Controller on page 147
Contact ICT Customer Support for current detail drawings.
Exposed Materials
The motor controller provides openings for airflow and must not be installed where harsh con-
ditions exist.
128
KEEP AREA FREE
FOR AIRFLOW
[10.3]
261
[6.0]
152
[9.98]
253.5
KEEP AREA FREE
FOR AIRFLOW
[3.44]
87.3
CUSTOMER SERVICEABLE
FAN FILTER MEDIA
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
[12.99]
330.0
[13.92]
353.6
[0.67]
17.0
CABLE / CONNECTOR
EXCLUSION AREA
M6 GND STUD
All Dimensions in Millimeters [Inches]
for the electrical specifications.
AIR FLOW
AIR FLOW
