Ethernet Motor Communications; Simplified Representation Of Ethernet Motor Connections - Rockwell Automation MagneMotion QuickStick HT User Manual

Installation
Transport System Installation

Ethernet Motor Communications

Host Enet
Controller Switch

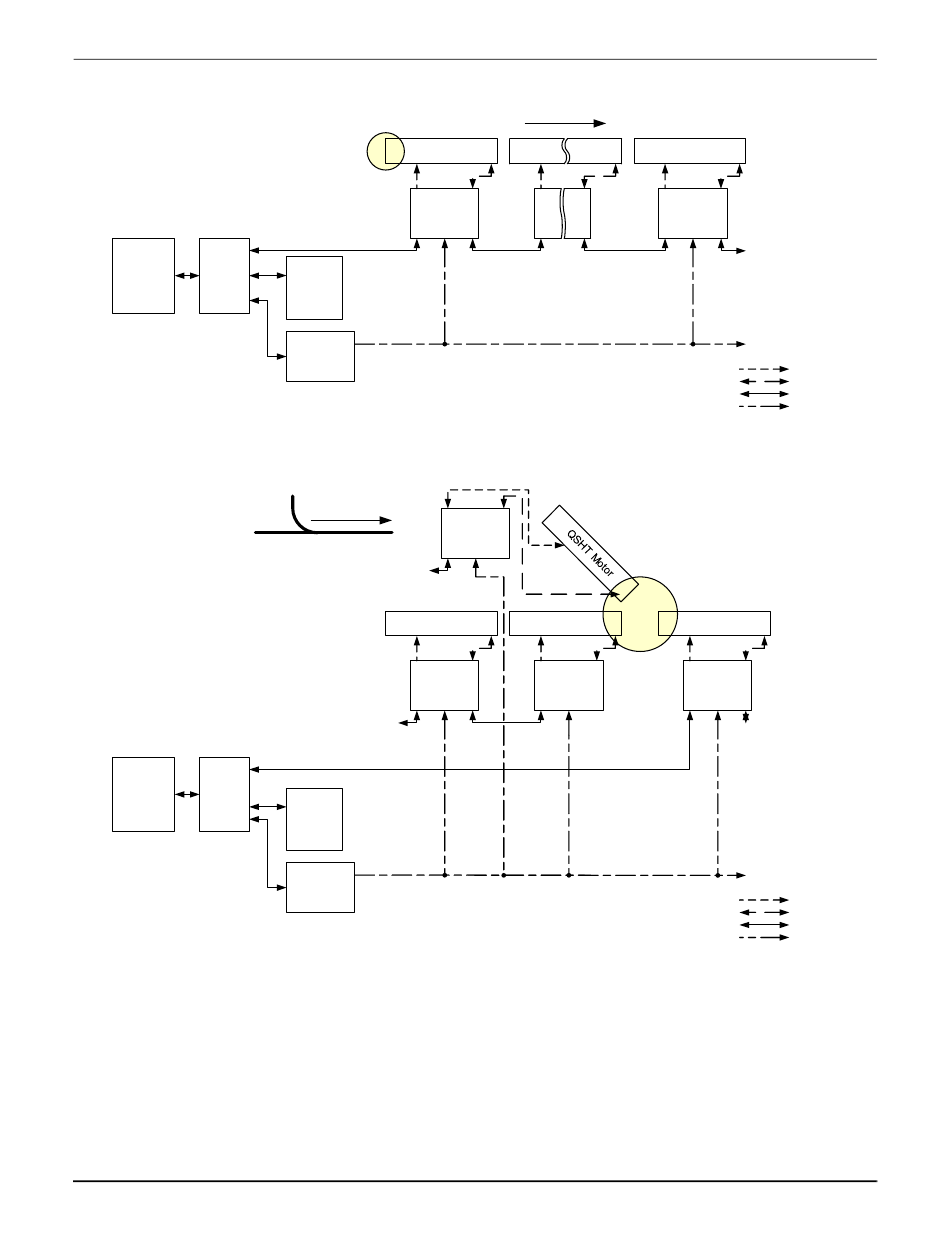

Figure 5-8: Simplified Representation of Ethernet Motor Connections
Host Enet
Controller Switch
Figure 5-9: Simplified Representation of Ethernet Motor Connections in a Merge Switch
Installing Motor and Ethernet Motor Drive Communication Cables
When using the QSHT 5700 inverters, the QSHT motors can use different network style con-
nection schemes depending on the application. See
mendations on page 79
procedure provides steps for connecting the motors as shown in the simplified wiring dia-
grams in Figure 5-8
