Specifications and Site Requirements
Mechanical Specifications

QuickStick HT 5700 Inverter

The QSHT 5700 inverter is an external motor drive for the QSHT motors. One inverter can
control one 1 m motor, or one or two consecutive 1/2 m motors, or one 1/2 m double-wide
motor.
MMI-HT-C2198-D032
Weight: 3.6 kg [7.9 lb]

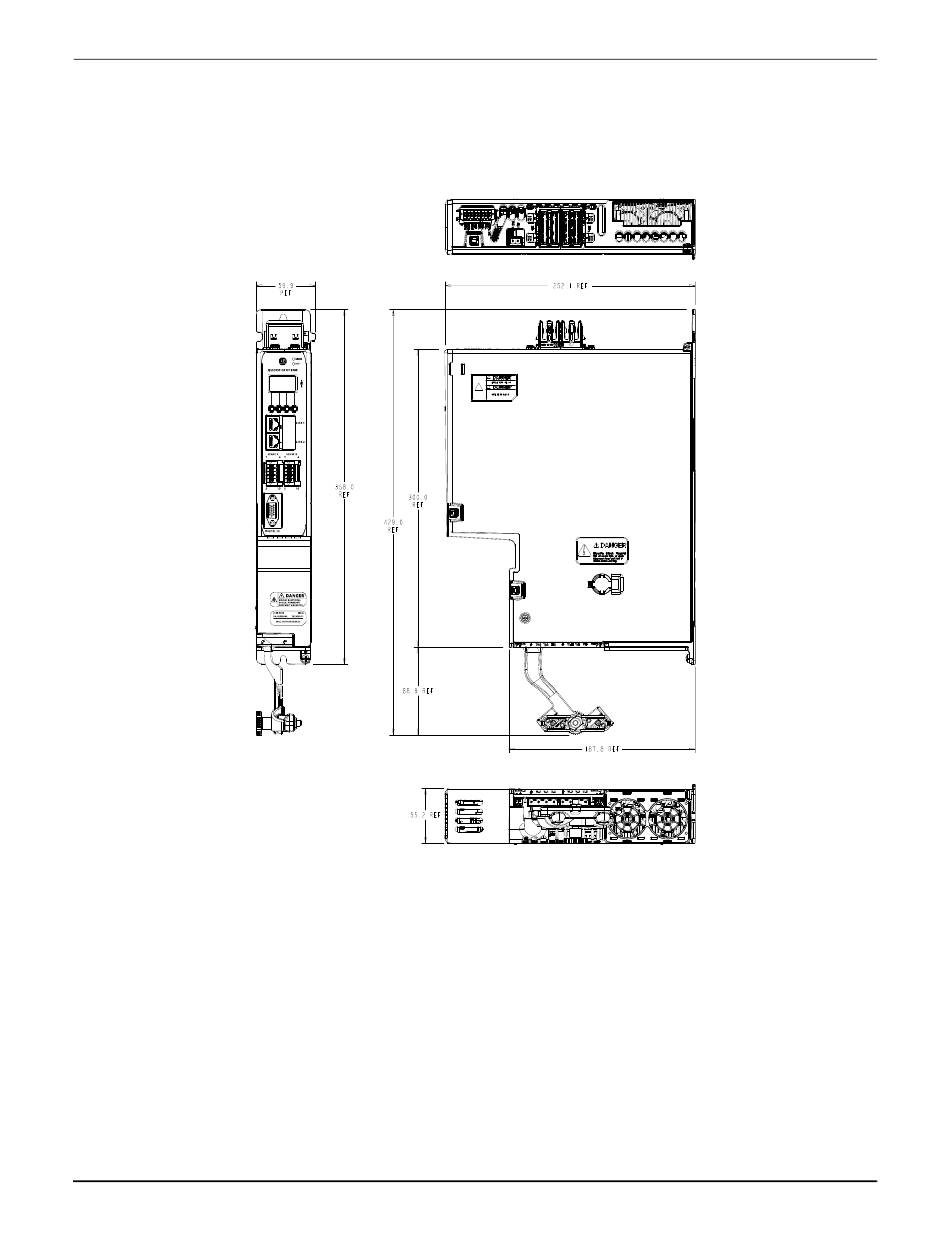

Figure 4-7: QuickStick HT 5700 Inverter Mechanical Drawing
NOTE: Each vent must be clear for unobstructed airflow.
Ingress Protection Rating: IP20.
See QuickStick HT 5700 Inverter on page 154
Contact ICT Customer Support for current detail drawings.
Exposed Materials
The inverter provides openings for airflow and must not be installed where harsh conditions
exist.
130
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
All Dimensions in Millimeters [Inches]
for the electrical specifications.
