Specifications and Site Requirements
Mechanical Specifications

1/2 Meter Double-wide Motor

700-1483-03
UPSTREAM
5.05±0.05
(FOR CUSTOMER PROVIDED ALIGNMENT PIN)
GND HOLE
M6X1.0 - 6H 8.0
Weight: 34.0 kg [74.9 lb] Est

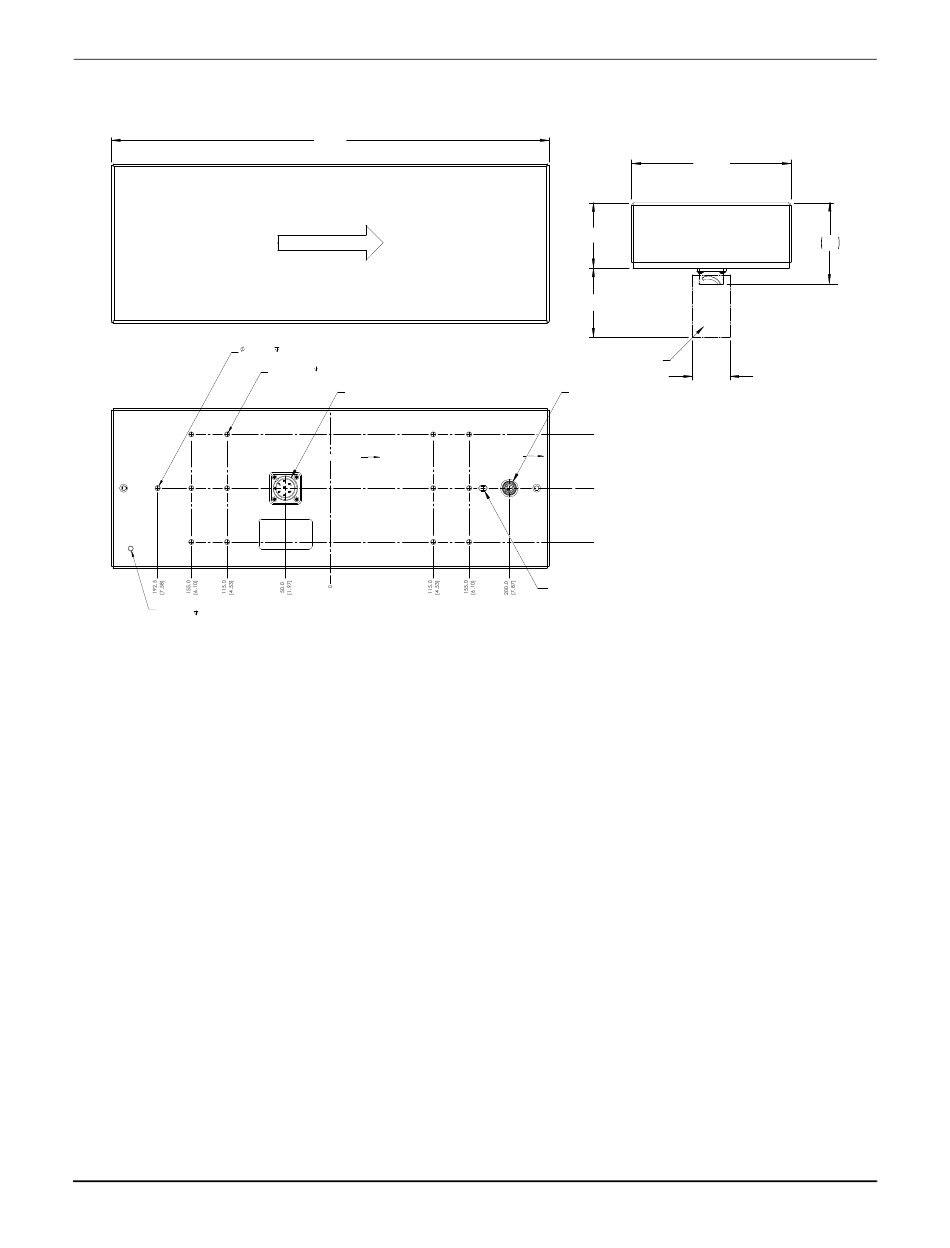

Figure 4-3: 1/2 Meter Double-wide Motor Mechanical Drawing
NOTE: QuickStick HT motors have an external motor drive (see
The exclusion zones that are shown are for the QSHT motor only. Additional exclu-
sion zones may be required based on the design of the vehicle and the material being
transported.
Ingress Protection Rating: IP67 (IP68 optional).
See Motors (Stators) on page 133
Contact ICT Customer Support for current detail drawings.
Exposed Materials
• 302, 304 Stainless Steel.
• 300 Series Corrosion Resistant Steel.
• Aluminum alloy with chromate over cadmium plating.
• Nickel plated brass.
• Nitrile.
• Neoprene.
126
488.2 ±0.5
[19.2 ±0.02]
FORWARD DIRECTION OF TRAVEL
6.0
12X M6X1.0 - 6H 8
MAX ALLOWABLE TORQUE = 4.8 Nm (42 IN-LBS)
DRIVE CONNECTOR
CABLE DIRECTION
C L
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
73.0 ±0.7
[2.87 ±0.03]
DOWNSTREAM
78
[3.1]
2X CLEARANCE FOR DRIVE & SENSE
RIGHT ANGLE CABLE CONNECTOR
SENSE CONNECTOR
60.0
[2.362]
CABLE DIRECTION
C L 0
60.00
[2.362]
ALIGNMENT SLOT
All Dimensions in Millimeters [Inches]
for the electrical specifications.
178 ±1
[7.0 ±0.04]
91
[3.6]
42
[1.7]
Figure 4-5 and Figure 4-7).
