QSMC LVDC Power Cable

A 2 m long LVDC Power cable is available for the QSMC motor controllers, which provides
logic power to the motor controller. Contact MagneMotion for replacement cables. The LVDC
Power cable connects directly to the +24V DC power bus. Each wire in the cable is
color-coded for identification.
MMI-NC-PWR01-01
Motor Controller
PWR
—
—
GND
QuickStick HT User Manual

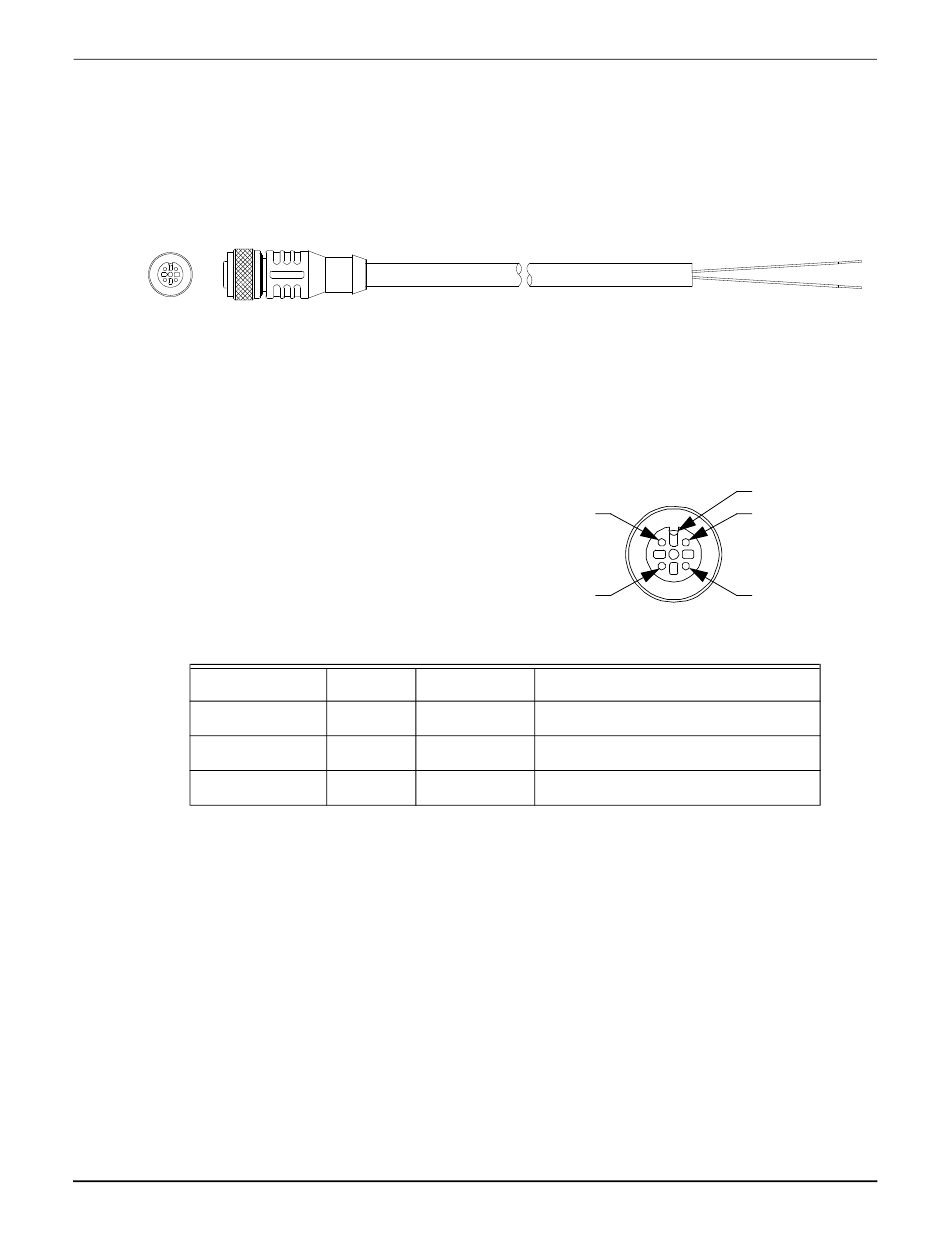

Figure 4-19: QSMC LVDC Power Cable
Table 4-31: QSMC DC Power Cable Pinouts
Wire Individual
Gauge Terminals M12 Eurofast, FSFD 4.4, Female
18 AWG Brn
— —
— —
18 AWG Blk
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Specifications and Site Requirements
Electrical Specifications
Power Distribution
1
4
1
2
3
4
Key
2
3
