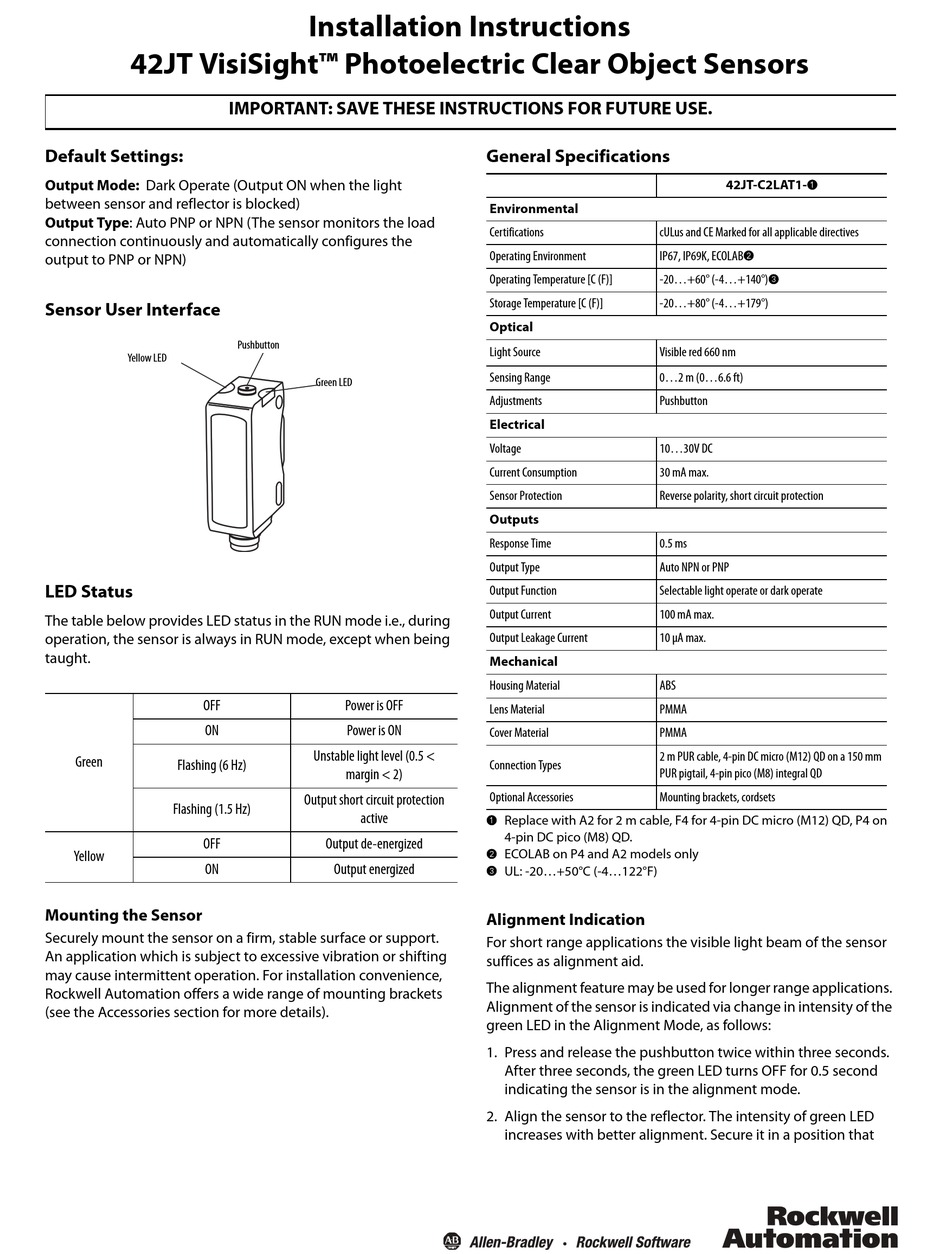

Rockwell Automation Allen-Bradley VisiSight 42JT Series Installation Instructions

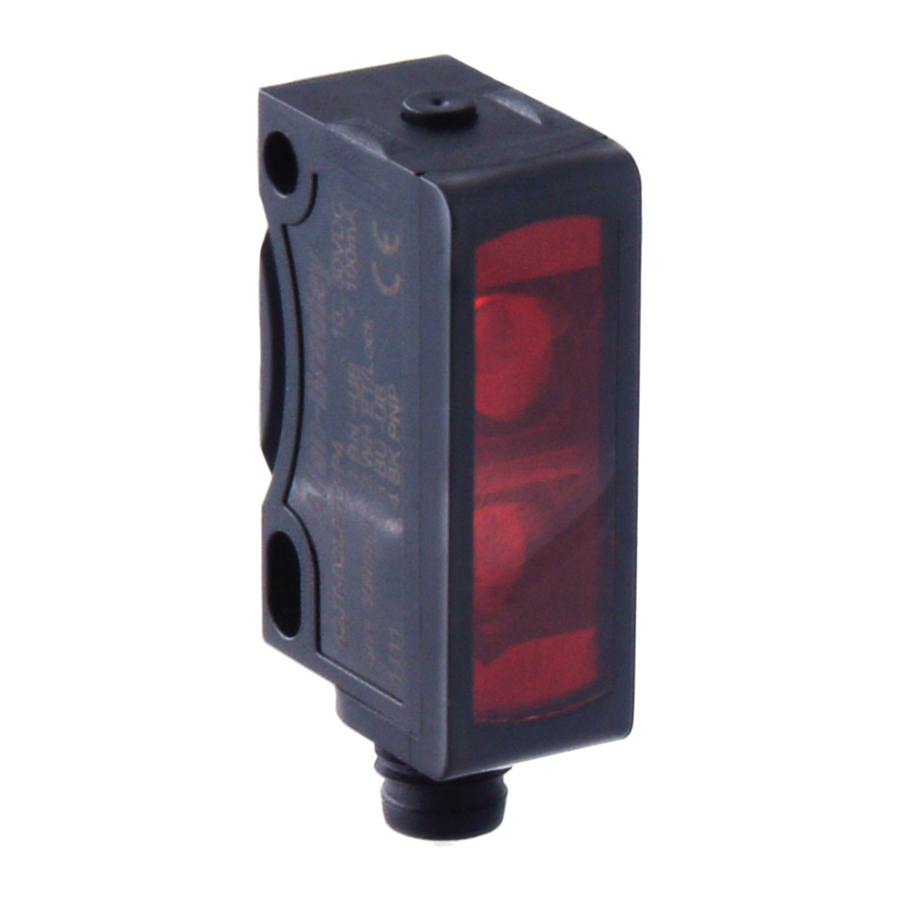

42JT VisiSight™ Photoelectric Clear Object Sensors

Default Settings:

Output Mode: Dark Operate (Output ON when the light
between sensor and reflector is blocked)
Output Type: Auto PNP or NPN (The sensor monitors the load
connection continuously and automatically configures the
output to PNP or NPN)

Sensor User Interface

Yellow LED

LED Status

The table below provides LED status in the RUN mode i.e., during
operation, the sensor is always in RUN mode, except when being
taught.
OFF
ON
Green
Flashing (6 Hz)
Flashing (1.5 Hz)
OFF
Yellow
ON

Mounting the Sensor

Securely mount the sensor on a firm, stable surface or support.
An application which is subject to excessive vibration or shifting
may cause intermittent operation. For installation convenience,
Rockwell Automation offers a wide range of mounting brackets
(see the Accessories section for more details).
Installation Instructions
IMPORTANT: SAVE THESE INSTRUCTIONS FOR FUTURE USE.
Pushbutton
Green LED
Power is OFF
Power is ON
Unstable light level (0.5 <
margin < 2)
Output short circuit protection
active
Output de-energized
Output energized
General Specifications
Environmental
Certifications cULus and CE Marked for all applicable directives
Operating Environment IP67, IP69K, ECOLAB
Operating Temperature [C (F)] -20...+60° (-4...+140°)
Storage Temperature [C (F)] -20...+80° (-4...+179°)
Optical
Light Source Visible red 660 nm
Sensing Range 0...2 m (0...6.6 ft)
Adjustments Pushbutton
Electrical
Voltage 10...30V DC
Current Consumption 30 mA max.
Sensor Protection Reverse polarity, short circuit protection
Outputs
Response Time 0.5 ms
Output Type Auto NPN or PNP
Output Function Selectable light operate or dark operate
Output Current 100 mA max.
Output Leakage Current 10 μA max.
Mechanical
Housing Material ABS
Lens Material PMMA
Cover Material PMMA
2 m PUR cable, 4-pin DC micro (M12) QD on a 150 mm
Connection Types
PUR pigtail, 4-pin pico (M8) integral QD
Optional Accessories Mounting brackets, cordsets
 Replace with A2 for 2 m cable, F4 for 4-pin DC micro (M12) QD, P4 on
4-pin DC pico (M8) QD.
 ECOLAB on P4 and A2 models only
 UL: -20...+50°C (-4...122°F)

Alignment Indication

For short range applications the visible light beam of the sensor
suffices as alignment aid.
The alignment feature may be used for longer range applications.
Alignment of the sensor is indicated via change in intensity of the
green LED in the Alignment Mode, as follows:
1. Press and release the pushbutton twice within three seconds.
After three seconds, the green LED turns OFF for 0.5 second
indicating the sensor is in the alignment mode.
2. Align the sensor to the reflector. The intensity of green LED
increases with better alignment. Secure it in a position that
42JT-C2LAT1-
