Design Guidelines
Transport System Design

Motor Mounting Methods

The following motor mounting guidelines are provided when designing a guideway.
• When attaching directly to the track or mounting plate as shown in
sure that clearance holes for all motor connections are provided. This mounting
method does not provide for any adjustment of the motor position once the motor is
installed unless adjustment features are provided in the mounting plate.
QSHT Motor
Locating Pin
114

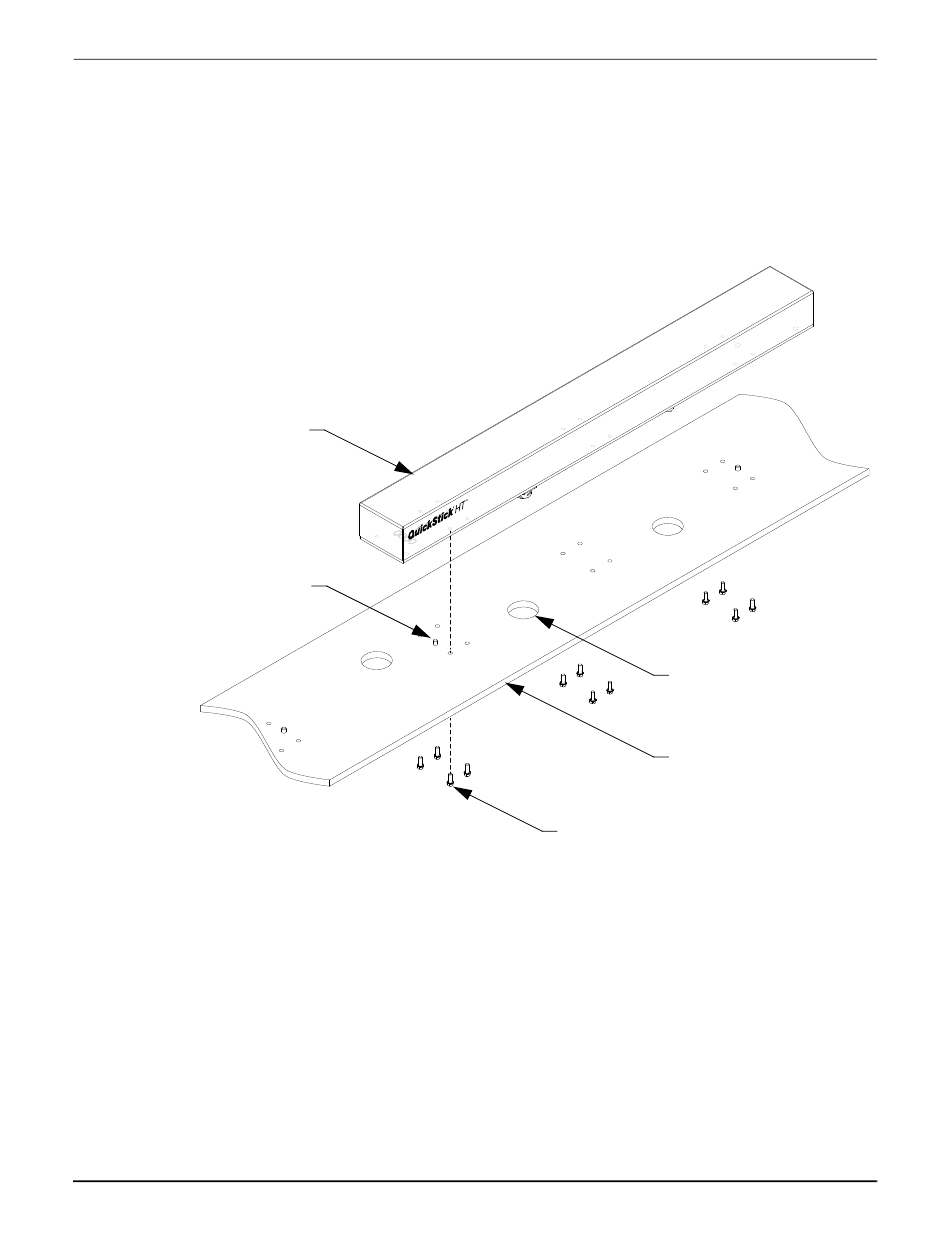

Figure 3-38: Motor Mounting to Flat Surface
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Figure
Clearance Holes for
Motor Connections
Mounting Plate
M6 Mounting Hardware
3-38, make
