Qsht 5700 Inverter Digital Input Connector Pinout - Rockwell Automation MagneMotion QuickStick HT User Manual

Specifications and Site Requirements
Electrical Specifications

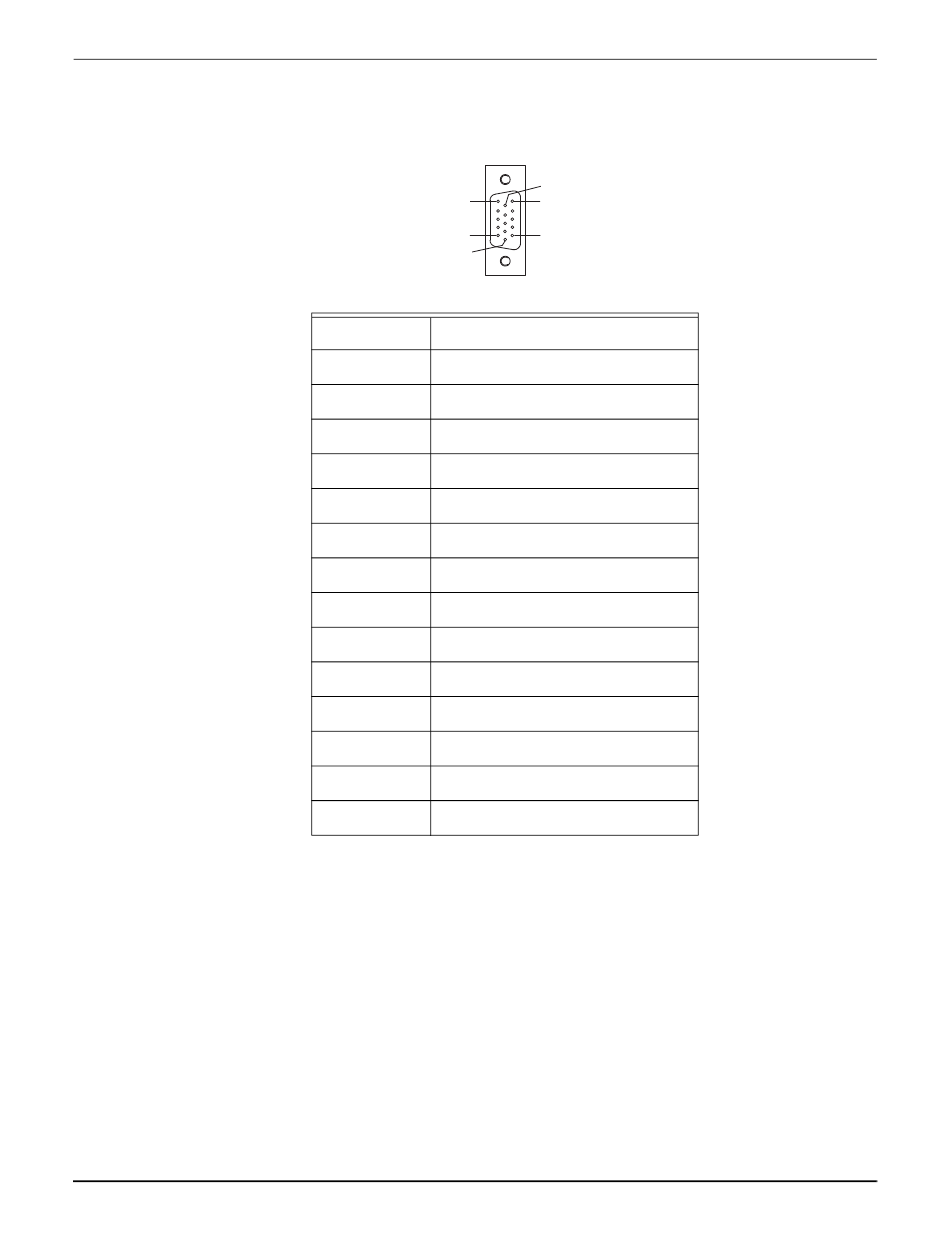

Table 4-41: QSHT 5700 Inverter Digital Input Connector Pinout
160
Pin 15
Pin 11
Pin 6
1 Digital In Common
2 Digital In Common
3 No Connect
4 Digital In 1
5 Digital In 2
6 Digital In 3
7 Digital In 4
8 Digital In Common
9 Digital In Common
10 No Connect
11 No Connect
12 Digital In 4
13 Digital In 3
14 Digital In 2
15 Digital In 1
* Use 2198-K57CK-D15M universal feedback kit to
support connecting discrete wires to this connector,
see Digital I/O on page
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Pin 10
Pin 5
Pin 1
201.
*
