LCD Display
The Home Screen and the Main Menu page and the functions of the buttons are shown in
Figure 4-21.
The home screen displays basic information about the inverter. The soft menu provides the
functions that are shown in
164
Table 4-46: Ethernet Link Speed Status Indicator
10 Mbit
100 Mbit
Table 4-47: Ethernet Link/Activity Status Indicator
No link
Link established
Network activity
STANDBY
192.168.1.1
DC BUS: 0.3V
A
B
Home Screen

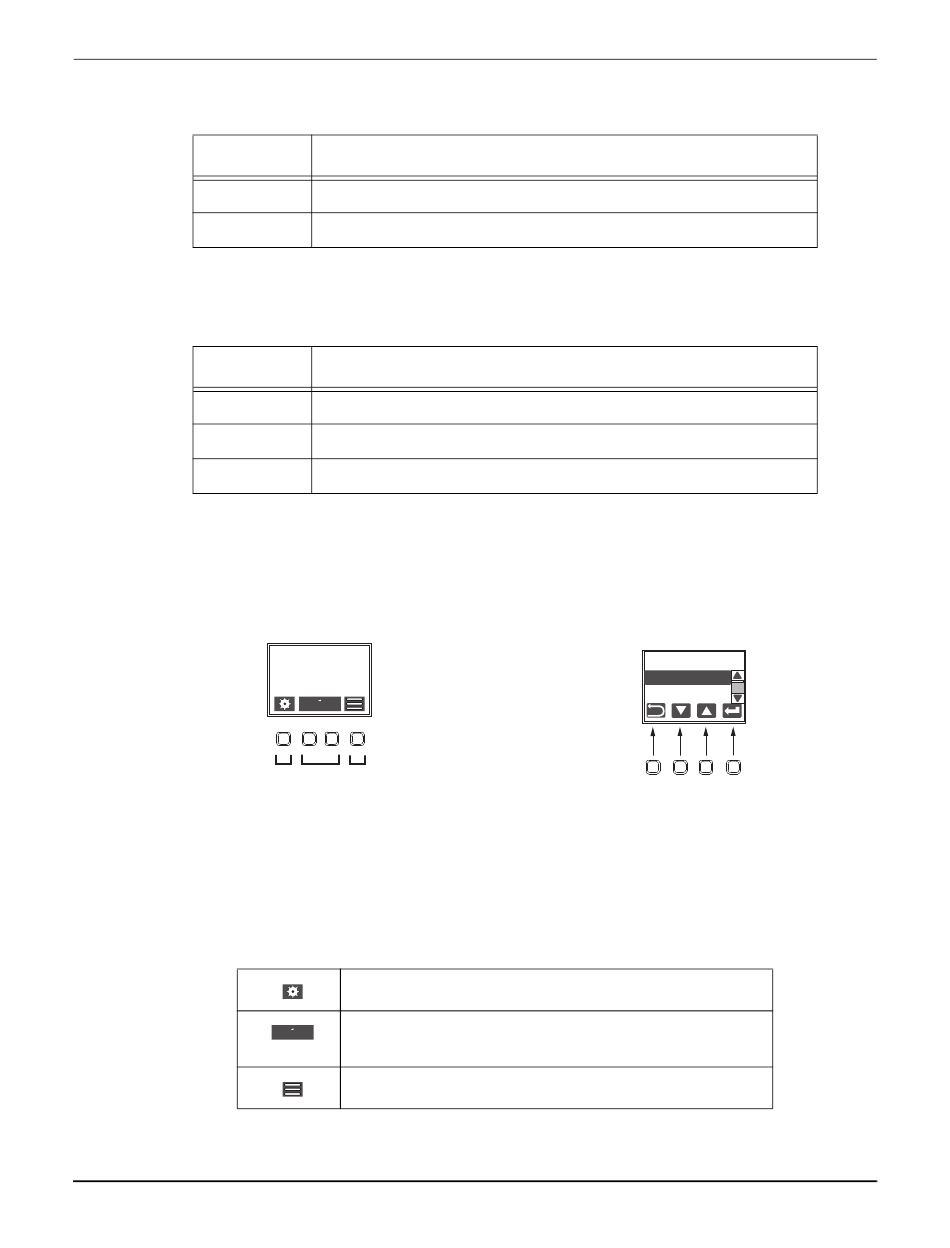

Figure 4-21: Main Menu Page and Layout Description
Table 4-49.
Table 4-48: Home Screen Functions
Press to display the setup functions.
Press to toggle the display between drive A and B (A is
A
B
the default drive).
Press to display the menu functions.
