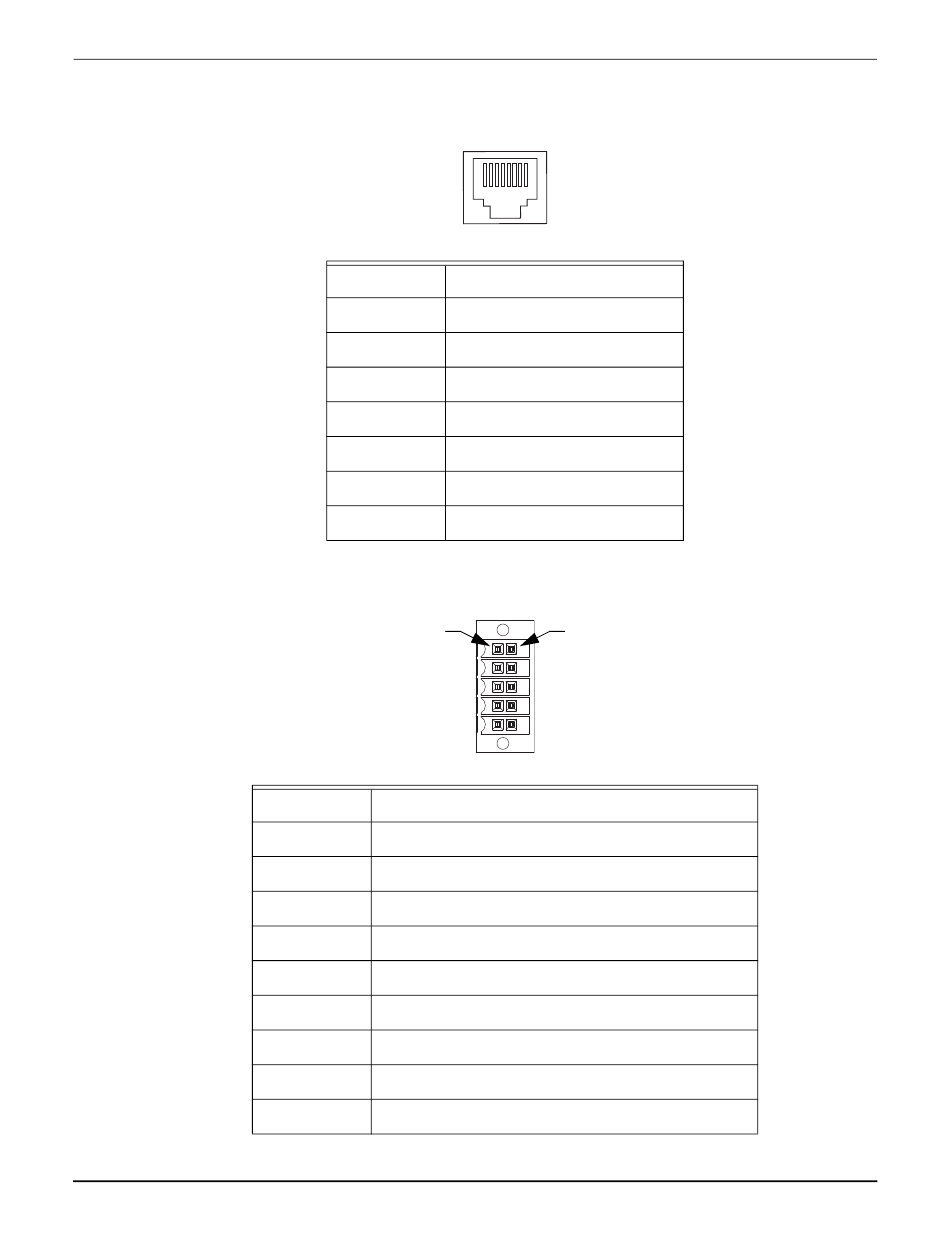

Table 4-40: QSHT 5700 Inverter Stator Sense Connector Pinout
*
QuickStick HT User Manual
Table 4-39: QSHT 5700 Inverter Ethernet Connector Pinout
1
2
3
4
5
6
7
8
1
1 VCC output to HES board (referenced to COM)
2 VCC output to HES board (referenced to COM)
3 VCC Common
4 VCC Common
*
5 Chassis
6 RS-422 Rx+ input
7 RS-422 Rx- input
8 RS-422 Tx+ output
9 RS-422 Tx- output
10 N/C
Cable shield must be terminated to this pin.
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Specifications and Site Requirements
1 8
TD+
TD-
RD+
—
—
RD-
—
—
6
Electrical Specifications
159
