motors at the ends of all paths that meet in a node must be made to the same node controller.
See the QuickStick Configurator User Manual, MMI-UM009, for more information about
nodes and paths.
Power Connector
1/2 m QSHT
QSMC-2
Motor Controller
RS-422 Cable
(typical)

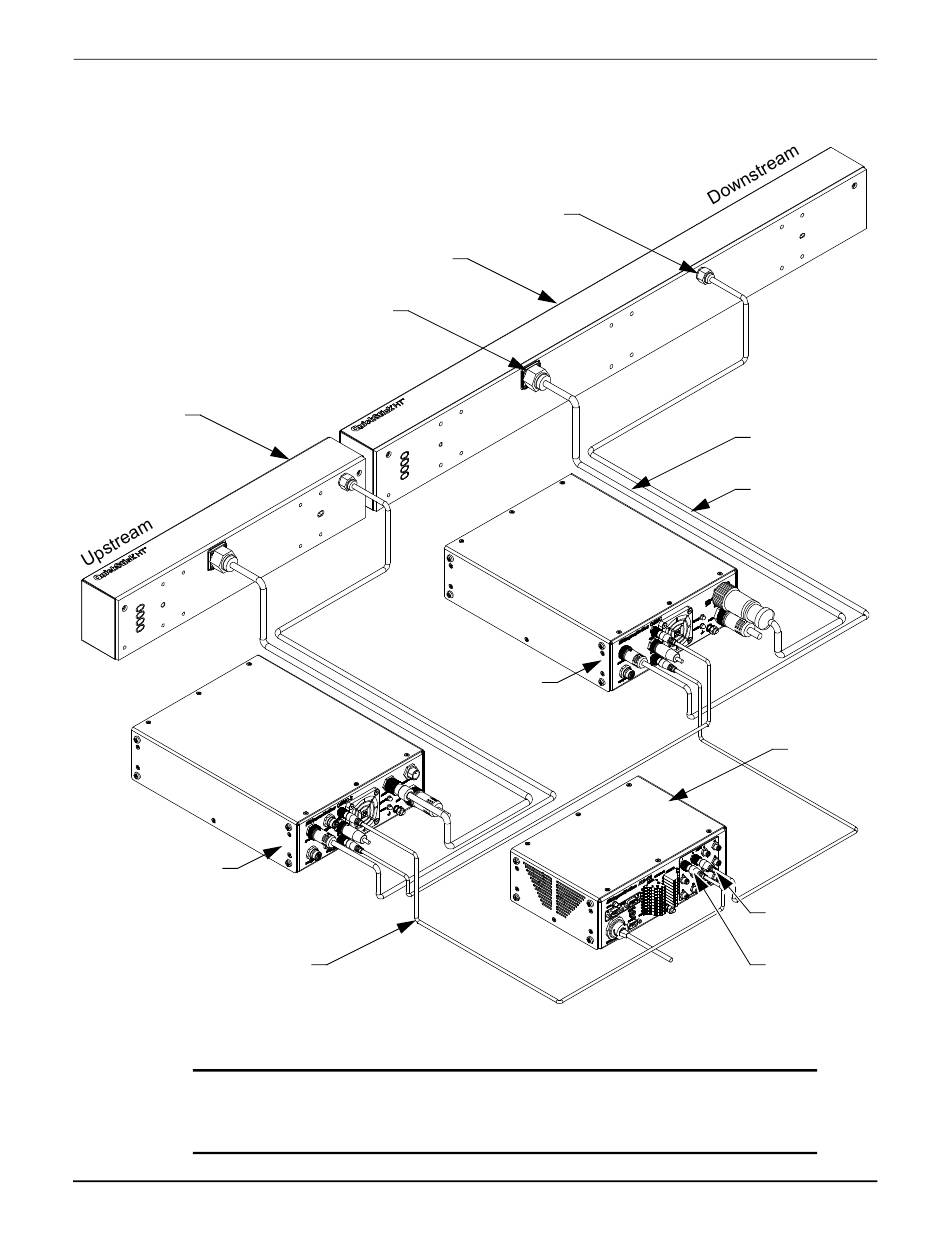

Figure 5-7: QSHT Motor and QSMC RS-422 Communications Connections
NOTICE
QuickStick HT User Manual
Sense Connector
1 m QSHT
(typical)
Motor Controller
Modifications to the MMI motor to motor controller cables,
or using custom cables, violates the UL conditions of accept-
ability.
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Transport System Installation
(typical)
QSMC
Installation
Drive Cable
(typical)
Sense Cable
(typical)
Node
Controller
Downstream
Connection
Upstream
Connection
