Installation

Facilities Connections

Facilities Connections
The standard configuration of the QuickStick HT transport system requires user-supplied
electrical power and communication connections. See the
page 133
for descriptions and specifications of all required facilities.

Network Connections

The QuickStick HT transport system uses communication over an Ethernet network with a
host controller for transport system control. The same Ethernet network is used for communi-
cation between node controllers. When using QSHT 5700 inverters, the same network is also
used for communication between the inverters and the node controllers. Use a dedicated, sep-
arate subnet for the transport system network to eliminate any unrelated network traffic.
The following procedure provides the information that is required to make all network com-
munication and PoE connections to the node controllers as shown in
Figure 5-5
and
Figure 5-9
for Ethernet motor and network connections.
Host
Controller
TCP/IP or ENet/IP
Network
Switch
(PoE)
NC LITE
. . . NC LITE
214
Figure 5-6
for RS-422 motor and network connections and
Network
Switch
(No PoE)
NC LITE

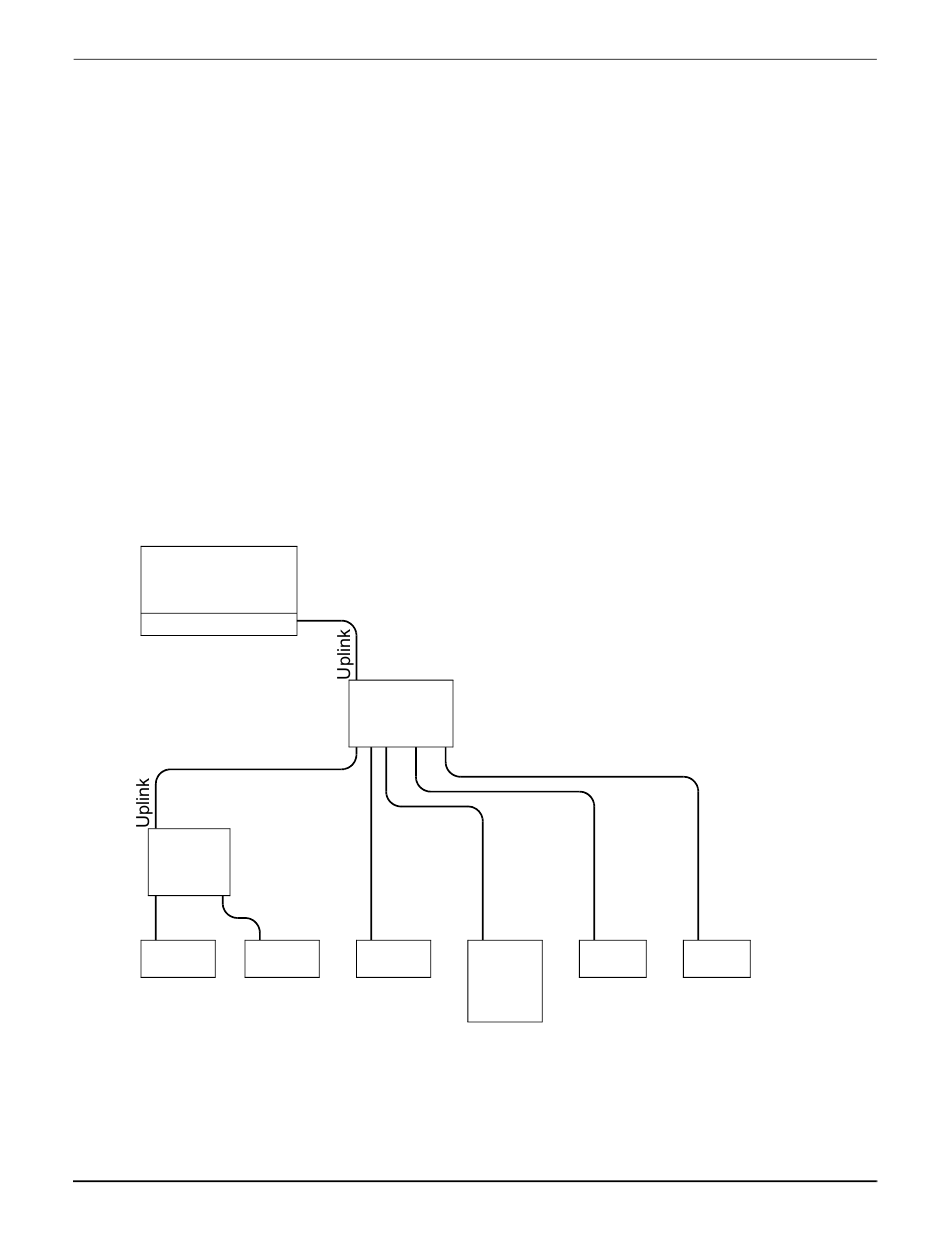

Figure 5-18: Network Cable Connections
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020
Electrical Specifications on
NC-12
NC-E
Figure
5-18. See
Figure 5-8
and
NC-S
MagneMotion
