Installation
Transport System Installation

Mounting QSMC Motor Controllers

Locate the motor controllers close to the motors they are responsible for to minimize the
length of all wiring. The QSMC and QSMC-2 controllers can be mounted oriented in any
direction. Or, the controllers can be mounted in a standard 19 inch rack by attaching the
optional mounting brackets (see
Make sure that the service and exclusion zones that are identified in
and Figure 4-5 on page 128

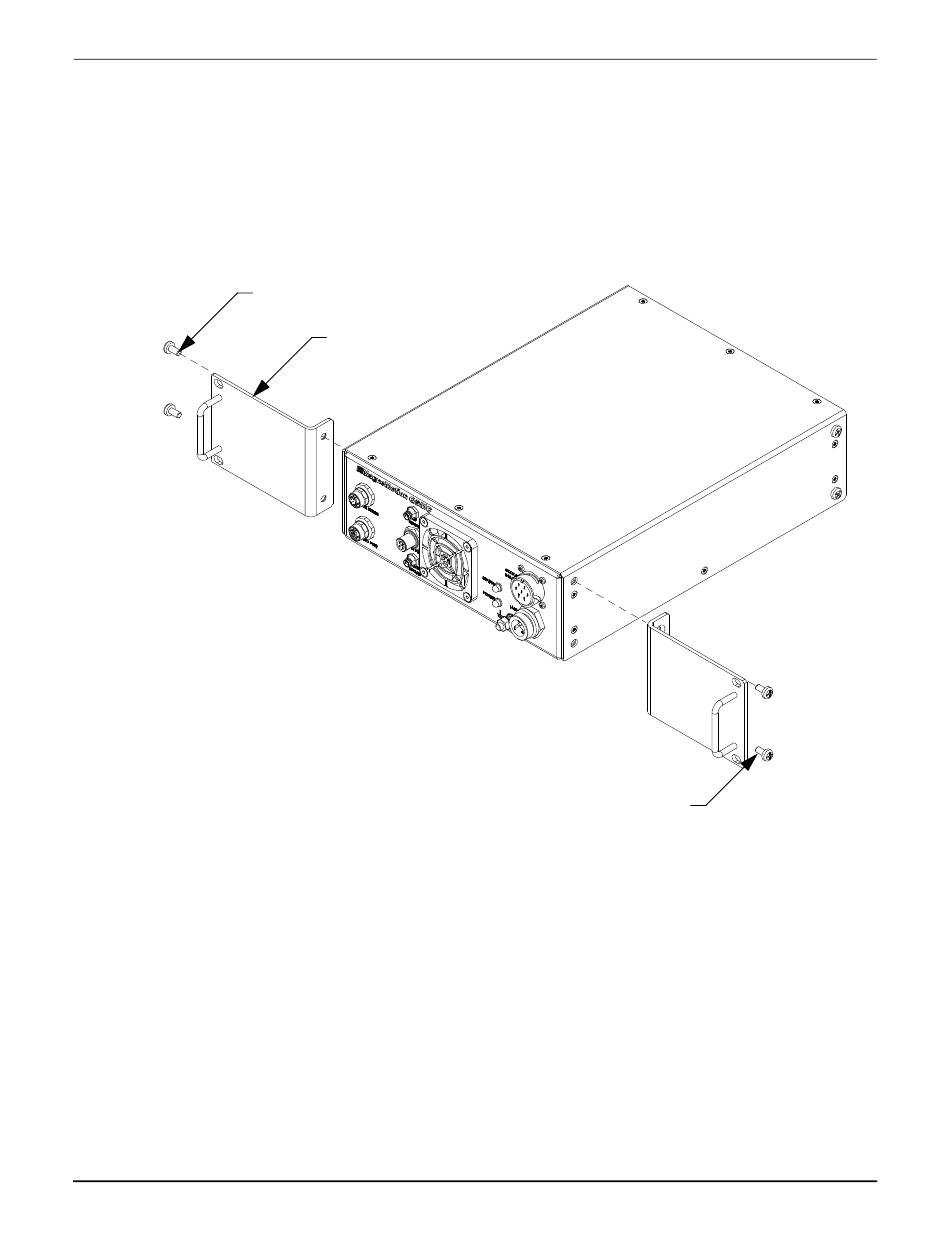

Figure 5-1: QSMC and QSMC-2 Motor Controller Mounting Brackets
Install the mounting brackets onto the motor controller, if not already installed.
1. Remove the two M5 x 10 mm screws from the front of each side (four screws total).
2. Install two M5 x 12 mm flat head screws to secure each bracket and tighten to 2.0 Nm
[18 in-lb] (four screws total).
3. Locate the controller in the rack and secure it with four screws (two per mounting
bracket) as specified by the rack manufacturer.
4. Install cable management as required to secure the cables running to the controller.
