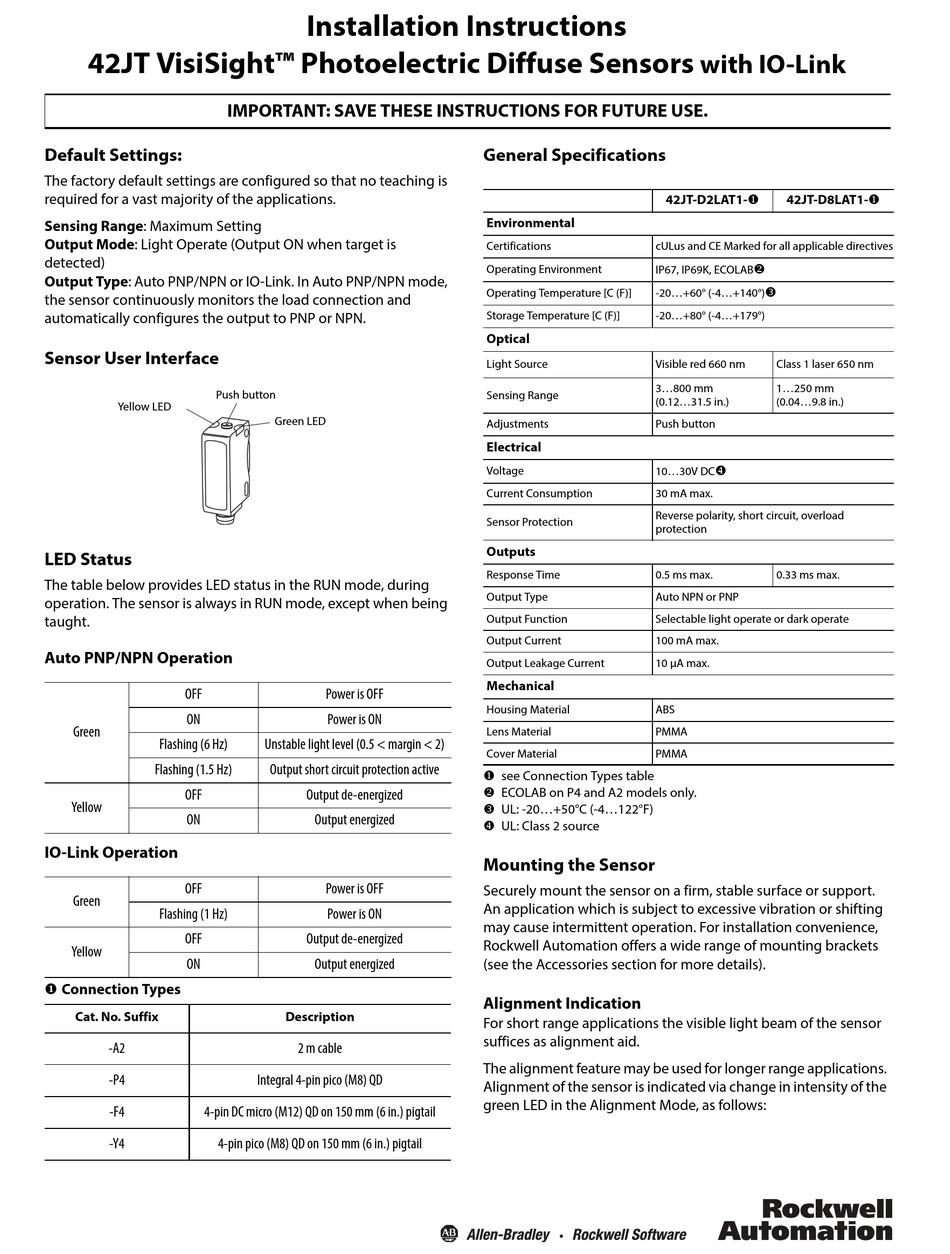

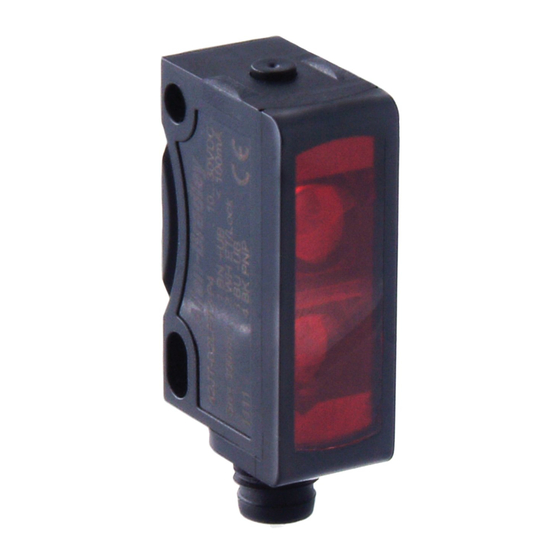

42JT VisiSight™ Photoelectric Diffuse Sensors

Default Settings:

The factory default settings are configured so that no teaching is
required for a vast majority of the applications.
Sensing Range: Maximum Setting
Output Mode: Light Operate (Output ON when target is
detected)
Output Type: Auto PNP/NPN or IO-Link. In Auto PNP/NPN mode,
the sensor continuously monitors the load connection and
automatically configures the output to PNP or NPN.
Sensor User Interface
Push button
Yellow LED
LED Status
The table below provides LED status in the RUN mode, during
operation. The sensor is always in RUN mode, except when being
taught.
Auto PNP/NPN Operation
OFF
ON
Green
Flashing (6 Hz)
Flashing (1.5 Hz)
OFF
Yellow
ON
IO-Link Operation
OFF
Green
Flashing (1 Hz)
OFF
Yellow
ON
 Connection Types
Cat. No. Suffix
-A2
-P4
-F4
4-pin DC micro (M12) QD on 150 mm (6 in.) pigtail
-Y4
4-pin pico (M8) QD on 150 mm (6 in.) pigtail

Installation Instructions

IMPORTANT: SAVE THESE INSTRUCTIONS FOR FUTURE USE.
Green LED
Power is OFF
Power is ON
Unstable light level (0.5 < margin < 2)
Output short circuit protection active
Output de-energized
Output energized
Power is OFF
Power is ON
Output de-energized
Output energized
Description
2 m cable
Integral 4-pin pico (M8) QD

General Specifications

Environmental
Certifications
cULus and CE Marked for all applicable directives
Operating Environment
IP67, IP69K, ECOLAB
Operating Temperature [C (F)]
-20...+60° (-4...+140°)
Storage Temperature [C (F)]
-20...+80° (-4...+179°)
Optical
Light Source
Visible red 660 nm
3...800 mm
Sensing Range
(0.12...31.5 in.)
Adjustments
Push button
Electrical
Voltage
10...30V DC
Current Consumption
30 mA max.
Reverse polarity, short circuit, overload
Sensor Protection
protection
Outputs
Response Time
0.5 ms max.
Output Type
Auto NPN or PNP
Output Function
Selectable light operate or dark operate
Output Current
100 mA max.
Output Leakage Current
10 μA max.
Mechanical
Housing Material
ABS
Lens Material
PMMA
Cover Material
PMMA
 see Connection Types table
 ECOLAB on P4 and A2 models only.
 UL: -20...+50°C (-4...122°F)
 UL: Class 2 source

Mounting the Sensor

Securely mount the sensor on a firm, stable surface or support.
An application which is subject to excessive vibration or shifting
may cause intermittent operation. For installation convenience,
Rockwell Automation offers a wide range of mounting brackets
(see the Accessories section for more details).

Alignment Indication

For short range applications the visible light beam of the sensor
suffices as alignment aid.
The alignment feature may be used for longer range applications.
Alignment of the sensor is indicated via change in intensity of the
green LED in the Alignment Mode, as follows:
with IO-Link
42JT-D2LAT1-
42JT-D8LAT1-
Class 1 laser 650 nm
1...250 mm
(0.04...9.8 in.)
0.33 ms max.
