Handling O gas cylinders
2
WARNING
Risk of explosion
When pressurized, O
combination with oil or grease.
Do not oil or grease the gas cylinder valve or
the pressure reducer of the O
not touch with oily or greasy fingers.
Gas cylinder valves must only be opened and
closed slowly. Do not use any tools with the screw
connection variants.
Have service personnel repair any leaky or stiff
gas cylinder valves.

Fitting the vaporizers

Depending on the configuration, Perseus can be
operated with vaporizers which have a Dräger
Auto Exclusion plug-in adapter or a Selectatec
plug-in adapter. Dräger recommends using only
vaporizers that have been tested and are listed in
the list of accessories.
WARNING
Risk due to incorrect anesthetic agent
delivery
If the vaporizer is filled with the wrong
anesthetic agent or if it is not filled
sufficiently, incorrect anesthetic gas
concentrations or concentrations that are too
low can occur as a result.
– Follow the instructions for use for the
vaporizer.
– Compare the color coding and labeling on
the vaporizer used with the anesthetic
agent bottle and the anesthetic agent
indicated on the screen.
The vaporizers used must conform to the
ISO 8835-4 or ISO 80601-2-13 standard. If the
internal patient gas measurement module fails, an
independent gas measurement system complying
with ISO 80601-2-55 must be used.
Instructions for use Perseus A500 SW 2.0n
is self-igniting in
2
cylinder. Do
2
WARNING
Risk due to improperly mounted vaporizers
Incorrectly mounted vaporizers can cause
leakage. This can cause the fresh-gas
delivery to be too low or contaminate the
ambient air. Patient and user can be
endangered.
– Make sure that the connected vaporizers
are hanging vertically and are not jammed
by objects leaning on the device.
– When using D-Vapor vaporizers, make
sure that the power cable is not pinched.
– After mounting the vaporizers, perform a
leakage test.

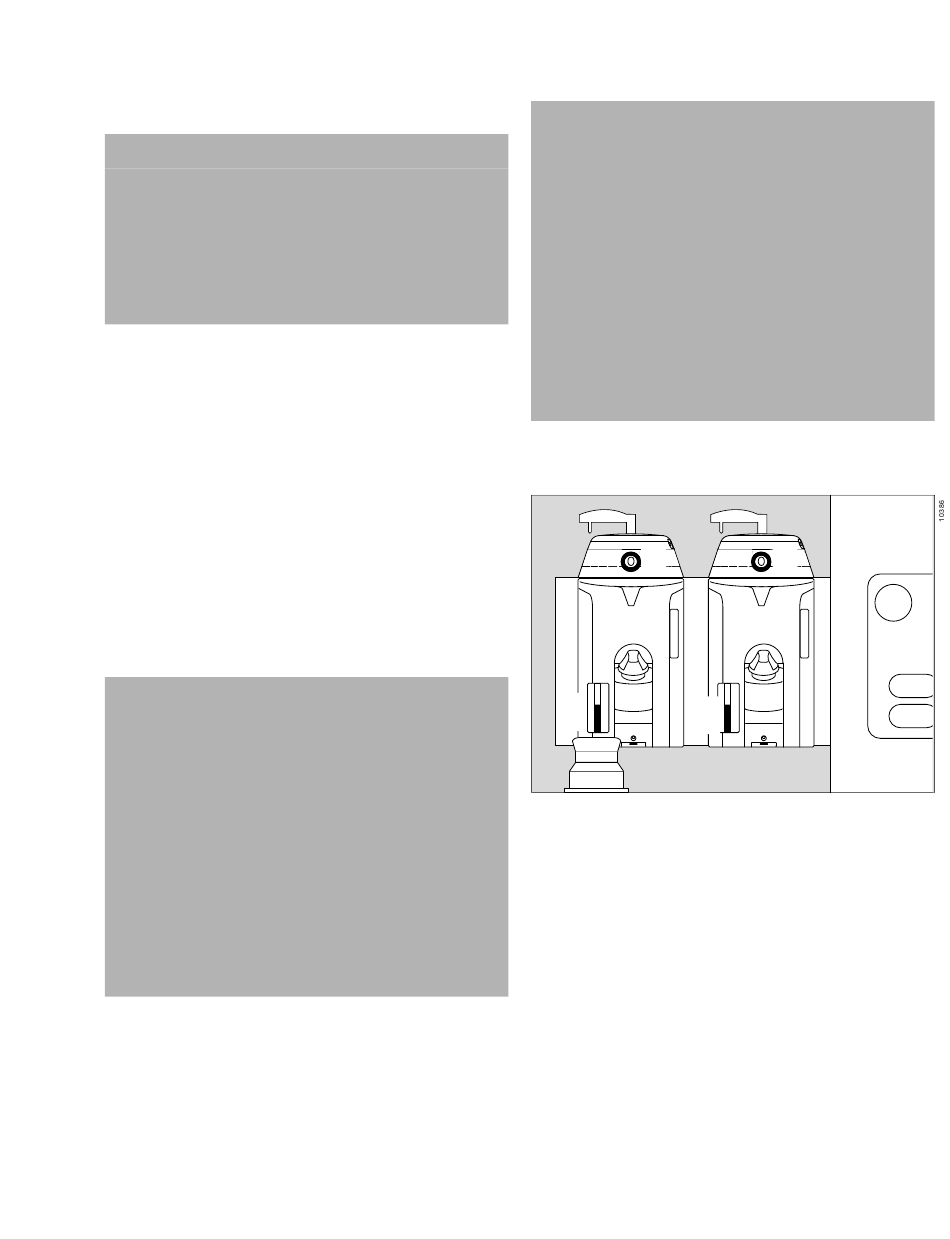

The following illustration shows the Dräger
Vapor 3000.
A
A
C
B B
1 Set the vaporizer on the plug-in connector
evenly and firmly.
2 Turn the locking lever (A) clockwise. The lever
is in the locked position when it is pointing left.
3 Check the vaporizer filling level through the
sight glass (B). If necessary, fill the vaporizer.
4 Turn the control dial to position 0; the key (C)
latches into place.
5 Check the locking:
Set the control dial on a vaporizer to a position
other than 0 and make sure the other vaporizer
remains locked in its 0 position. Repeat the test
with the other vaporizer.
6 Set both control dials to position 0.
Assembly and preparation
