7.2. Aligning Side-by-side and Overlaying Docking Windows

When a window is moved to a position where another window is already docked, the left, right, top or bottom arrow
marks appear on the already docked window.

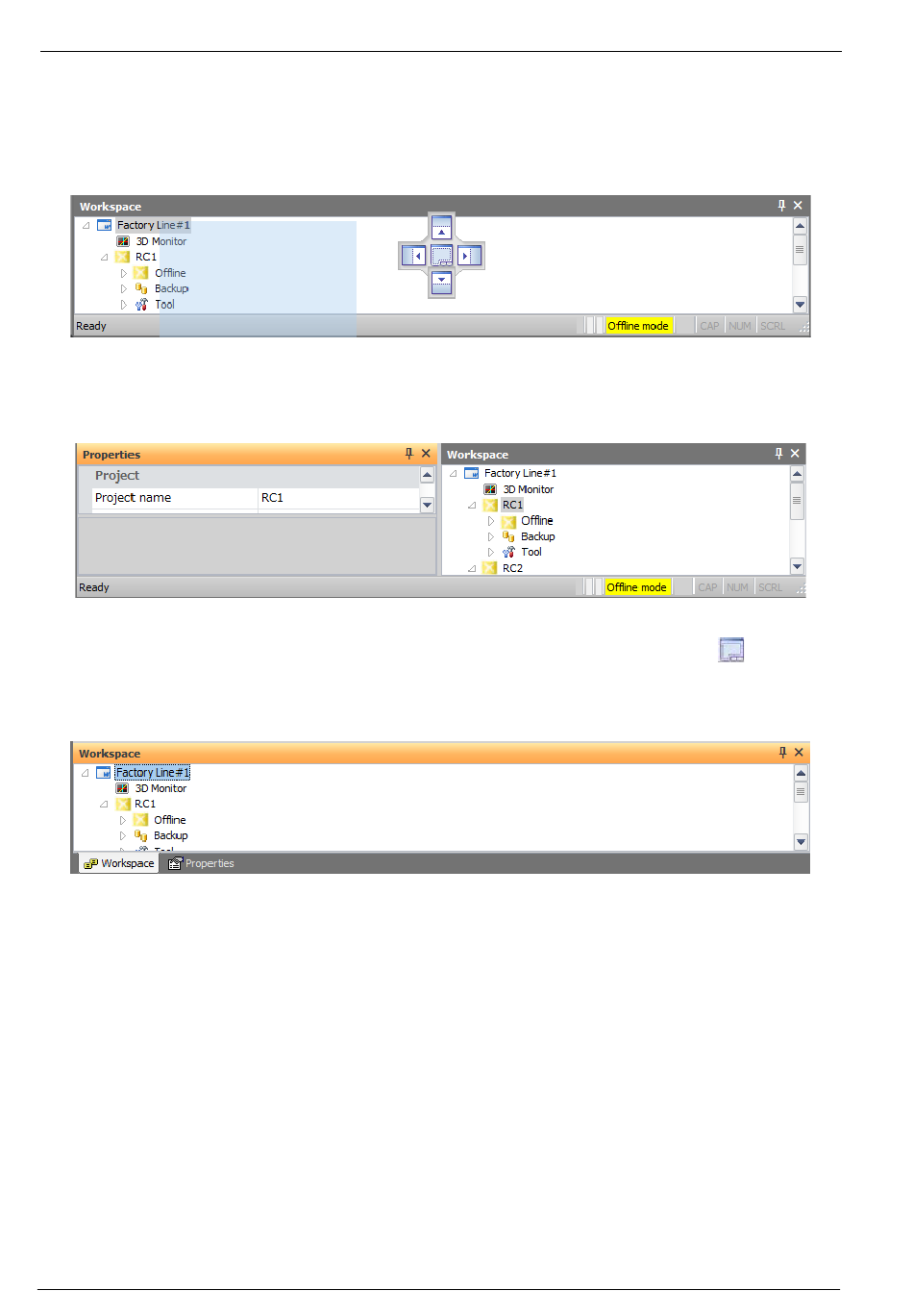

Figure 7-4 When a Window Is Moved Over a Docked Window
The docking window can be docked with it aligned side-by-side with the left, right, top or bottom of the docked
window by dropping the window over one of the marks in this state.
Figure 7-5 When a Window Is Aligned With the Left Side of the Docked Window
Also, the window can be placed overlaying a docked window when it is dropped on top of the mark.
When multiple windows are displayed overlaying each other, the currently displayed window contents can be
switched by changing the selected tab. The currently selected window can be detached and moved by clicking and
dragging the title area of the window.
Figure 7-6 When Docking Windows Are Overlaid
