Connect to a Fabric Interconnect F1-4's Management Module

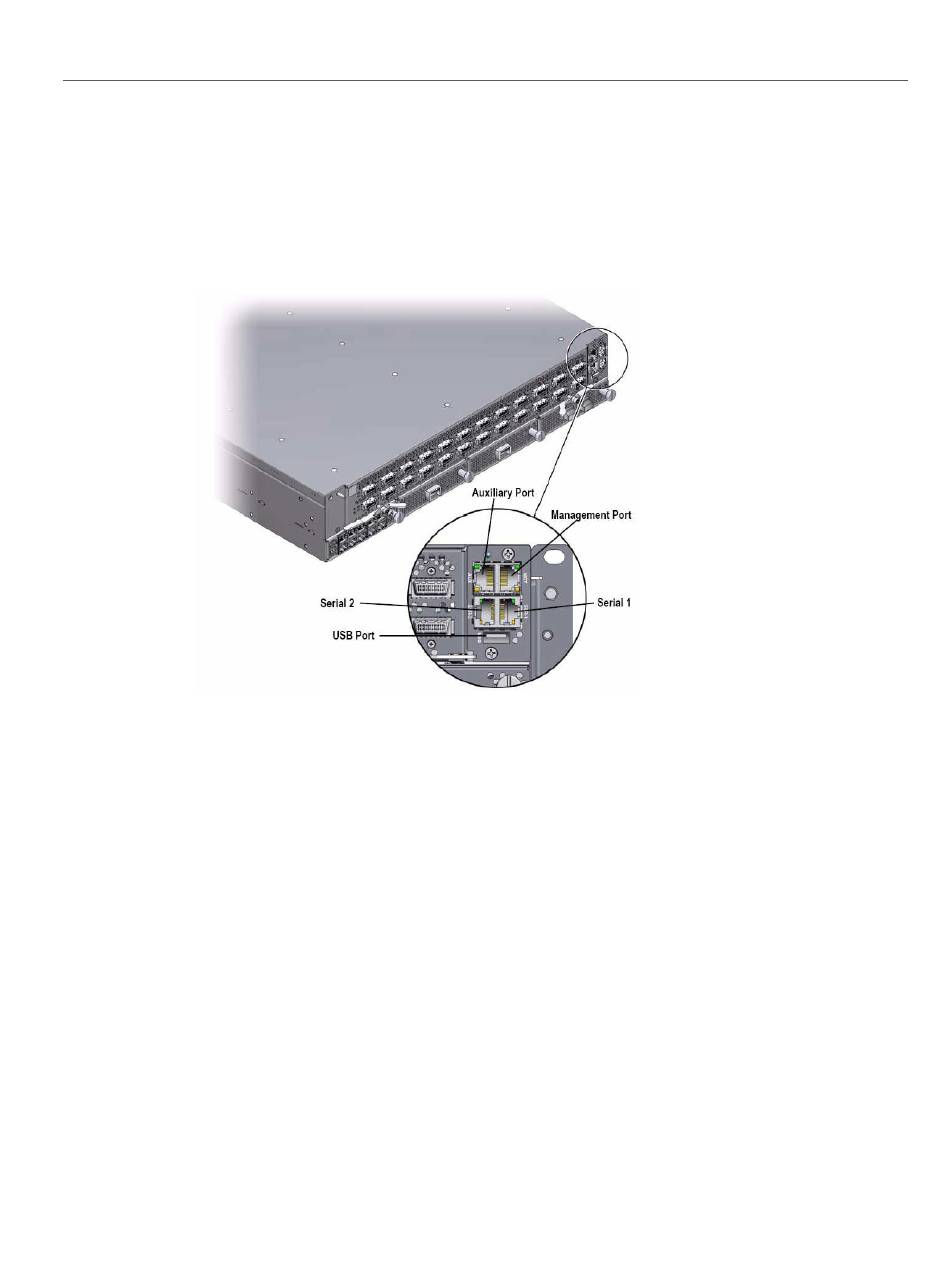

Figure 56, "Fabric Interconnect F1-4 Management Module for Connection to
Management Console," on page
FIGURE 56
There are two ways to connect to the serial port on the Fabric Interconnect Management
module:
Connect directly to the Serial 1 port on the Management module. This
■
step requires an adaptor that supports straight-through CAT-5 cable (or
the equivalent). See
Port" on page
Connect a remote system to the Serial 1 port using a serial console terminal
■
concentrator (for example, Cyclades).
2. Verify that the serial port on your system is set up as follows:
115200 baud
■
8 bits, no parity
■
VT100 encoding
■
88 Oracle Fabric Interconnect Hardware User's Guide • July 2016
88.
Fabric Interconnect F1-4 Management Module for Connection to Management Console
"Connecting the Management Port to a DB9 Serial
86.
