Connecting the Fabric Interconnect to Other Equipment
Fabric Interconnect F1-15 Fibre Channel and Gigabit Ethernet Modules and Connectors

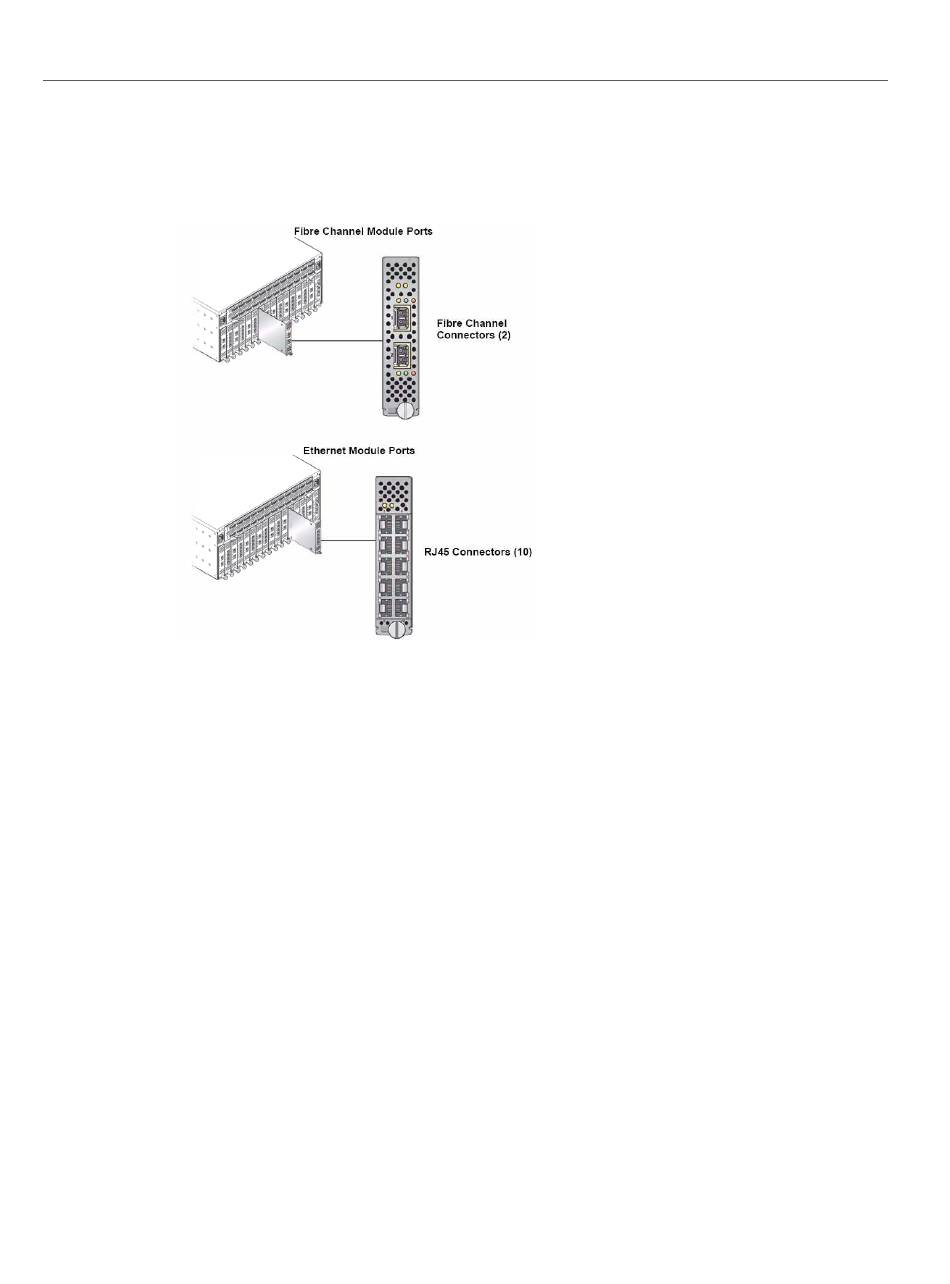

FIGURE 51
Figure 51, "Fabric Interconnect F1-15 Fibre Channel and Gigabit Ethernet Modules and
Connectors," on page 81
shows an example of the 10-Port GE module, but the 10 GE
module (which has one 10 GE port) is also supported.
Figure 52, "Fabric Interconnect F1-4 Fibre Channel Module and Connectors," on page 82
shows the storage and network connections for a Fabric Interconnect F1‐4.
