Understanding Chassis Components and Indicators
Fabric Interconnect F1-15 Front and Rear Panel Components
FIGURE 30
The Fabric Interconnect F1-15 can also support InfiniBand connections at Quad Data Rate
(QDR) speeds. Figure 31, "QDR Fabric Interconnect F1-15 Rear Panel Components," on page
59 shows the Fabric Interconnect F1-15's rear panel with a QDR Fabric Board installed.
The QDR Fabric Board is easily identifiable by the different layout of its 20 physical ports.
The front of a QDR Fabric Interconnect F1-15 has the same standard equipment—for example,
power supplies, fans, and so on are the same between a QDR Fabric Interconnect F1-15 and
DDR Fabric Interconnect F1-15.

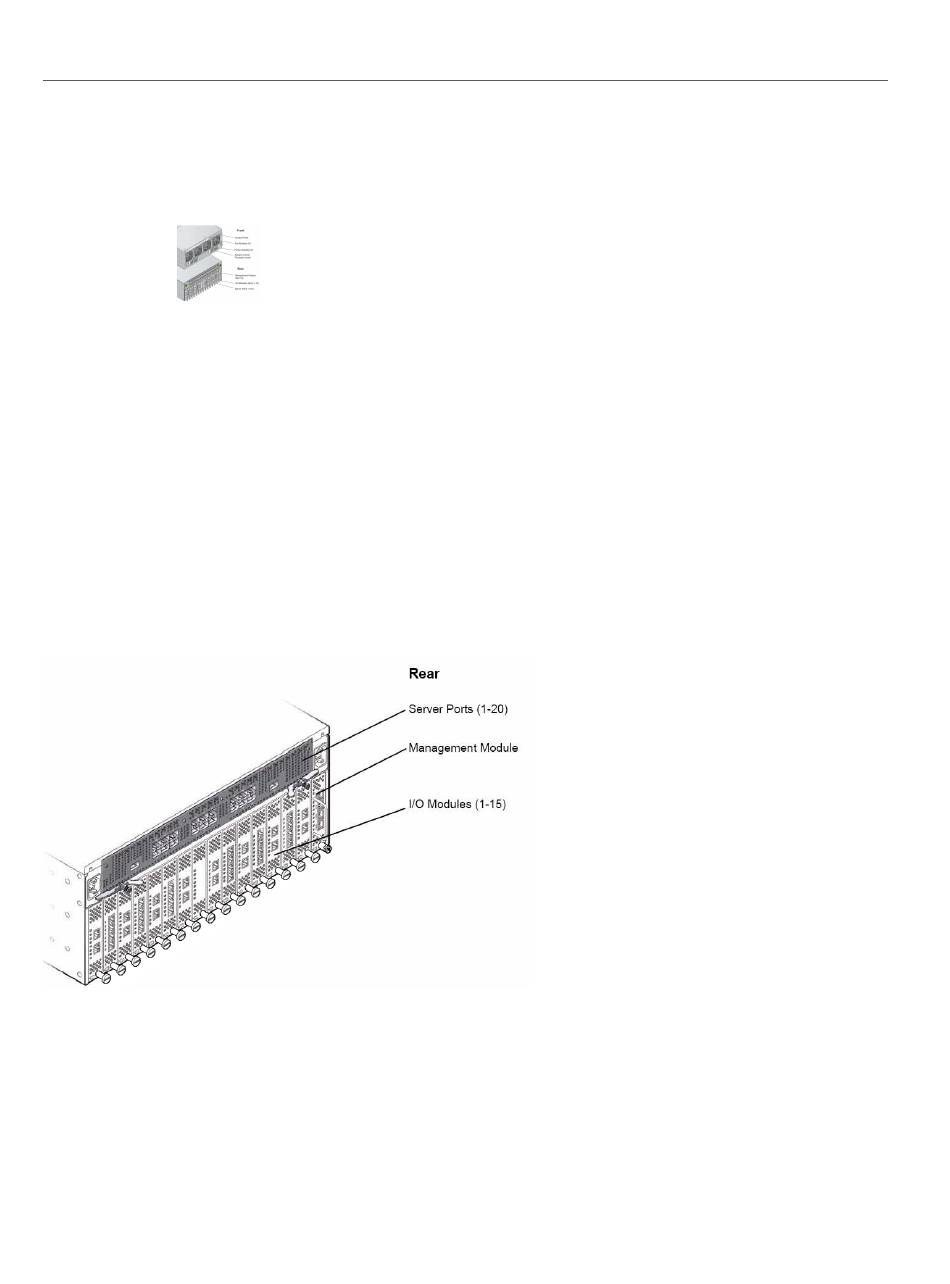

FIGURE 31 QDR Fabric Interconnect F1-15 Rear Panel Components
Figure 32, "Fabric Interconnect F1-4 Front and Rear Panel Components," on page 60 shows
the Fabric Interconnect F1-4's chassis components on the front and rear panels. The following
illustration shows an InfiniBand Fabric Interconnect F1-4 supporting DDR connectivity.
