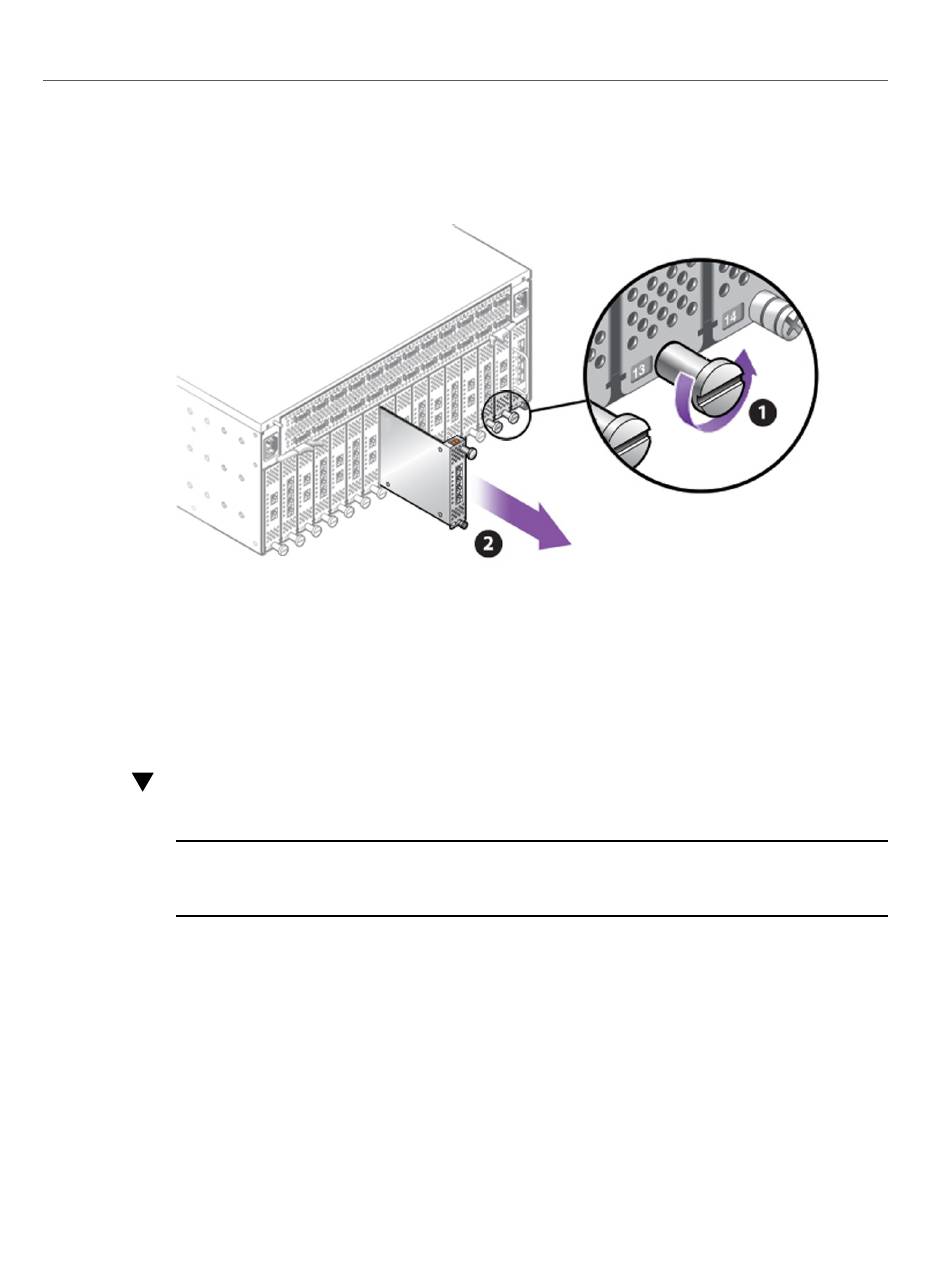

Fabric Interconnect F1-15 I/O Module Locking Handle
FIGURE 91
Grasp the locking handle (2) and slide the module out of the chassis.
4.

Install Fabric Interconnect F1-15 I/O Modules

When re-installing the I/O modules, ensure that the module's sheet metal side is facing
Note -
the left edge of the slot. Also, make sure that the module's top and bottom edges are correctly
aligned with the upper and lower tracks at the left edge of each module slot.
1. Slide the module into the slot until you feel the connectors begin to seat.
2. Carefully, but firmly, press the module into the slot (1) until the module's
faceplate is flush with the other I/O modules. See
Interconnect F1-15 I/O Module," on page
Install Fabric Interconnect F1-15 I/O Modules
Figure 92, "Inserting a Fabric
142.
Performing Service Tasks 141
