Install a Fabric Interconnect F1-4 Front Panel
Assembly
1.
Orient the Front Panel so that the sheet metal side is facing up, and align the left
and right sides of the Front Panel with their guides on the left and right sides of
the chassis.
Holding the lever arms, apply even pressure to both handles and slide the
2.
Front Panel into place on the chassis (1). See
Interconnect F1-4 Front Panel Assembly," on page

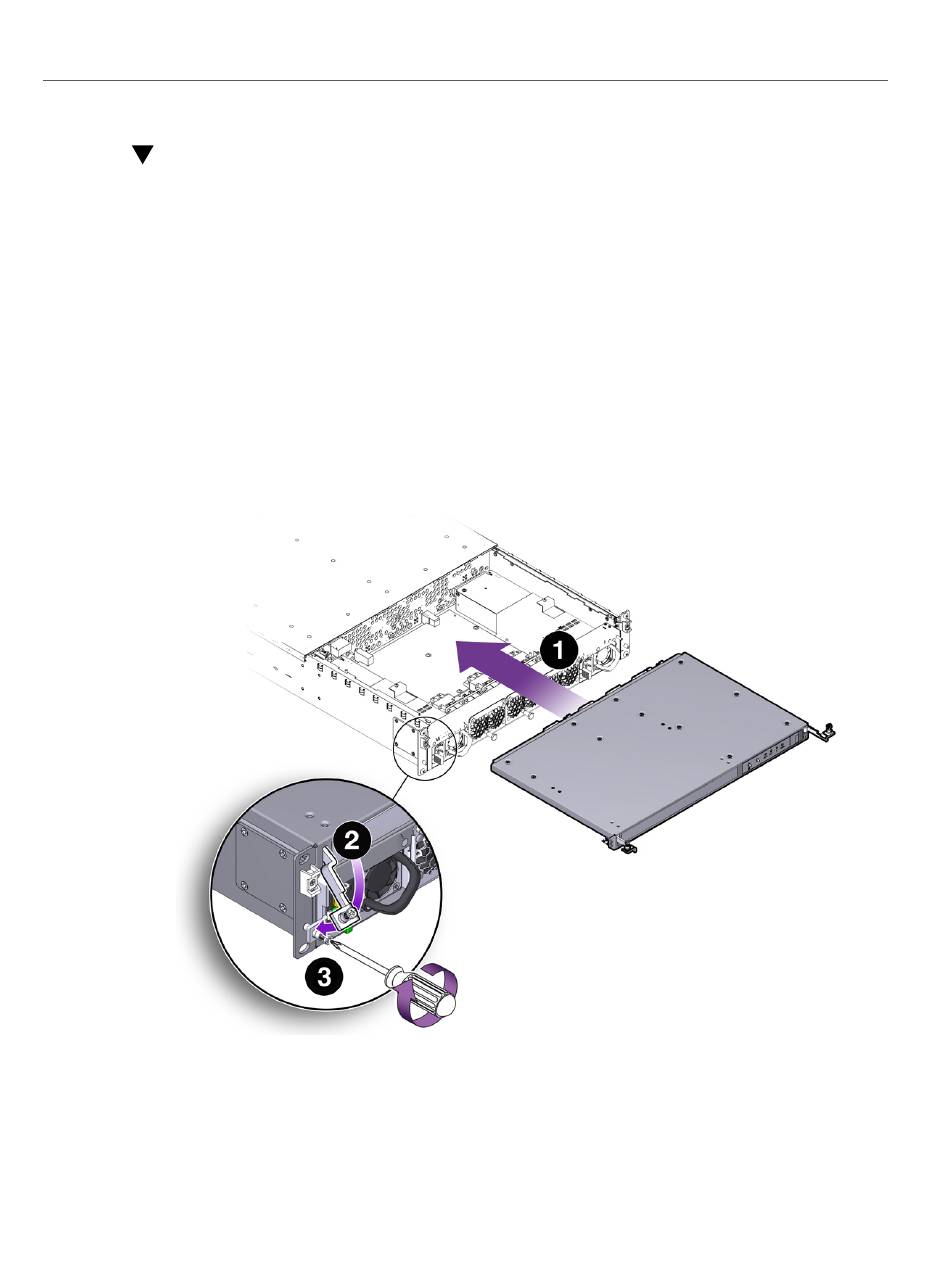

Installing the Fabric Interconnect F1-4 Front Panel Assembly
FIGURE 99
As the Front Panel slides into place, you will feel the gaskets at the rear of the Front Panel make
contact with the chassis sheet metal.
Install a Fabric Interconnect F1-4 Front Panel Assembly
Figure 99, "Installing the Fabric
155.
Performing Service Tasks
155
